Hot sale ESD SMT magazine rack/antistatic pcb rack/adjustable pcb rack

Hot sale ESD SMT magazine rack/antistatic pcb rack/adjustable pcb rack

esd smt magazine rack

antistatic pcb rack

adjustable pcb rack

 SMT ESD Magazine Rack

  1) SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.
  2) Screw and gear adjustment.
  3) Common type (60℃) and heat-resistant type(120℃, 160~200℃) are available.
  4) Surface resistance: 10e4~10e6 Ohm
  5) Base: Conductive plastic or stainless metal

Description

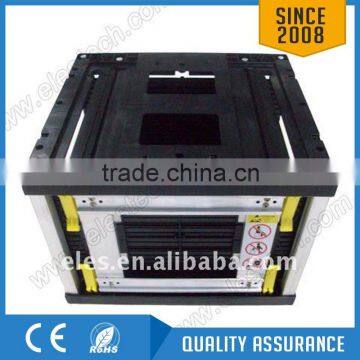

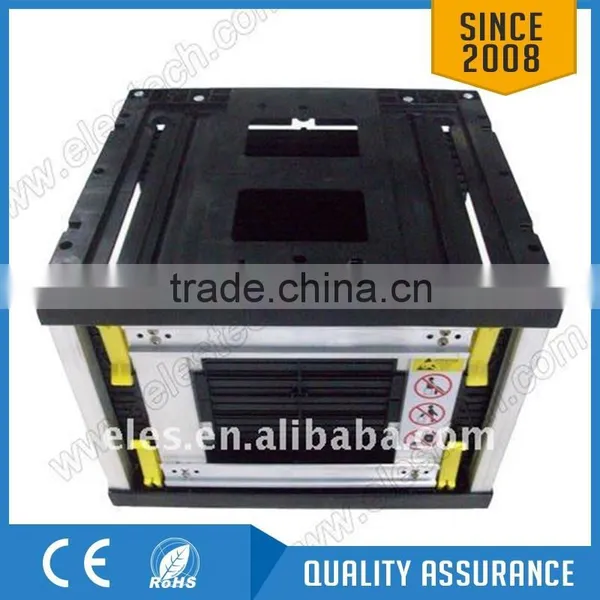

A: Overall Size: 355*320*363mm. 30pcs of PCB Plates can be stored.
B: Overall Size: 355*320*263mm. 20pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(50-250)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal.
Gear track allow easy operation.

Surface resistance: 104~106Ω
Overall Size: 355*315*580mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(80-250)mm
Side guide slot: depth 3.5mm, width 8mm, pitch 10mm
The top and bottom boards are made of plastic. Stationary type.
Adjustable through screws.

Surface resistance: 104~106Ω
Common type and heat-resistance type are available
Overall Size: 355*320*563mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(50-250)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal. Stationary type.
Adjustable through screws.(Allowed to be put in ageing chamber.

Surface resistance: 104~106Ω
Resistant to 120℃
Overall Size: 460*400*563mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 460*(50-330)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal. Stationary type.
Adjustable through screws.(Allowed to be put in ageing chamber.

Surface resistance: 104~106Ω
Common type and heat-resistance type(120℃ ) are available.
Overall Size: 535*460*570mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 535*(50-390)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal.
Gear track allow easy operation.
