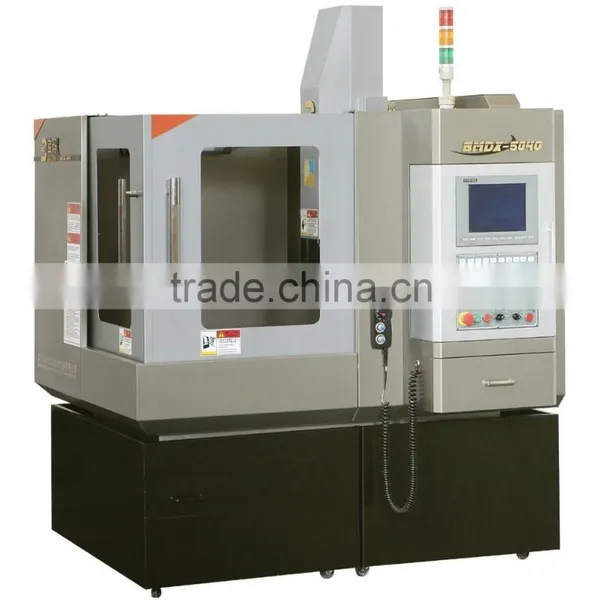

Baoma High Speed Cheap Cnc Milling Machine Bmdx5040

Name: Baoma High Speed Cheap Cnc Milling Machine Bmdx5040
Brand: BAOMA
SKU: 106964317
Availability: InStock

US$ 0.0001 - 77,777 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

BAOMA

Suzhou Baoma Numerical Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name BAOMA

Model Number BMDX5040

Type Vertical

CNC or Not CNC

Voltage Customized

Power(W) 14/16Kw

Dimension(L*W*H) 1894*1910*2050mm

Weight 3000kg

Certification CE;ISO9001,ISO14001

Warranty 12 months

After-sales Service Provided Overseas third-party support available

Product Description

cheap cnc milling machine
1.high speed spindle: 24000RPM
2.China CNC milling machine at lower price
3.CNC Engraving

CNC Engraving & Milling Machine BMDX5040 Parameters

Travel/space	X/Y/Z axis travel	mm	400/500/210
Table upper surface to spindle nose end face		mm	80 - 290
Accuracy	Positioning	mm	±0.005/300
Accuracy	Repeatability	mm	±0.003/300
Table	Table dimension	mm	420x600
	Max. load on table	Kg	200
	Power(X Y Z)	Kw	0.75,0.75,0.75
	T shape groove	mm	14TxP80x5
Spindle	24000rpm / 2.2 kw / ER20 (tool diameter 3.175-12)
Feeding speed	Rapid speed(X/Y/Z)	mm/min	7500
Feeding speed	Cutting speed(X/Y/Z)	mm/min	6000
Outer size and weight	Machine height	mm	1750
	Floor space	mm	1600x1560
	Net weight	Kg	2000
Total input power		Kw	12

The opening protector design makes big work piece loading easily.

In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.
X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine to get the best precision and make the position error to the lowest.
The slop bed and the big capacity water tank make scrap to be cleaned easily.
The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.
Excellent design make the machine so good operation.
Using the advanced cooling-water machine to cool down the spindle, make sure the spindle keeping long life and machining having high precision.

Our company offer Taiwan SYNTEC, LNC and Germany PA system for the customer’s request, and try our best to offer you the best products.

Be able to connect the man-machine communicated interface of Easy view and Digital
Wide range to connect with other equipment
Convenient to communicate through the figural interface
Convenient to renew the software through the mobile hard disk
Control several axes in different synchronous way by PLC
The function of video mending
Nice panel design and steady controller design
