Specifications

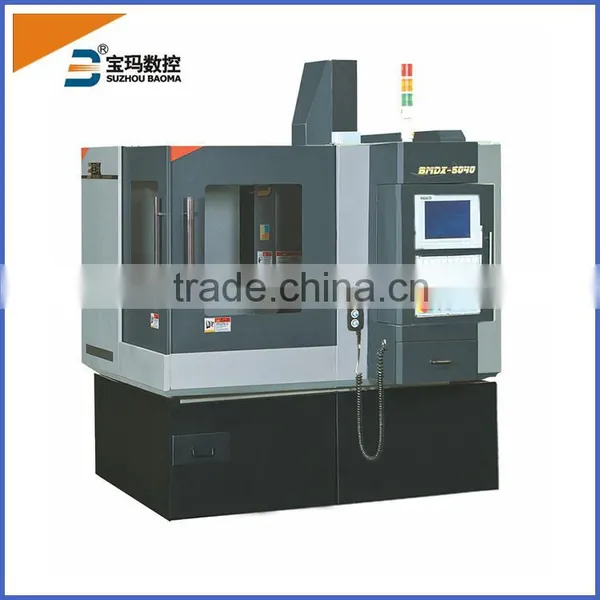

Mini Cnc Machine Center BMDX5040a) high speed spindle: 24000RPM
b) lower price
c)CNC Engraving
a)Product Description
CNC Milling & Router (BMDX5040)
X/Y/Z axis travel 500/400/260mm
Table upper surface to spindle nose end face 400mm
Accuracy
Positioning: 0.01mm
Repeatability: 0.005mm
Table
Table dimension: 550*700mm
Max. Load on table: 400Kg
Power(X Y Z): 0.85, 0.85, 0.85Kw
T shape groove: 14T*P100*3mm
Spindle
3000-24000rpm(3-5kw) ER25(tool diameter 3.175-16)
9000-18000rpm(8kw) ER32(tool diameter 3.175-20) BT30 optional
9000-15000rpm(10kw) ER32(tool diameter 3.175-20)
Feeding speed:
Rapid speed(X/Y/Z): 10000mm/min
Cutting speed(X/Y/Z): 6000mm/min
Outer size and weight
Machine height: 2150mm
Floor space: 1600*1800mm
Net weight: 2600Kg
Total input power
14-16Kw(adopts 3-5Kw spindle)Kw
20Kw(adopts 20Kw spindle)
22Kw(adopts 10Kw spindle)
FEATURES:
Control System | |
|
|
Pump and Tool Box | |
|
|
PACKING: | |
|
|
c)CERTIFICATE
ISO14001:2004
GB/T 24001-2004
ISO9001:2008
GB/T 19001-2008
CE CERTIFICATE:
SGS TEST
OUR WORLD EXPOSITION
EGYPT:
BRAZIL:
BEI JING:
INDIA:
