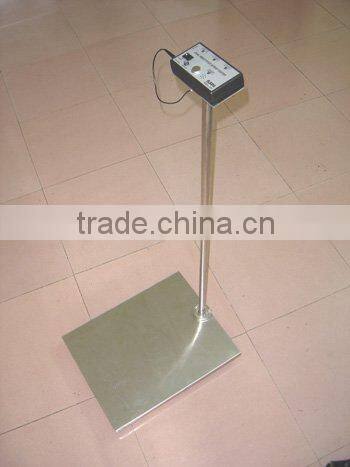

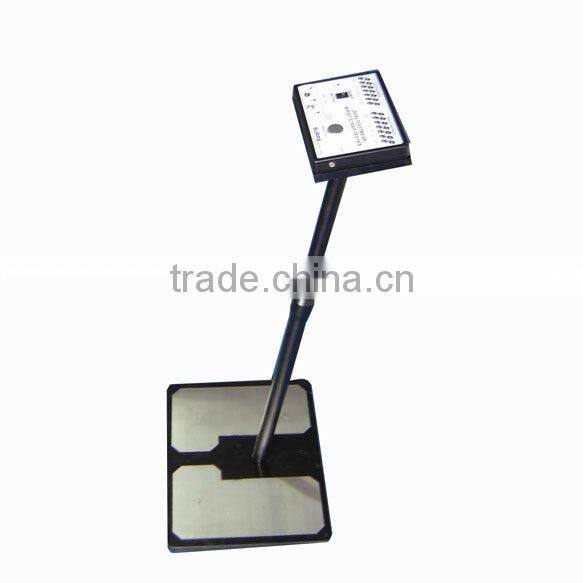

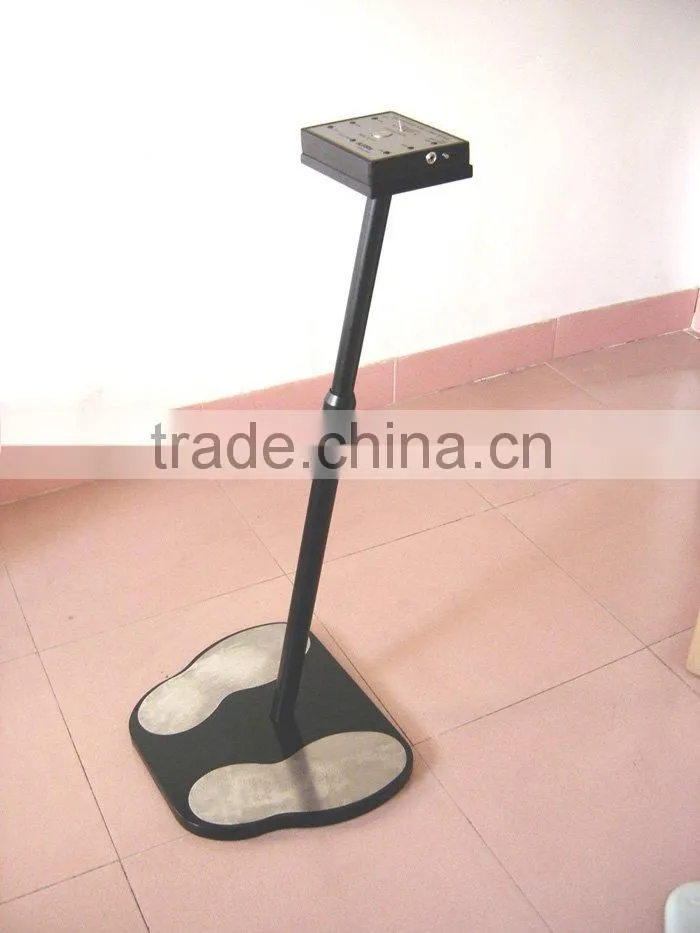

Dual Wrist/foot strap tester,ESD tester
tester is for measuring resistance (including the human body comprehensive, wrist belt and the resistance of the shoes, etc) and design with intuitionistic leds shows a prerequisite. This instrument can to human body comprehensive resistance than 109 and
Less than 105, testing and alarm, a single foot human radiocomm.tester made up 750K Ω - 10M Ω circuits (used to test the wrist belt) and 750K Ω - 100M Ω circuits (used to test shoes), this instrument is to test the wrist belt and shoes ideal choice.
Testing value sheet
|
RANGE ITEM LED DISPLAY |
Anti-static shoes |
Alarm voice |
HI |
R>100MΩ |
YES |
PASS |
R≥750KΩ R≤100MΩ |
NO |
LOW |
R<750KΩ |
YES |
LOWBATT |
Voltage<7V,please replace battery |
|
Testing wrist strap,anti-static shoes/heel grounder
Dial "Selective switch"to "WRSIT STRAP”&FOOTWEAR" key,connect wrist strap and plug socket or alligator clip into the outlet,then press”PRESS TO TEST”key,the value shown on the top middle place is the wrist strap resistance.
Testing value sheet
|
RANGE ITEM LED DISPLAY |
FOOTWEAR |
WRIST STRAP |
Alarm voice |
HI |
R>100MΩ |
R.>10MΩ |
YES |
PASS |
R≥750KΩ R≤100MΩ |
R≥750KΩ R≤10MΩ |
NO |
LOW |
R<750KΩ |
R<750KΩ |
YES |
LOWBATT |
Voltage<7V,please replace battery |
||
