400HZ Static Frequency Converter Three-phase 60kVAwith advanced IGBT/SPWM technology,wide scope resistant design

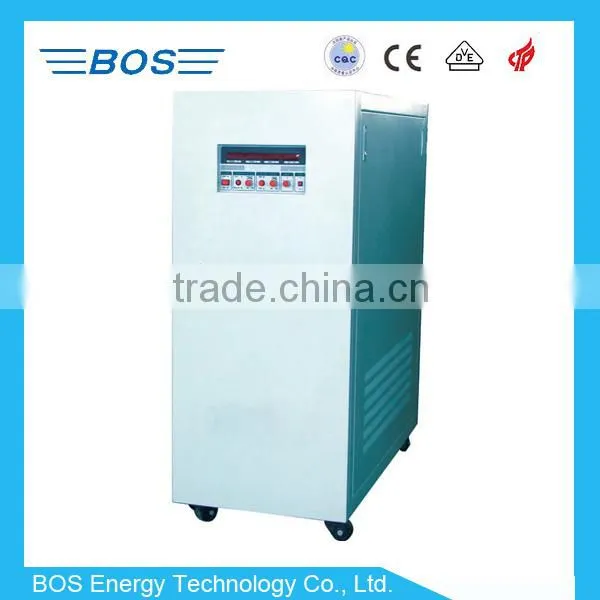

400HZ Static Frequency Converter Three-phase 60kVA
1. Rating input voltage: Input power supply is 380V/50HZ factory electricity.
2. Rating output voltage: we can supply many single phase/triphase grades according to the requirement of the clients.
3. Rating output frequency: 60HZ/50HZ(can change freely) or400Hz
4. The precision and output voltage stability: The allowance of the output frequency≤0.01Hz, stability
5. The stability of the output voltage: static state
6. 50%load output voltage transient changes :
7.variable-frequency power sources overload capacity:150% 10minutes, 200% 10s
8. Output voltage wave THD:THD≤1.2~2.8%
Model |
33450 |
33600 |
331000 |
||
Capacity |
45kVA |
60kVA |
100kVA |
||
Outputlimit currency |
L: 126A |
L: 168A |
L: 276A |
||
|
H:63A |
H:84A |
H:138A |
||
Circuit model |
IGBT/SPWM pulse width adjustment mode |
||||
Output frequency |
50Hz/60Hz 45-65Hz |
||||
Load stability |
≤±1% |
||||
frequency stability |
fixed-frequency≤±0.01%,frequency modulation≤±0.1% |
||||
Input voltage |
380V±10% |
||||
Phase |
three phase four wire |
||||
Wave distortion |
≤3% |
||||
Output |
Wire voltage |
low-grade:0-260V continuous-tuning; high-grade:0 - 520 V continuous-tuning |
|||
|
Phase voltage |
low-grade:0-150V continuous-tuning; high-grade:0 - 300 V continuous-tuning |
|||
Three phase unbalance |
Phase 120±2%;phase difference less than rated value 3% |
||||
Reaction time |
≤2mS |
||||
|
DPI ( dots per inch ) |
frequency meter |
0.1Hz |
|||
|
Voltage meter |
0.1V |
|||
|
Current meter |
0. 1A |
|||
|
Power meter |
0.1W |
|||
Ammeter display |
Frequency, voltage, current, power or PF 4 number display |
||||
Protection function |
over voltage, over current, over temperature, over load, short circuit, and automatic alarm |
||||
Insulation reactance |
500Vdc 20MΩ |
||||
Pressure endurance insulation |
1500Vac/5mA/1min |
||||
Cooling model |
Compulsive fan cooling |
||||
Working temperature |
-10℃-45℃ |
||||
Relative humidity |
0-90%(No condensing) |
||||
Altitude |
1500meters |
||||
Dimension (W×L×H)mm |
1160*520*1370 |
1320*600*1490 |
|||
