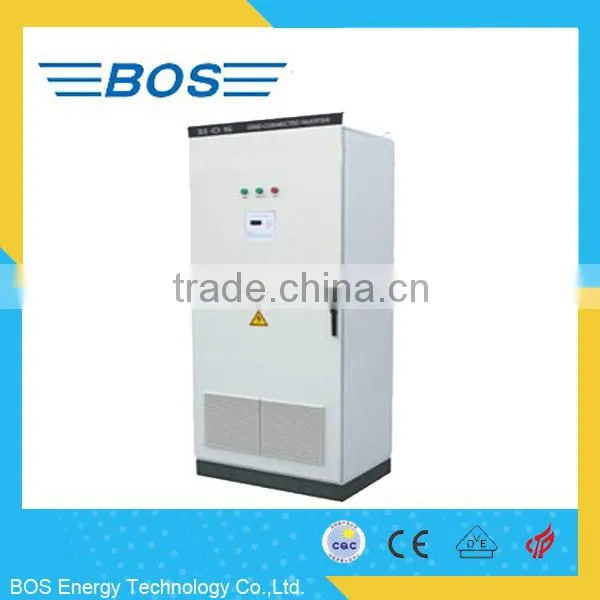

Hybrid Inverter BNSA-20KS(three Inputs Solar Power, Grid, Generator)

Hybrid Inverter BNSA-20KS(three Inputs Solar Power, Grid, Generator) thumbnail-1
Hybrid Inverter BNSA-20KS(three Inputs Solar Power, Grid, Generator) photo-1
US$ 5,000 - 7,000 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BOS
Model Number:
Hybrid inverter BNSA-20KS(three inputs)
Contact Supplier Request Quote Chat Now
Shandong BOS Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BOS
Model Number Hybrid inverter BNSA-20KS(three inputs)
Output Power 1 - 200KW
Output Type Triple
Size 660*610*1560mm
Weight 380KG
Input Voltage 450Vdc-780Vdc 380Vac±15% 400Vac±15%
Output Voltage 380Vac±2%
Type DC/AC Inverters
Output Frequency 50Hz±1%
Output Current 53A

Hybrid Inverter BNSA-20KS(three inputs solar power, grid, generator)

Function feature:

1.Three inputs:one is solar power,another is utility gird for bypass, third is Diesel generator for bypass.

2.when no solar power or solar power is not enough for the load,utility gird will auto works

3.when no solar power and utility grid,Diesel generator should manual start.



Hybrid Inverter BNSA-20KS(three inputs solar power, grid, generator)

Model

BNSA-20KS

isolation model

low frequency isolation

input No.

three inputs

input1   input solar power range

450Vdc-780Vdc

input2   input utility grid range

380Vac±15%

     input3   diesel generator

400Vac±15%

rated capacity

20KW

overload ability

150% 10s

rated output voltage

380Vac±2% 3phase 4wire

rated output frequency

50Hz±1%

Wave distortion rate(THD)

<3%(at rated power)

power factor

>0.8(at rated power)

Max. efficiency

94%

protect function

Protection for input connecting contrary, input lack of voltage, output overload, output short circuit, over load

communication terminal

RS485

working temperature

-20°C~+50°C

humidity

0~95%

humidity

4000m(over 2000s,will derate using)

cooling mode

forced cooling

noisy

≤60dB

protect class

IP20(indoor)

Dimension W*D*H(mm)

660*610*1560mm

Weight(kg)

380
