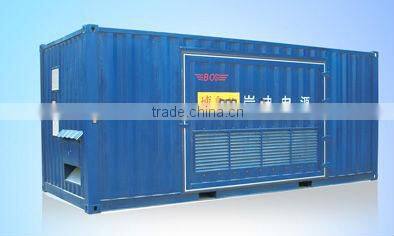

800kva Frequency Converter

800kva Frequency Converter thumbnail-1
800kva Frequency Converter photo-1
US$ 1,000 - 10,000 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BOS
Model Number:
AC60-338000
Contact Supplier Request Quote Chat Now
Shandong BOS Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BOS
Model Number AC60-338000
Output Power Other, 800kva
Output Type Triple
Size 830*3260*2260
Weight 1600kg
Input Voltage 320~460Vac
Output Voltage 0~500Vac
Type DC/AC Inverters
Output Frequency 50/60hz
Output Current 1000A

Specifications

800kva frequency converter
1.Mitsubishi IGBT
2.AC~DC~AC
3.optional DSP control
nnected in parallel



800kva  frequency converter



AC60 series power is a power that change the electric supply into the required voltage and frequency through power converting circuit.Its main characteristic is to supply prue and stable sine wave power output,low harmonic distortion,high-stability frequency and regulation.It can impersonate many of the world of frequency voltage and output characteristics,and cover the whole industry needs,entirely consistent with the design engineer in research and production and testing of the product testing and life, and a simulated tests to a low, import equipment and the production of electricity and other applications.In addition, it will also support the air space and military equipment 400hz
Frequency converter 1phase technic parameter:





model

13060

13100

33150

33200

33300

33450

33600

331000

331500

333000

334500

336000

338000

Capacity

6

KVA

10

KVA

15

KVA

20

KVA

30

KVA

45

KVA

60

KVA

100

KVA

150

KVA

300

KVA

450

KVA

600

KVA

800

KVA

Output limit currency

L:16.8A

L:27.6A

L:41.6A

L:

56A

L:

84A

L:

126A

L:

168A

L:

276A

L:

400A

No

H:8.4A

H:13.8A

H:20.8A

H:

28A

H:

42A

H:

63A

H:

84A

H:

138A

H:

200A

H:

400A

H:

600A

H:

800A

H:

1050A

Circuit model

IGBT/SPWM Pulse width adjustment mode

Output frequency

45-65/50 or 60Hz

Load stability

≤±1%

frequency stability

fixed-frequency≤±0.01%,frequency modulation≤±0.1%

Input voltage

220/230/240V/±10%

380/400/440V±10%

Phase

singlephase

three phase four wire

3phase unbalanced

Phase position120°±2° ; phase separation<3%rating value

Wave distortion

THD≤3%

Output voltage

 Wire voltage:low-grade:0-260Vcontinuous-tuning,high-grade:0-520Vcontinuous-tuning

 phase voltage:low-grade:0-150V continuous-tuning,high-grade:0-300Vcontinuous-tuning

reaction time

≤2mS

Ammeter display

Frequency, voltage, current, power or PF 4 number display

Protection function

Over voltage, over current, over temperature, over load, short circuit, and automatic alarm.

Insulation reactance

500Vdc 20MΩ

Pressure endurance insulation

1800Vac/5mA/1minute

Cooling model

Compulsive fan cooling

Working temperature

-10°C-50°C

Relative humidity

0-90%(Non-condensing)

Altitude

1500 meters

Dimension(W×L×H) mm

660×

400×

700

830×450×1100

1160×520×1370

1320×600×1490

850×1450×1880

1160×1910×1880

1260×2000×1880

830×3260×2260

 800kva frequency converter

.

800kva frequency converter800kva frequency converter
