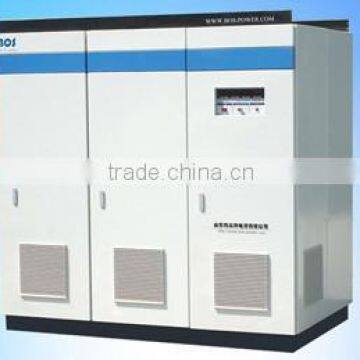

Frequency Converter AC60-333000

Frequency Converter AC60-333000 thumbnail-1
Frequency Converter AC60-333000 photo-1
US$ 1,000 - 27,000 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BOS
Model Number:
AC60-333000
Contact Supplier Request Quote Chat Now
Shandong BOS Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BOS
Model Number AC60-333000
Output Power Other, 201 - 300W, 450KVA
Output Type Triple
Size 850*1450*1880
Weight 850KG
Input Voltage 380/400/440V±20%
Output Voltage high-grade:0-520V
Type Other, AC/AC
Output Frequency 45-65HZ
Output Current 400A

Specifications

Frequency Converter AC60-333000
1.CE
2.AC-DC-AC
3.DSP control
4.Can grid-connected,Max power is 7200KVA

Frequency Converter AC60-333000

Features:

1. Rating input voltage: Input power supply is 380V/50HZ factory electricity.(The AC voltage is allowed to range from 323V to 528V )
2.Rating output voltage: we can supply many single phase/triphase grades according to the requirement of the clients.
3. Rating output frequency: 60HZ/50HZ(can change freely) or400Hz
4. The precision and output voltage stability:  The allowance of the output frequency≤0.01Hz, stability

5. The stability of the output voltage: static state

6. 50%load output voltage transient changes :
7.variable-frequency power sources overload capacity:150% 10minutes, 200% 10s
8. Output voltage wave THD:THD≤1.2~2.8%



model

333000

Capacity

300KVA

Output limit currency

H:400A

Circuit model

IGBT/SPWM Pulse width adjustment mode

Output frequency

45-65/50 or 60Hz

Load stability

≤±1%

frequency stability

fixed-frequency≤±0.01%,frequency modulation≤±0.1%

Input voltage

380/400/440V±10%

Phase

three phase four wire

3phase unbalanced

Phase position120°±2° ; phase separation<3%rating value

Wave distortion

THD≤3%

Output voltage

 Wire voltage:low-grade:0-260Vcontinuous-tuning,high-grade:0-520Vcontinuous-tuning

 phase voltage:low-grade:0-150V continuous-tuning,high-grade:0-300Vcontinuous-tuning

reaction time

≤2mS

Ammeter display

Frequency, voltage, current, power or PF 4 number display

Protection function

Over voltage, over current, over temperature, over load, short circuit, and automatic alarm.

Insulation reactance

500Vdc 20MΩ

Pressure endurance insulation

1800Vac/5mA/1minute

Cooling model

Compulsive fan cooling

Working temperature

-10°C-50°C

Relative humidity

0-90%(Non-condensing)

Altitude

1500 meters

Dimension(W×L×H) mm

850×1450×1880
