Home > Products > FREQUENCY CONVERTER > 200kVA AC power source AC60-332000

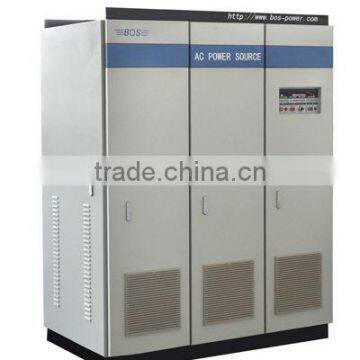

200kVA AC power source AC60-332000
- 500 Set / Sets per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | BOS | Model Number: | AC60-332000 |
Input Voltage: | 380/400/440V±20% | Output Voltage: | high-grade:0-520V | Output Power: | 200KVA |
Output Frequency: | 45-65HZ | Output Current: | 520A |
Product Description
Specifications
200KVA AC power source withIGBT ,SMPS,radiator,electrolysis,absorptance capacitance ,driver board,copper plate.
Features: |
model | 332000 |
Capacity | 200KVA |
Output limit currency | H:28 |
Circuit model | IGBT/SPWM Pulse width adjustment mode |
Output frequency | 45-65/50 or 60Hz |
Load stability | ≤±1% |
frequency stability | fixed-frequency≤±0.01%,frequency modulation≤±0.1% |
Input voltage | 380/400/440V±10% |
Phase | three phase four wire |
3phase unbalanced | Phase position120°±2° ; phase separation<3%rating value |
Wave distortion | THD≤3% |
Output voltage | Wire voltage:low-grade:0-260Vcontinuous-tuning,high-grade:0-520Vcontinuous-tuning phase voltage:low-grade:0-150V continuous-tuning,high-grade:0-300Vcontinuous-tuning |
reaction time | ≤2mS |
Ammeter display | Frequency, voltage, current, power or PF 4 number display |
Protection function | Over voltage, over current, over temperature, over load, short circuit, and automatic alarm. |
Insulation reactance | 500Vdc 20MΩ |
Pressure endurance insulation | 1800Vac/5mA/1minute |
Cooling model | Compulsive fan cooling |
Working temperature | -10°C-50°C |
Relative humidity | 0-90%(Non-condensing) |
Altitude | 1500 meters |
Dimension(W×L×H) mm | 1160×520×1370 |
