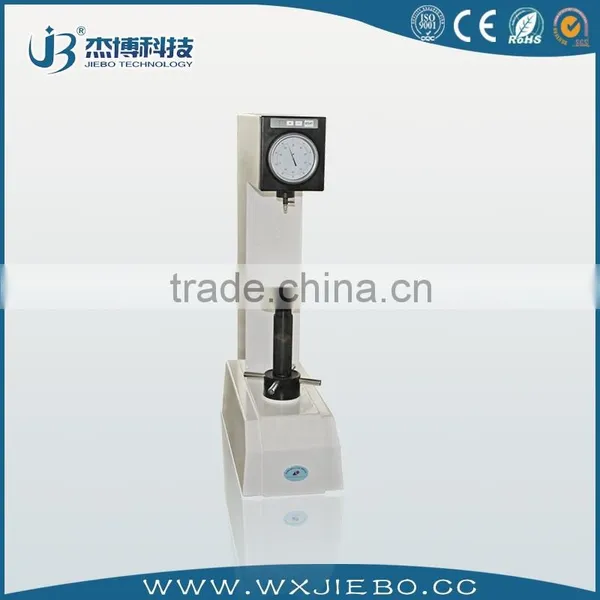

Advanced Electric tablet Rockwell hardness tester JIEBO manufacturer
Model thr-150m is design used to test special metal materials Rockwell hardness semi-automatic Rockwell hardness plan. Test, the Netherlands, on force is finished unloading, easy operation, Wide range, simple operation, etc.
Standard Accessories:
Name | Quantity | Name | Quantity |
Diamond Rockwell Indenter | 1 | Diameter 1.5875mm Ball Indenter | 1 |
Hardness block (HRC High Low 2, HRB 1) | 3 | Large, Medium, “V” shaped Testing Table | Each 1 |
Weights(A,B,C) | Each 1 | Plastic Dustproof cover | 1 |
Manual | 1 | Product certificate | 1 |
Model | THR-150M |
Indication of Hardness Value | Dial |
Max Height of Specimen | 175MM |
Indication of Hardness Value | Dial display |
Duration time | 0-60s |
Carried Standard | GB/T230.1 GB/T230. Chinese Standard, JJG112 Inspection Rule |
Distance of Indenter to outer wall | 160m |
Preliminary Testing force | 10kgf(98.07N) |
Testing force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Rockwell Scale | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
Hardness measuring range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
Power supply | AC220V+5%,50-60Hz |
Overall Dimension (mm) | 520*240*700 |
Net weight | About 55Kg |
Advanced Electric tablet Rockwell hardness tester JIEBO manufacturer
