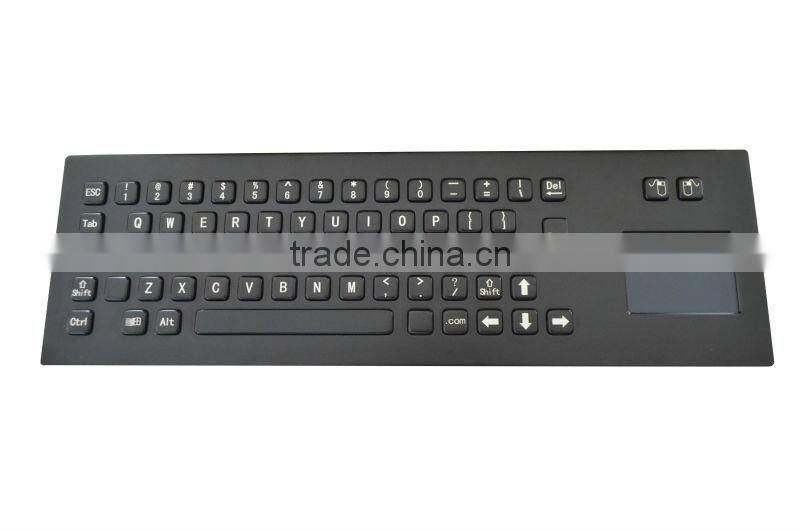

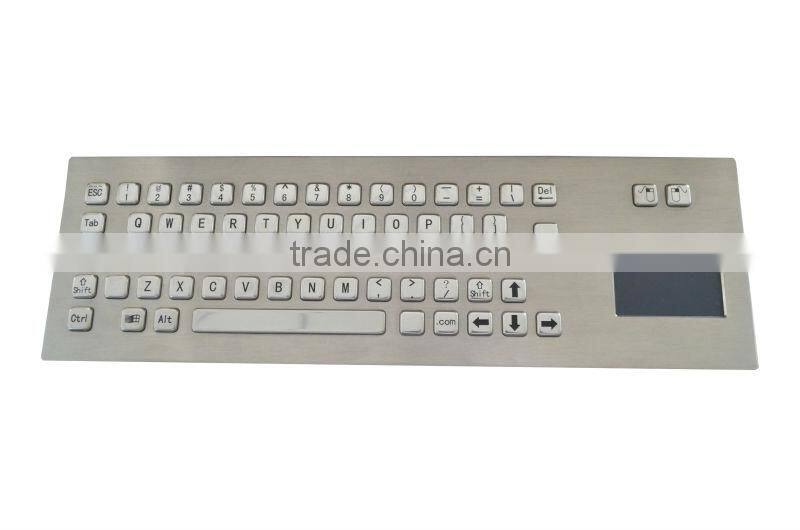

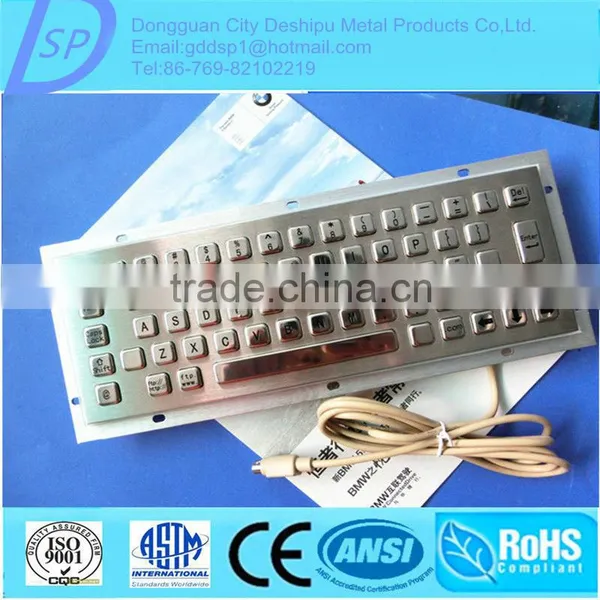

Industrial Waterproof Metal Keyboard Case
64 Keys vandal proof IP65 industrial stainless steel keyboard with integrated 38 mm stainless steel trackball and rear plating mounting solution
lThis Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas,
lIdeal for applications in the harshest conditions,it meets NEMA 4, 4X and IP 65 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.
lPS/2 or USB connector is available.
lAll international language lay-out are optional.
lIt is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX
Dimension: 300*100mm(front panel)
MECHANICAL DATA
- keys: 64 keys, super quality SUS304 brushed stainless steel
- Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
- Stroke travel: 2.0mm
- Switch life: more than 1 million of per key

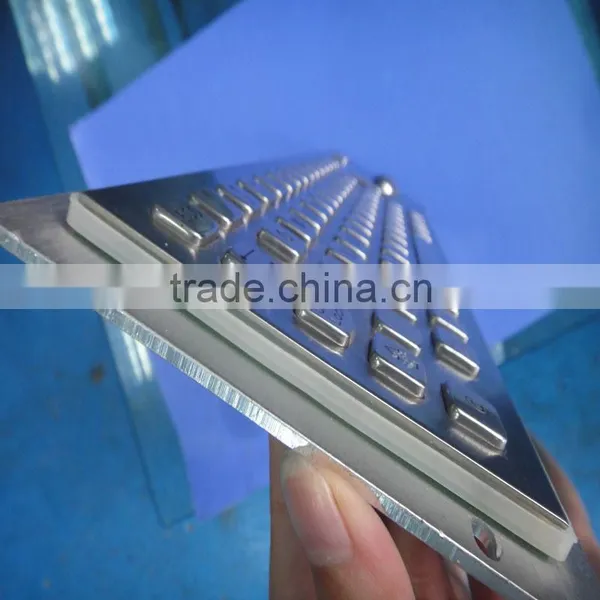

- Front panel: made of 1.5mm thickness super quality brushed stainless steel
- Back Plate:3.0mm thickness brushed & silver oxidized aluminium
- Customized layout is available
- G.W.:2.0 KGs
ELECTRICAL DATA
- Supply Voltage:5.0V DC±5%
- Current Rating: appr. 30mA
- EMC Standard: It is compliance with the council EMC directive 2004/108/EC
- EN55022: 2006+A2:2010
- EN55024: 1998+A1:2001+A2:2003
- Lifespan > 5 years
ENVIRONMENTAL ADAPTABILITY
- Operating temperature:-20°C to +60°C
- Storage temperature: -30°C to +70°C
- Operating RH: 20-95%
- Atmospheric pressure: 60-106Kpa.
RELIABILITY
- RoHS Compliant, CE and FCC, ESD
- Protection Level: IP65(front panel)
- Vandal resistant: IK10
- Key Lifespan >10 million actuations
- MTBF >5,0000H
- MTTR <30min
Basic Instruction1.Support WIN98/WIN2000/WIN XP System ply with ISO/IEC 9995GB/T14081 standard 3.Keyboard made of high quality stainless steel4. Dustproof, waterproof, shake-proof and vandal proof
