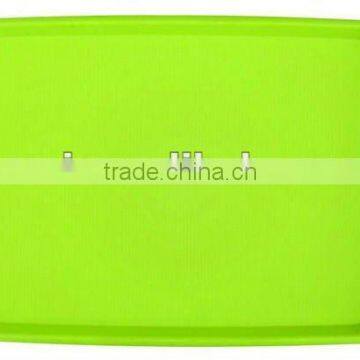

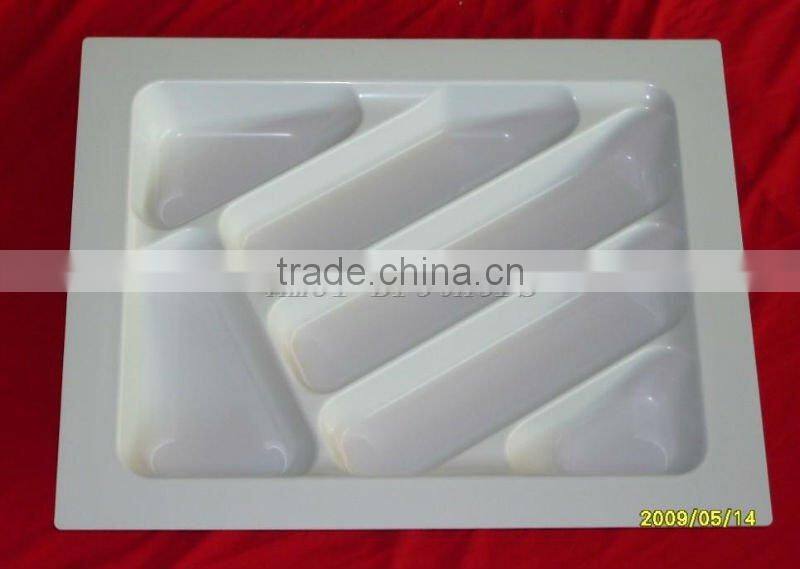

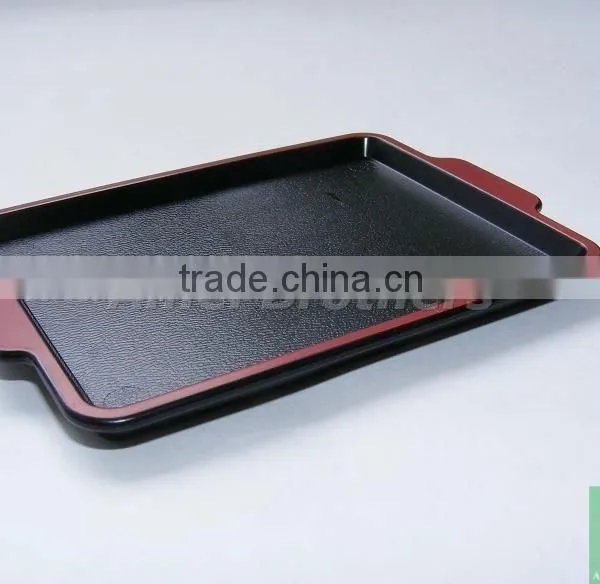

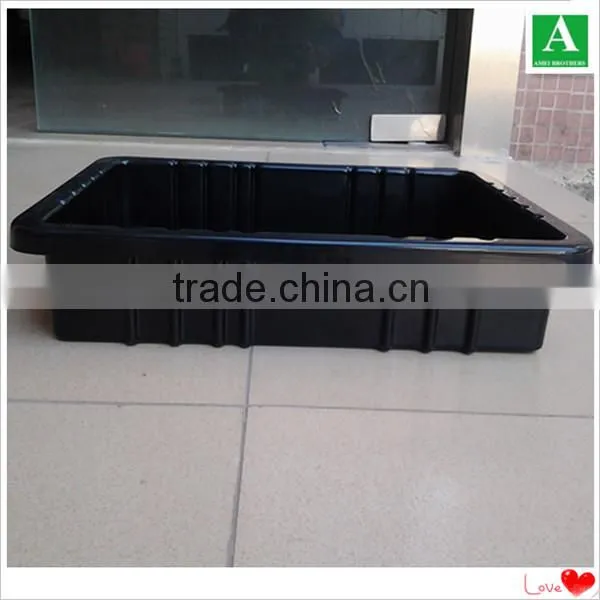

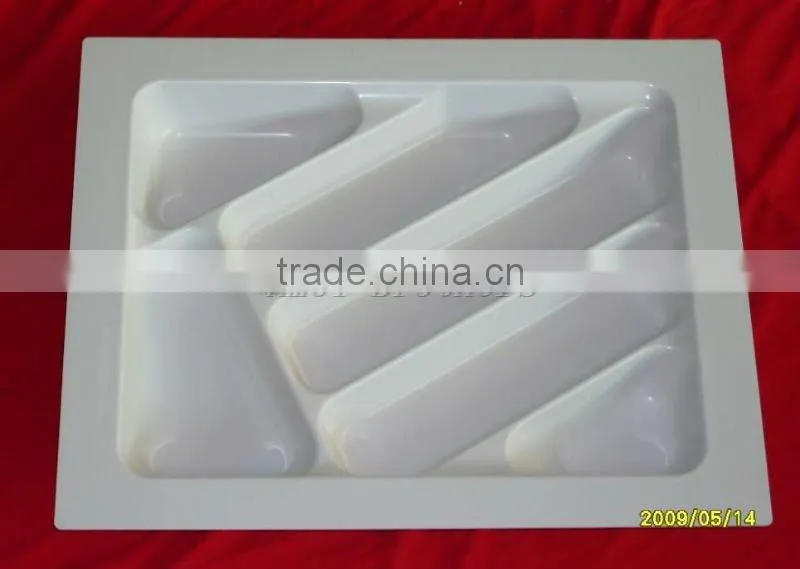

2016 OEM design Thick PET blister tray ,vacuum thermoforming for sale
Thick PET blister tray
vacuum forming blister tray
products details:
item name | vacuum forming tray for serving ,HQ-160 |
color | any color |
material | HIPS,PMMA,PVC,PET,PETG,PC,etc. |
thickness | the max is 10mm |
size | the max is 3000*1500*800mm |
process type | vacuum forming |
I. What's vacuum forming?
Vacuum forming is a process in which a thermoplastic sheet is heated to the appropriate temperature, stretched around or into a mold or pattern, and conformed to the mold by applying vacuum pressure between the mold surface and the plastic sheet. Because heating of the material to be formed is required, vacuum forming is considered a thermoforming process.
II. Vacuum Forming Machined process:
1. Extruding plastic sheet: | ABS, HIPS, PP, PE, PC, PMMA resin granules are extruded or co-extruded into thermoplastic sheet or plate that textured, smooth, gloss or matt, fire retardant and UV resistant |
2. Vacuum forming: | After being heated, the plastic sheet is stretched onto or into a mould, and held against the mold by applying vacuum between the mould surface and the sheet to form designed shapes. |
3. Cooling to keep shape: | Once formed the plastic need to cool before being released from the mould. To speed up the cooling cycle, fans are fitted and activated once the plastic part is formed. |
4.Machine large products: | Our machine could be restructured to make larger plastic vacuum forming plastic products, with maximum dimensions of 3000*2000*800*10mm (L*W*H*T) |
5. Trimming edges: | Extra material is firstly trimmed before more accurate processing. Sawing is often used in the stages. Polishing is made additionally to smooth the edges. |
6. Drilling holes: | Drilling often follow the trimming. Other post forming processes include decoration, printing, strengthening, reinforcing and assembly. |
7. CNC Processing: | For more accurate and faster speed vacuum forming plastic products processing, CNC is often used. The machine is computer programmed to select correct cutting tools and angle to suit each area. |
8. Examination and checking: | Before packaging, all our vacuum forming plastic products will be carefully checked in terms of dimensions, surface finish, strength, color requirements and so on. |
9. Cleaning and Packaging | All vacuum forming plastic products are cleaned before packaging. Products are wrapped with plastic film to prevent scratches and cartoon boxes are used or other methods are applied as required. |
About us:
Amei Brothers is a professional vacuum forming products manufacturer in Shenzhen. Our professional engineer can make products and mould design by software CAD. UG. PROE. Solidwork and Catia according to your request.The max size we can do is 3000*1500*800mm.The thickness can reach 10mm.The materials include PMMA, ABS, PP,HIPS,PVC, PE, PET, PETG, etc. Our plastic vacuum forming products are widely applied in toy, catering auto, mechanism, household appliance, tourism, printing, medical equipment, architecture, touring, advertising, furniture etc.We can also produce good according to your design.
If you have your own design,pls tell us the information as follows:
1.The material you can choose: ABS ,PMMA,PE,PP,PET,PETG,HIPS,PVC, or PC,etc.
2.The thickness of the material:0.14-10mm are all acceptable ,you can choose within this range
3.The specifications of the product (L*W*H)
4.The color of the material (if you have your own logo ,pls tell us how many colors the logo includes)
5.Pls also tell us the quantity you want to order
(of course, it must surpass our MOQ)
6.It would be appreciated if you could provide us 3D drawings. If you don't have 3D drawings, pls send your 2D drawings and actual picture to us. Thanks !
Welcome to order!
