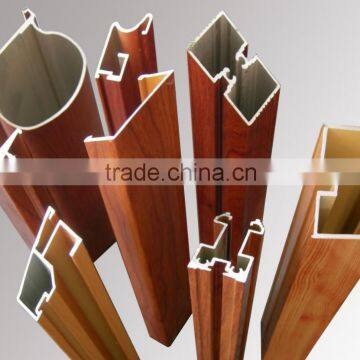

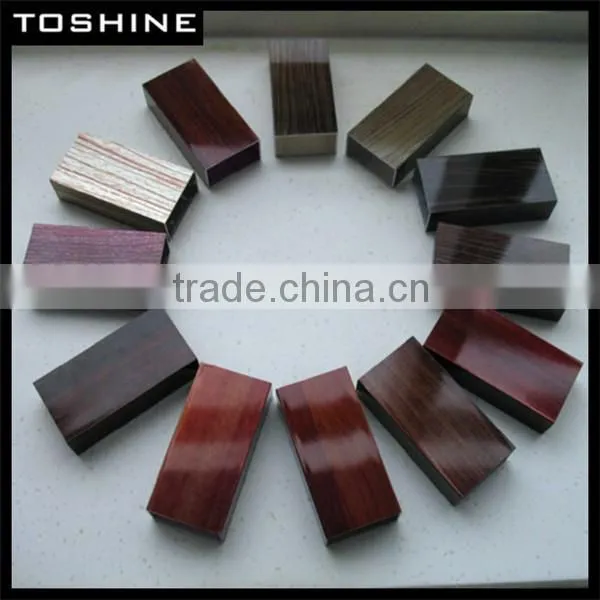

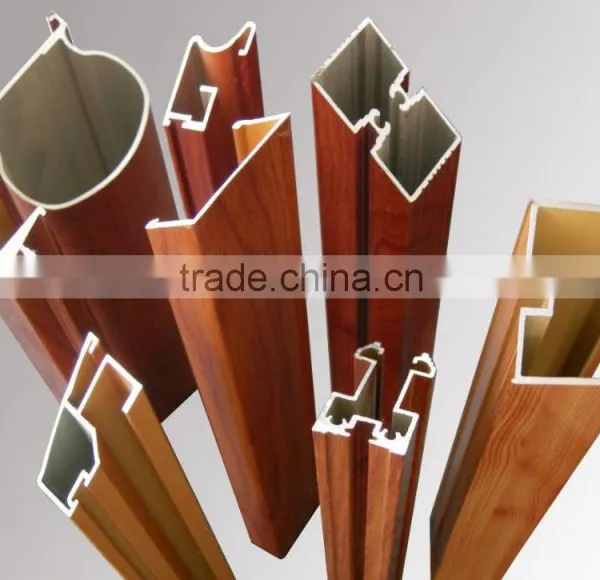

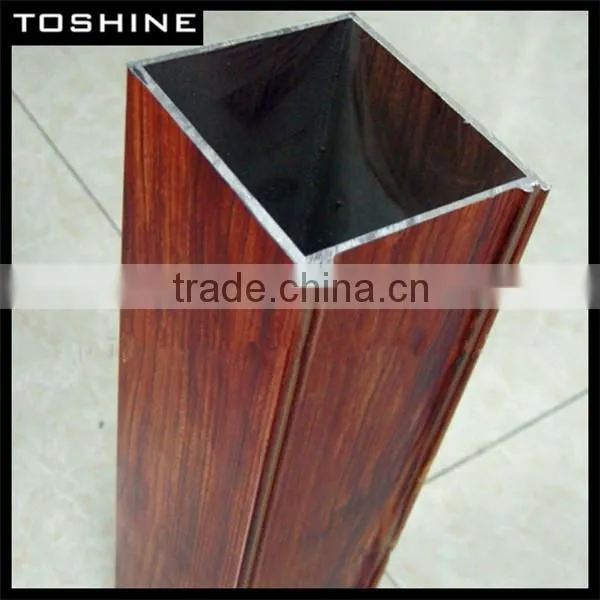

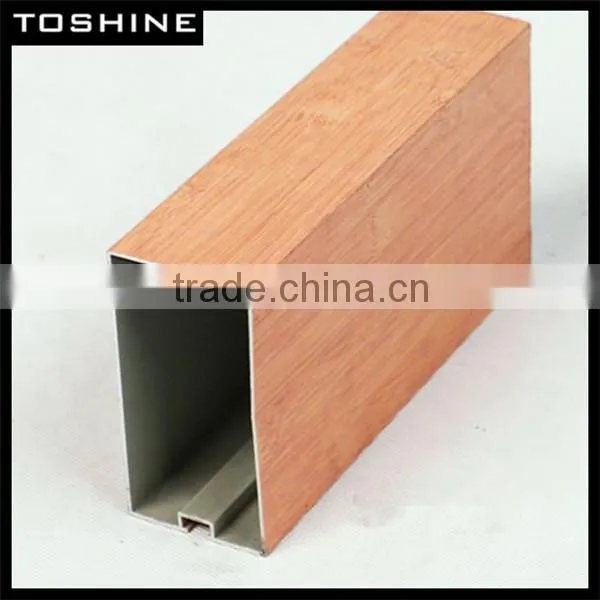

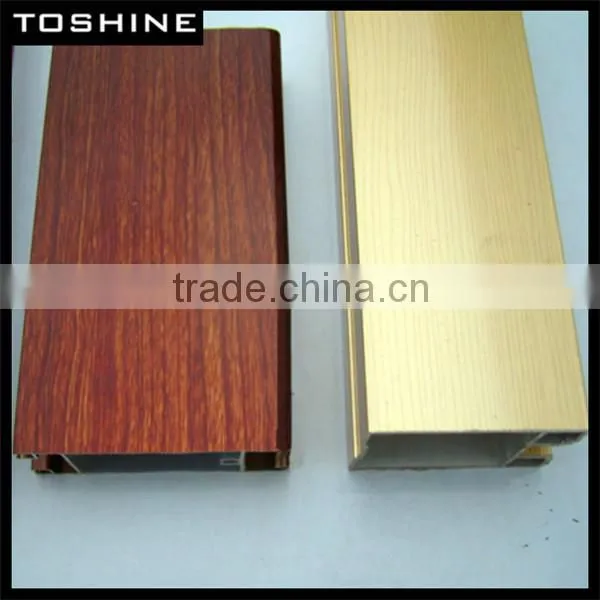

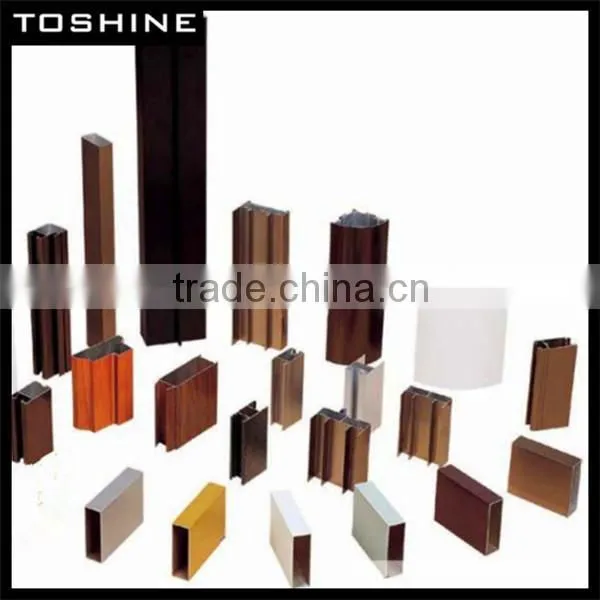

6000 series aluminum extrusion sections with wood grain surface
- 10000 Ton / Tons per Month
- Dalian
- T/T Credit Card
Product Details
Place of Origin: | Liaoning, China | Grade: | 6000 Series | Temper: | T3-T8 |
Application: | Other, Industrial,windows and doors,Radiator,LED,decoration,solar,Architectur | Shape: | Other, square,T-profile,angle,flat | Alloy Or Not: | Is Alloy |
Model Number: | LA521 | Brand Name: | Toshine |
Product Description
roduct Description
1. Brief Description of Aluminum Profile
Grade | 6000 Series |
Temper | T5—T6 |
Surface treatment | mill finish, anodizing, powder coated, sandblasting, electrophoresis etc |
deep processing | cutting, drilling, punching, bending etc |
Colour | silvery white, black, golden, champagne, dark bronze or according to your requirement |
Shape: | Square, Round, Flat, or according to customers' drawings |
Packing details | 1.EP Paper inside for each profile separate then craft paper outside 2.EP Paper inside for each profile separate then carton paper then pallet 3.wooden carton |
Delivery | 15 days after receiving down payment |
2.Table of Chemical Composition of Aluminum profile
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Al | |
Unit | Total | ||||||||||
6063 | 02-06 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
6061 | 0.4-0.8 | 0.8-1.2 | <0.7 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.15 | <0.05 | <0.15 | Surplus |
6060 | 0.-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | <0.1 | <0.05 | <0.15 | Surplus |
6005 | 0.6-0.9 | 0.4-0.6 | 0.35 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | <0.15 | Surplus |
3. Technical Data of Aluminum profile
Alloy | Temper | Thickness | Tensile Strength | Yield Strength | Vickers Hardness | Webster Hardness |
6005 | T6 | ≤5 | ≥270MP | ≥225MP |
|
|
T6 | 5<e≤10 | ≥260MP | ≥215MP |
|
| |
T6 | 10<e≤25 | ≥250MP | ≥200MP |
|
| |
6060 | T6 | ≤3 | ≥190MP | ≥150MP |
|
|
T6 | 3<e≤25 | ≥170MP | ≥140MP |
|
| |
6061 | T6 |
| ≥265MP | ≥245MP | HV≥58 | HW≥8 |
6063 | T5 |
| ≥160MP | ≥110MP | HV≥58 | HW≥8 |
T6 |
| ≥205MP | ≥180MP | HV≥58 | HW≥8 |
4. Application of wood grain Aluminum profile
Our wood grain aluminum profile is used for Windows and doors,kitchen cabinets,Furniture and so on.
Note: Pictures are only for reference, the product will be made according to customer's requirement.
EP paper inside for each piece then shrink paper or carton paper then pallet or wooden carton etc.
Our professional technical team will satisfy your technical requirement.
In the whole production process of aluminum profile, we have four times inspection to make sure our aluminum profile is qualified.
So You have no reason not to choose us!
Shenyang Toshine Aluminum Co., Ltd is a high and new tech aluminum profile manufacturing company. So far we have 11 years experience in extrusion aluminum profile. Our extrusion aluminum include 6063, 6005, 6061 aluminum alloy. And we have full automatic lines of anodizing, staining, electrophoresis, heat insulation compounding, powder coating, wood-grainy painting, which can do the mill finish for the structural profile, industrial profile and radiator to meet the customer personal requirements. And our aluminum profiles are widely used in aerospace, military, metro and large building construction.
1. Q: What’s your MOQ?
R: Usually the MOQ of each aluminum profile is 500kgs, but it will be different according to dimension of aluminum profile.
2. Q: How many kinds of products of aluminum you have?
R: Our main products are Mill finish, Powder Coating, Anodizing, Electrophoresis, Wood Grain transfer, Broken Bridge etc.
3. Q: Can you supply OEM services?
R: We can supply OEM services.
4. How about the mould cost (extrusion die charge)?
R: The mould cost will depend on the dimension of aluminum profile.
5. Q: Do the prices of all the colors are the same with same surface treatment?
R: No. About Powder coating, the bright-color will higher than white or gray. About the Anodizing, colorful will higher than silver, and black higher than colorful.
6. Q: Which way you calculate the weight?
R: We can choose both theoretical weight and actual weight, base on the clients requirements.
If you need any help from me please kindly contact me!
