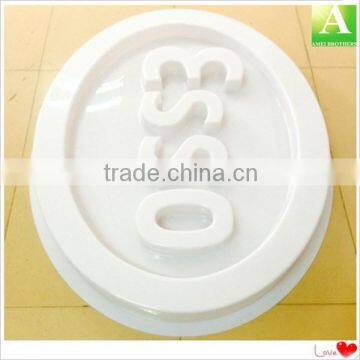

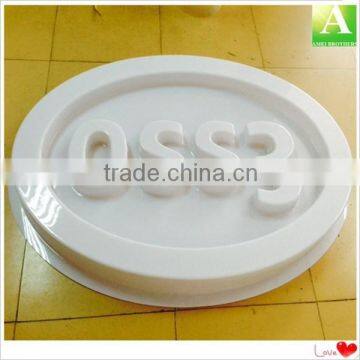

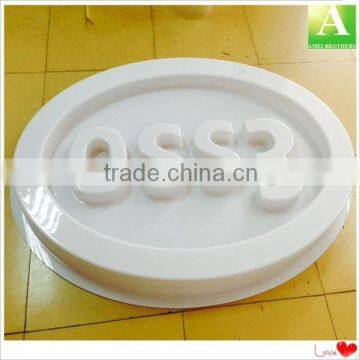

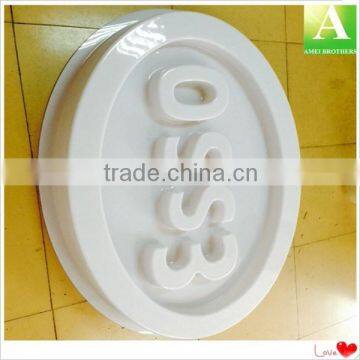

Acrylic thermoforming plastic light box cover
Information of products | |||
1 |
Name
| Acrylic thermoforming plastic light box cover. | |
2 |
Brand
| OEM | |
3 |
Process
| Plastic vacuum forming + printing, sticker or painting | |
4 |
Shape
| According customer’s design drawing | |
5 |
OEM/ODM
| Both are OK | |
6 |
Materials
| ABS,PS,PC,PMMA,ASA or others plastic | |
7 |
Materials grade
| Normal grade , foods grade , UV retardarce, fire resistant, Environmentally- friendly and others materials | |
8 |
Surface
| Nature gloss or high gloss | |
9 |
Color
| White ,Black ,grey ,and so on | |
10 | The max size we can make
| 3000*2000*800MM | |
11 |
Thickness
| 0.1-10 MM | |
12 |
Mold materials
| Aluminum | |
13 | Lead time for mold+sample
| Within 5 working days after recevied your payment for mold and sample | |
14 | Size can be accurate to | 0.3 MM | |
Information of our factory | ||
1 | Establish in | 2001 |
2 | Our address | Henggan Town, Longgan district of Shenzhen City , Guangdong province |
3 | Business type | Manufacturer |
4 | Quality | ISO certified |
5 | Number of Employees | Under 100 People |
6 | Number of Technicians | 5 People |
7 | Number machines | 8 sets of vacuum forming machines + many sets of others machines |
8 | Main market | Europe, America ,Oceania, Africa, and Asia |
9 | Payment term | T/T, LC |
10 | Delivery term | FOB Shenzhen |
11 | FOB port | Yantian port of Shenzhen City |
Vacuum forming step:
Step1. Make the plastic sheet be clamped into position which above the vacuum forming mold inside the
vacuum forming machine.
Step 2
The sheet is then heated by two heaters one above the sheet and one below the sheet.
This method is called sandwich heating and gives a more consistent temperature throughout
the sheet avoiding any cold areas which in turn gives you a sharper and more defined vacuum forming .
Step 3
Once the sheet is heated to the correct temperature it will become pliable, the vacuum forming mold is raised
and a vacuum is applied which pulls the now malleable plastic sheet down onto the vacuum forming mold.
Step 4
The vacuum is kept on while the plastic is cooled using large fans and water spray so that it retains the shape
off the vacuum forming mold.
Step 5
Once the plastic is cooled the vacuum is released and the plastic part removed by gently
applying a short blast of air between the vacuum forming mold and the plastic component.
Step 6
Pick the plastic sheet which is finished vacuum forming out from the vacuum forming machine.
Step 7
Cut the edge by CNC machine or hand.
Step 8
Cleanning and packing.
Pls feel free to contact at Kathy huang if you have any requirements!
