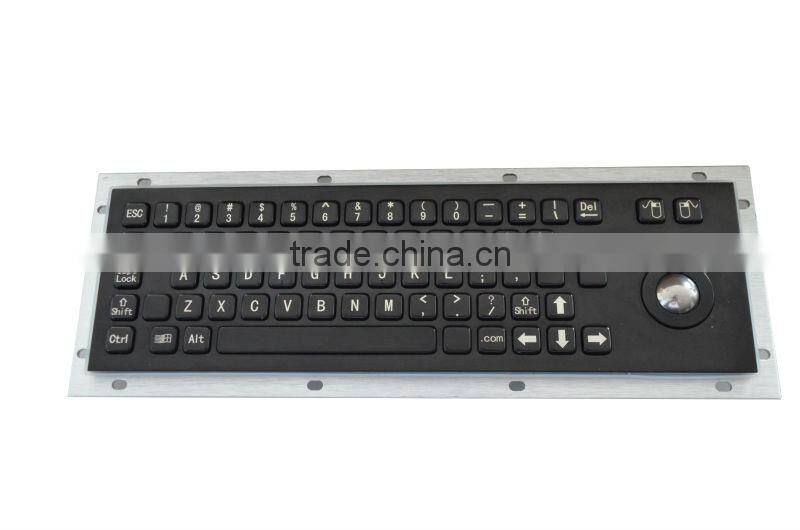

Anodized black mini metal keyboard
Low Price Metal Membrane Keyboard
1) Vandal-resistant metal keyboard with 64 keys and integrated trackball, front panel mount
2) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
3) Rugged keyboard,specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable
Specifications:
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key(2.0mm) with etched or laser engraved graphics
- Trackball: Stainless steel trackball (Dia: 38mm)
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE, UL compliant
Environmental Characteristics
- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key 14x14 mm: 2N+/-0.1
- Actuation force for key 14x28 mm: 4N+/-0.1
- Key travel: 2.0mm
- Key to key: 5.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Reliability
- MTBF >50000H
- MTTR <30min
Weight and dimension
- Weight: 1.80kg
- Dimension: 400.00 x 124.00 x 32.20mm
Company Introduction
Our company is a professional metal parts manufacturer in China, and it is established in 2006. It provides equipment for many financial companies in China and other countries. We are specially good at stamping and punching stainless steel and aluminum parts, and has a completerly process of manufacture including product design, die sinking , manufacture and delivery. we are professional supplier for high quality metal parts at competitive price, and our products are sold to Europe, India, Africa, and North America.

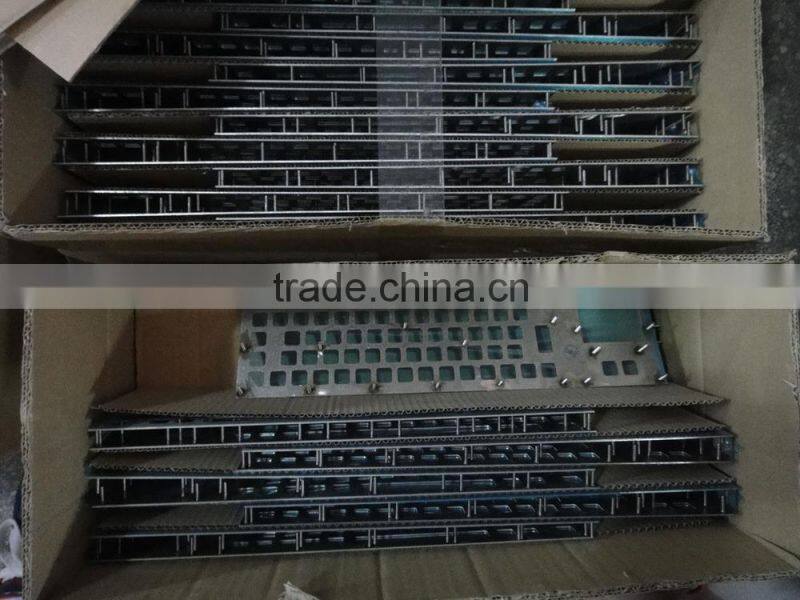

Package
FAQS
Q:What’s your business scope?
A:Our business scope is stamping,CNC maching,lathe turning,forging,weld,casting etc.
Q:Which shipping way will you use for the products?
A:For the light weight or the small size ,we will use the International express such as TNT ,DHL,UPS,FEDEX etc.These express company provide good service and deliver fast,it always take three to five days to arrive according the area you are in,it saves your time especially for the customer who in urgently need of the products.For the heavy weight(more than 300KG) and large size(more than 0.01CBM),we will suggest you adopt the way of shipping via sea,if you haven't the shipping agent,please let us to help you find a reliable shipping company,we will ensure that your products will be arrive you on a safe and normal situation.
Q:What's The Lead Time of Sample?
A:For the stamping sample, the lead time is about 15-20days, we have to make the mold. For the machining part, it takes 7-10days.
Q:Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision?
A:Yes, we can, we can provide high precision parts and make the parts as your drawing.
