Home > Packaging & Printing > Printing Machinery > Screen Printer > Automatic Garment/T-shirt/Fabric/Textile/Clothes/jute Bag/Non-woven Rotary Silk Screen Printing Machine for Sale

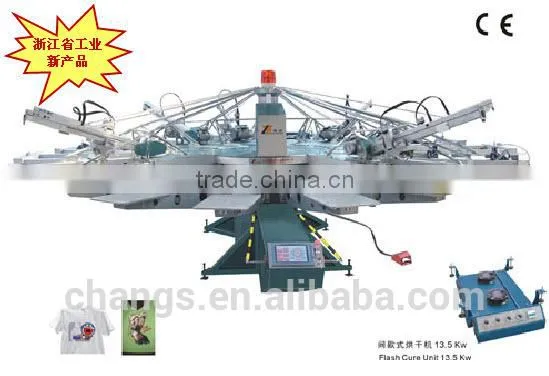

Automatic Garment/T-shirt/Fabric/Textile/Clothes/jute Bag/Non-woven Rotary Silk Screen Printing Machine for Sale
US$ 40,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
YIZHAN
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Flat Bed Screen Printing MachineUS$ 10,000 - 55,000MOQ: 1 Set -
T-shirt/Garment Automatic Silk Screen Printing MachineUS$ 30,000 - 85,000MOQ: 1 Set
-
Silk Screen Stretching MachineUS$ 1,200 - 2,000MOQ: 1 Set
-
Cup Screen Printing MachineUS$ 2,100 - 5,000MOQ: 20 Sets
-
Semi-automatic Silk Screen Printing MachineUS$ 9,000 - 12,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
YIZHAN
Model Number
YH
Usage
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer
Automatic Grade
Automatic
Voltage
380V
Gross Power
2.9kw-5.5kw
Dimensions(L*W*H)
5500x5500x1850mm
Weight
3000kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Yaskawa serve motor
2.Print head and flash cure unit are interchangeable
3.Multicolor:4-16 colors
2.Print head and flash cure unit are interchangeable
3.Multicolor:4-16 colors
Desciption
YH series is our high-tech automatic textile printers. Aimed for higher production output and faster recovery of investments, it’s equiped with intellegent micro-processor, minimal maintenance requiement but top quality print result, leading to the superior printer in any print workshop. YH series is available in 4, 6, 8, 10, 12, and 14-color models with 500×700mm maximum image area, all of which can print on T-shirts, sleeves, pant legs, and fabric sheets & bags etc. SPA series feature servo-driven indexers, AC motor driving printheads and pneumatic lifting and lowering turntable.
Features:
1.It is combined the advanced technology from home and abraod, high speed and nice-looking appearance.
2.Automatic screen positioning system with precision turnables, placidly steady running, excellent localizer.
3.Every squeegee and flood blade can be operated separately by independent chopper, speed adjusted by frequency,slight air pressure.
4.Imported servo motor drive system makes its running smooth,precies and quick rotation.
5.Center computer controller system with multiple and interchange languages.
6.Three curing zones in each flash cure unit can be setted independently.
7.The flash cure unit can be installed in the print frame if necessary.
8.Double-station indexing capability increases production output.
9.Pnumatic and tool-free pallet locator speeds up pallet changover(Optional).
10.High-density printing effect capability (Optional).
11.Bounce switch is for skip over empty pallet or badness print to less waste.
MAIN TECHNICAL PARAMETERS
Model | YH-104/8 | YH-156/10 | YH-158/12 | YH-1510/14 | YH-2012/18 |
Print Color/Station | 4-6/8 | 4-8/10 | 6-10/12 | 6-12/14 | 6-14/18 |
Maz. Image Area | 500×700/mm | 500×700/mm | 500×700/mm | 500×700/mm | 500×700/mm |
Pallet Size | 600×800/mm | 600×800/mm | 600×800/mm | 600×800/mm | 600×800/mm |
Frame Size | 700×1000/mm | 700×1000/mm | 700×1000/mm | 700×1000/mm | 700×1000/mm |
Maz.Air Consumption | 8P24.71L/100mm (piston move) | 8P24.71L/100mm (piston move) | 8P30.44L/100mm (piston move) | 8P30.44L/100mm (piston move) | 8P31.51L/100mm (piston move) |
Max.Output | 900pcs/h | 900pcs/h | 900pcs/h | 900pcs/h | 900pcs/h |
Power | 2.9Kw | 4.4Kw | 4.4Kw | 4.4Kw | 5.5Kw |
Each Dryer Power | 13.5Kw | 13.5Kw | 13.5Kw | 13.5Kw | 13.5Kw |
Size | φ 5500×1850/mm | φ 5500×1850/mm | φ 5500×1850/mm | φ 6000×1850/mm | φ 6400×2500/mm |
Weight | 2300Kg | 3000Kg | 3300Kg | 3600Kg | 4300Kg |
NOTE: If any special pallet size or image area requested,can be produced dccordingly
