Technical parameters:
Model | SPE-104/8 | SPE-156/10 | SPE-158/12 |
Color printing/job position | 4-6/8 | 4-8/10 | 6-10/12 |
Print area | 500×700mm | 500×700mm | 500×700mm |
Table area | 600×800mm | 600×800mm | 600×800mm |
Screen frame area | 680×980mm | 680×980mm | 680×980mm |
Air source required | ≥0.8Mpa | ≥1.0Mpa | ≥1.0Mpa |
Output | 700pcs/h | 700pcs/h | 700pcs/h |
Main frame power | 2.0Kw | 2.0Kw | 2.9Kw |
Maximum power per dryer | 13.5Kw | 13.5Kw | 13.5Kw |
Dimensions | φ4500×1850/mm | φ4600×1850/mm | φ4800×1850/mm |
Weight dimensions | 1500Kg | 2000 Kg | 2200 Kg |
Brief Introduction:

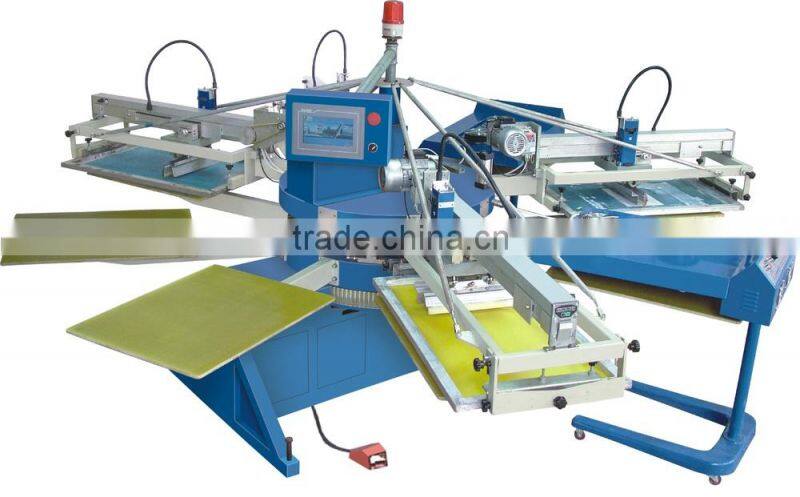

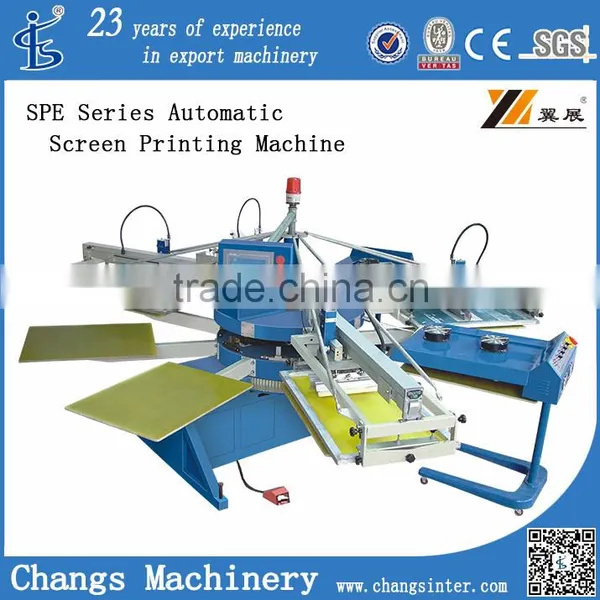

SPE series is the multifunctional automatic screen printers. With intellegent micro-processor, touch screen and servo motor driven system equipped, it brings into high printing stability and colors registration tolerance up to ±0.05mm. All parts of the machine body are tested precisly before installation, ensuring minimal maintenance and easy operation. The SPE series automatic screen printer must be your ideal printer in printing industry.
Features:
1, Servo motor driven and high-tech system built in
2, Turntable Rotates freely for high positioning nice registration.
3, Print/flood speeds adjusted electrically
4, Print pressure, print strokes , and it angle are adjustable.

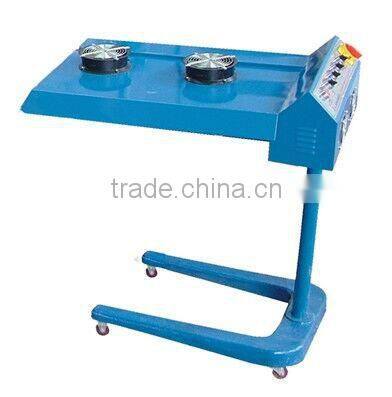

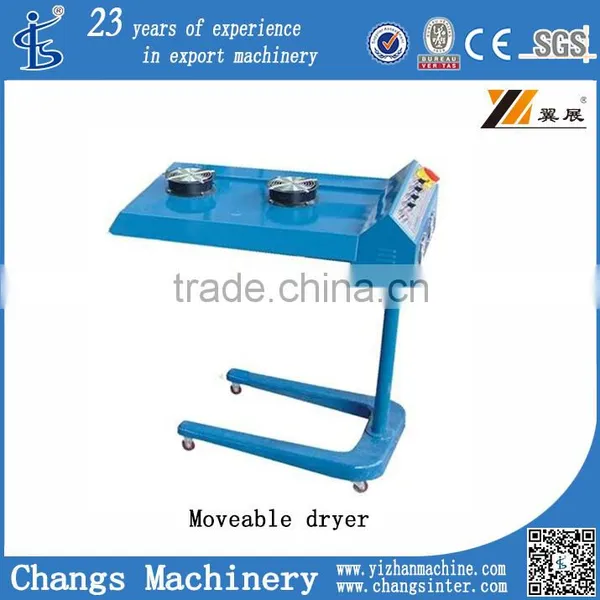

5, The movable dryer can be put inside of any print stations as necessary.
Sample:
Q1:We are interested in the screen printing machine,Could you quote the latest price to us?
A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:
1.How many color to print will you need?
2.What's your max printing size? (Such as 500x700mm or biger or smaller)
3.What's the capacity per hour you request? (Such as 900pcs/h)
Q2:What's the MOQ, Delivery time, and payment terms?
A2: 1. MOQ: 1 set
2. Delivery time: 20 workdays after receiving T/T 30% payment deposit
3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
