6 color screen printing machines

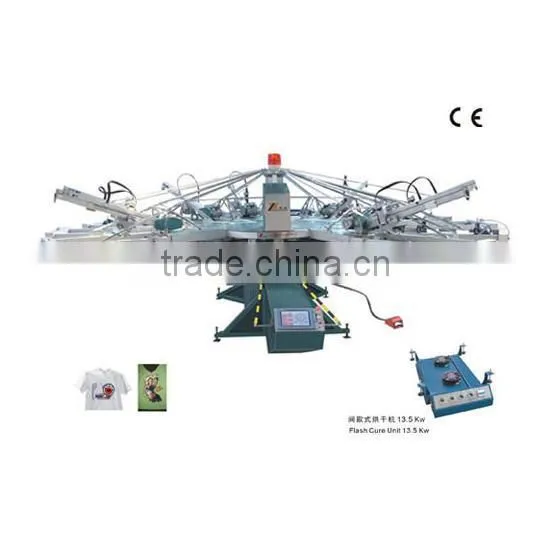

YH series is our high-tech automatic textile printers. Aimed for higher production output and faster recovery of investments, it’s equiped with intellegent micro-processor, minimal maintenance requiement but top quality print result, leading to the superior printer in any print workshop. YH series is available in 4, 6, 8, 10, 12, and 14-color models with 500×700mm maximum image area, all of which can print on T-shirts, sleeves, pant legs, and fabric sheets & bags etc. YH series feature servo-driven indexers, AC motor driving printheads and pnumatic lifting and lowering turntable.
Adjustable XY-coordination Pneumatic clamps hold screen frames tight and allow for quick frame loading/unloading. General benefits like independent squeegee & floodbar speed adjustments, availability for flock print, 40 degree wide range and calibrated pressure adjustments, tool-free print/flood stroke length and indexing speed control further simplify setup and reduce the uneccessary stoppage. The best aspect of SPA printers include a multi-colored touch screen control center, in which all functions can be realized with easy finger-tip commands like onboard self-diagnostic and alarming system, real-time production data, job memory facility and an independent print start & print end setting that automatically stop working when reaching to the preset production data. The tool-free pop-up pnumatic pallet release and locator system means more of flexability to the SPA printers. Central off-contact adjustment on all station can be achieved synchronizedly through hand lever located on the control center.
Plus, the combination of safety cords and bars system eliminates risk of any trip-in accidents and the printhead can be easily lift up and locked down as needed to load an flash cure or refill the ink. Two prominent skip-shirt smash buttons minimize the uneccessary print work on the empty pallet and the foot pedal switch speeds up the pallets changover. All in all, choosing the YH series will let you achieve more unlimited opportunity.
STANDARD FEATURES
TOUCH SCREENCONTROLCENTER
1, Full colored display gives a vividly visual guide
2, an independent print start & print end setting that automatically stop working when reaching to the preset production data
3, In-line self-diagnostic and alarming system
4, Multiple (1-50) print stroke capability in each print head
5, Real-time production data
6, Zero position control
7, Test print setting turns individual printheads off/on during test print cycle
8, Loading time and flash curing dwell time control
9, Three curing zones in each in-line cure unit can be setted independently
10, Built-in UBS port for future software upgrades
12, Job memory features technical parameters restoration, making repeat production a breeze
TURNTBLE/INDEXER
1, Clockwise or counterclockwise rotation
2, Double-station indexing capability increases production output
3, Servo drive combines higher print speeds with superior smoothness, consistency, and longevity
4, Central off-contact adjustment can be adjusted precisely during production, minimizing press stoppage.
5, Precise four-point pallet leveling system
6, Pnumatic and tool-free pallet locator speeds up pallet changover
SAFETY SYSTEM
1, Safety cords between print heads and four safety bars installed on load/unload stations ambience eliminate any trip-in accident
2, Skip-shirt smash button, located on both sides of the touch screen, allows operator to avoid printing on the empty pallets as they travel
3, Hundredth of a second indexer stop trigger time offers a strong safety guarantee
PRINT FRAME
1, Pneumatic clamps hold frames tight and allow for rapid frame loading
2, Visual reference marks every 1 degree (0-40 degree range) simplify squeegee/floodbar angle adjustment
3, Easy changeover for squeegee/floodbar
4, Availability for flock print
5, Calibrated front & rear stroke length with tool-free adjustment maximizes print flexibility.
6, Print and flood speed control, pneumatic screen frame clamping, left-and-right indexing, lifting and lowing action, print and flood holders displacement are incorporated into one membrane control panel in each print head, minimizing the setup time.
Technical parameters
Model | YH-104/8 | YH-156/10 | YH-158/12 | YH-1510/14 | YH-2012/18 |
/Color printing/job position | 4-6/8 | 4-8/10 | 6-10/12 | 6-12/14 | 6-14/18 |
Maximum printing area | 500×700/mm | 500×700/mm | 500×700/mm | 500×700/mm | 500×700/mm |
Plate size | 600×800/mm | 600×800/mm | 600×800/mm | 600×800/mm | 600×800/mm |
Screen frame size | 700×1000/mm | 700×1000/mm | 700×1000/mm | 700×1000/mm | 700×1000/mm |
Maximum air consumption | 8P24.71L/100mm | 8P24.71L/100mm | 8P30.44L/100mm | 8P30.44L/100mm | 8P31.51L/100mm |
Maximum yield | 900pcs/h | 900pcs/h | 900pcs/h | 900pcs/h | 900pcs/h |
Power | 2.9Kw | 4.4Kw | 4.4Kw | 4.4Kw | 5.5Kw |
Single intermittent oven power | 13.5Kw | 13.5Kw | 13.5Kw | 13.5Kw | 13.5Kw |
Dimensions | 4800x4800×1650/mm | 5500x5500×1850/mm | 5500x5500×1850/mm | 6000x6000×1850/mm | 6400x6400×2500/mm |
Weight | 2300Kg | 3000Kg | 3300Kg | 3600Kg |
South Africa Customer
Hungary Customer
Syria Customer
