DESCRIPTION:

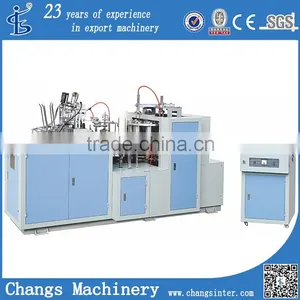

JBZ-S Paper Cup Forming Machine is an automatic machine with multi-working station. It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonicwelding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. The sealing system is ultrasonic sealer, so this model is suitable for making two side PE coated paper with full printing design cups. This cup can for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc.
Technical Parameter:
Model | JBZ-S04 | JBZ-S12 | JBZ-S16 | JBZ-S22 |
Specification of paper cup | 2.3.4.5.6 oz for ice-cream | 6oz,8oz,12oz | 12oz,14oz,16oz | 16oz, 22oz |
Paper material | Single-sided, double-sided PE coated paper | |||
Outer diameter of cup rabbet | 50-80 | 50-95 | 50-95 | 50-95 |
Outer diameter of cup bottom | 35-70 | 35-70 | 35-70 | 35-70 |
Cup height | 30-60 | 50-120 | 100-150 | 100-175 |
Bottom depth | ≤10 | ≤10 | ≤10 | ≤12 |
Conicity | 4-6o | 2-8o | 2-8o | 2-8o |
Capacity | 40-50pcs/min | 35-45pcs/min | 30-40pcs/min | |
Power supply | 380V 50Hz | |||
Total power | 5KW | 6.5KW | 8KW | |
Weight | 1600Kg | 1900Kg | ||
Packing size(L*W*H) | 2800×1350×1800mm | 3000×1450×1900mm | 3300×1450×2000mm | |
Air Pressure | 0.2m3/min;0.6MPa (provided by customer) | |||
Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
