Water Filling Machine Production Line

Specifications

water filling production line

Small bottled water production line,drinking water production line,pure water production line

1.capacity:3000-5000 bottles per hour.

2.raw water tank.

3.reverse osmosis pure water equipment

4.ozone generator

5.pure water tank

6.bottle blow molding machine

7.small bottled water washing,filling caping machine

8.dryer

9.labelling machine

10.shrinking oven and steam generator

-jet printing machine

12.shrinking film and packing machine

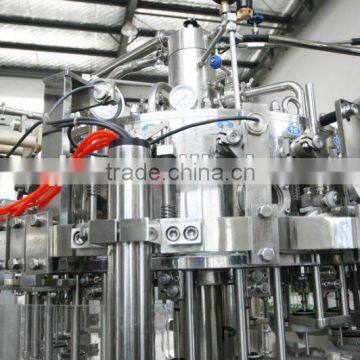

Alao we can provide the small bottle water filling machine (3 in 1)

small bottle mineral water filling machinery ( 3 in 1)

is used PLC controller automatic small water bottle 300ml-2L washing bottle ,filling water and capping.

the water filling machine's specification

1) Capacity:
a) 300 - 1500mL bottles: 1000-2300 bottles/hour
b) 1.5L bottles: 1,000 bottles/hour
2) Functions: washes bottles, fills bottles with water, caps lids
3) Bottle specifications:
a) Diameter of mouth: 22 - 30mm
b) Diameter of bottle: 60 - 88mm
c) Height: 160 - 320mm
4) Washing system:
a) 12 washing positions
b) Motor power: 0.55kW
c) Size: 900 x 800 x 1,600mm
d) Weight: 250kg
5) Filling system:
a) 16 filling positions
b) Output: 1,500 - 3,000 bottles/hour
c) Motor power: 0.9kW
d) Size: 1,000 x 900 x 2,000mm
e) Weight: 500kg
6) Capping system:
a) Output: 1,500 - 3,000 bottles/hour
b) Motor power: 0.55kW
c) Size: 900 x 700 x 1,800mm
d) Weight: 500kg

 Main of technology:

The machine could auto wash, fill, cap, bottles are transferred on the conveyer .

when bottles come to the core machine, washing part(washing 18 Piece once),

filling part(filling 18 pcs once),capping part(capping 6pcs once)work. at the same time,

cap panel  feed cap into the capping part.
