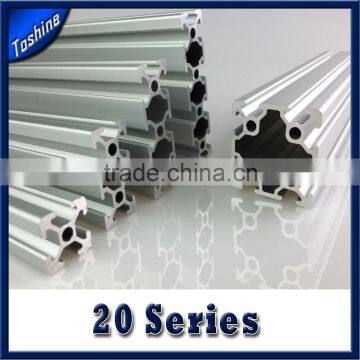

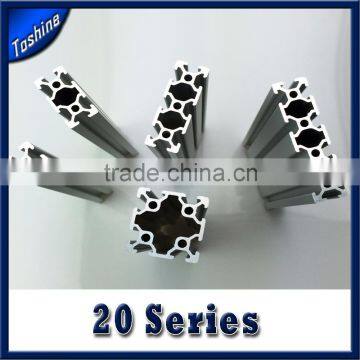

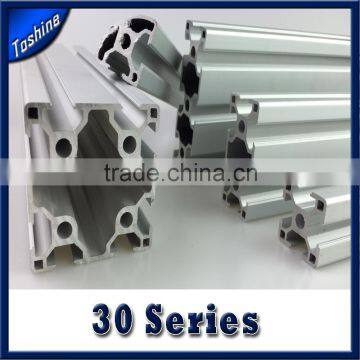

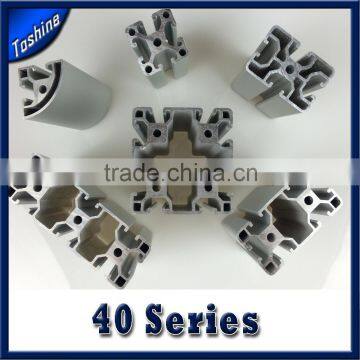

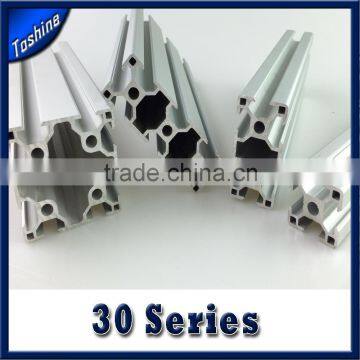

aluminum profiles t slot of industrial assembly line
Applications
Item Name |
aluminum profiles t slot of industrial assembly line |
Material Grade | Alloy 6000 Series |
Temper | T5—T6 |
Technology | Aluminum Extrusion |
Surface treatment | Mill finish, anodizing, powder coated, sandblasting, electrophoresis etc |
Color | Silvery white, black, golden, champagne, dark bronze or according to your requirement |
Normal Anodizing thickness | 8-12 micro |
Normal Power Coating thickness | 60-100 micro |
Shape | Square, Round, Flat, or according to customers' drawings |
Length | The Standard length of export is 5.8m , Anodizing 6.5 meters at most, Mill finish 13 meters at most
|
Deep processing | cutting, drilling, punching, bending etc |
2D&3D Design | 1: 4 Designers in design and development department 2: Auto CAD, 3D, AI, SLD, PRT. IGS, PDF, JPEG etc. |
Engineering& Tooling | 1: 8 Engineers in Mold Shop. 2: Use high tonnage extruder, Wire EDM, CNC, Drilling machines etc. |
Quality Control | 1.ISO Approved. 2.Inspection at Site. 3.Inspection Before Shipping. 4.Testing Machine. |
Packing details | 1.EP Paper inside for each profile separate then craft paper outside 2.EP Paper inside for each profile separate then carton paper then pallet 3. Shrink film 4.wooden carton |
Delivery | 15-25days after receiving down payment |
Payment Term | T/T, L/C |
Chemical Composition of aluminum profiles t slot of industrial assembly line
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Al | |
Unit | Total | ||||||||||
6063 | 02-06 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
6061 | 0.4-0.8 | 0.8-1.2 | <0.7 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.15 | <0.05 | <0.15 | Surplus |
6060 | 0.-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | <0.1 | <0.05 | <0.15 | Surplus |
6005 | 0.6-0.9 | 0.4-0.6 | 0.35 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | <0.15 | Surplus |
1. We are professional enterprise, intergrates mould design, aluminum extrusion, production, fabrication and marketing.
2. Our products could be in different colors and diverse surface treatment.
3. We have nearly 2000 varieties products to meet your requirement.Customized is also welcomed!
4. We have rich experience in exporting perfil extruido aluminio industrial
!
5. In one word: we provide competitive price, good quality products and best service!
- simple and easy installation
- high brightness and hardness
- strong coated adhesion
- anti-scratch,smoothness
- high weather resistance, high corrosion resistance,good wear resistance
- Various shapes and colors available.
- · Short delivery time
- Experienced quality control&quality warranty
- Self-Running Mould Factory
Production Capacity:50,000 Sets Per Year
CAD/CAM Mould Design Aviable
Facilities: CNC Machine(Elumatec, Germany), Saw, Punchers, Driller, Miller, Copy Router, Profile Machining Centres, Corner Crimpers, Assembly Equipment, Etc
Our professional technical team will satisfy your technical requirement.
- New aluminum profile R&D
- Design drawing as your requirement
- Material testing
- Hardness testing
- Stress analysis
- Aluminum billet inspection
- After extrusion inspesction
- Surface treatment inspesction
- Packing inspection
FAQ
1. Q: What’s your MOQ?
R: Usually the MOQ of each aluminum profiles t slot of industrial assembly line is 500kgs, but it will be different according to dimension of aluminum profile.
2. Q: How many kinds of products of aluminum you have?
R: Our main products are Mill finish, Powder Coating, Anodizing, Electrophoresis, Wood Grain transfer, Broken Bridge etc.
3. Q: Can you supply OEM services?
R: We can supply OEM services.
4. How about the mould cost (extrusion die charge)?
R: The mould cost will depend on the dimension of aluminum profiles t slot of industrial assembly line .
5. Q: Do the prices of all the colors are the same with same surface treatment?
R: No. About Powder coating, the bright-color will higher than white or gray. About the Anodizing, colorful will higher than silver, and black higher than colorful.
6. Q: Which way you calculate the weight?
R: We can choose both theoretical weight and actual weight, base on the clients requirements.
