Applications:
1).The device has a tidy construction,has a stable and reliable performance,and its operations are easy to master.
2).The running of this device is controlled by the micro-computer controller.
3).It is equipped with the OMRON photoelectric tracing system of high precision.
4).The place sealed and cut by it is very precise and the temperature of the seals are controlled separately and it is apt for many kinds of packaging materials the seal looks fair and is firm.
5).With the continuous adjusting of speed by frequency conversion,no interval will occur in the changes.
6).Has realized the full automatic processing of the following procedures,which are :material folding,moulding;cut of;feeding;medicine liquid
(disinfector)spraying and packaging.
7).It has a full automatic circular system combining the functions of the display of the medicine liquid content,spraying,medicine liquid flow control,and the colecting.
8).The flow of the medicine liquid can be adjusted by manual freely .
9).When the code printer is equipped,the producing date serial number can be printed automatically.
Used for:It is suitable for medical,hygienic and restaurant business,for packing of alcoholic cotton
Technical Parameter:

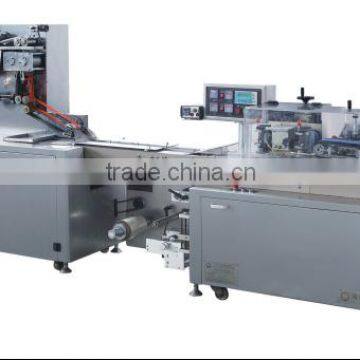

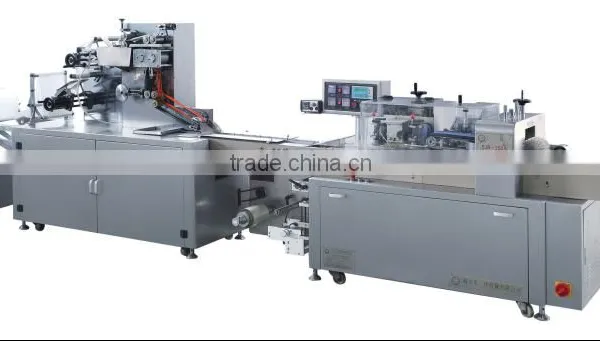

Modle | SJB-250AFULL AUTOMATIC COMPUTER CONTROL WET FOLDING&PACKAGING MACHINE | |
Size of the tissue | Unfold | L:160-280mm W:150-280mm |
| Fold | L:80-110mm |
|
| W:50-60mm |
Tissue plying mode | Maximum | 1 longitudinal plies 4 cross plies |
Size of bag | L:120-200mm W:60-70mm | |
Width of packing film | Max 220mm | |
Production Capacity | 35-120 bags/Min | |
Total Power | 220V 50HZ 3.2KW | |
Overall Dimension | L*W*H:3930*660*1400mm | |

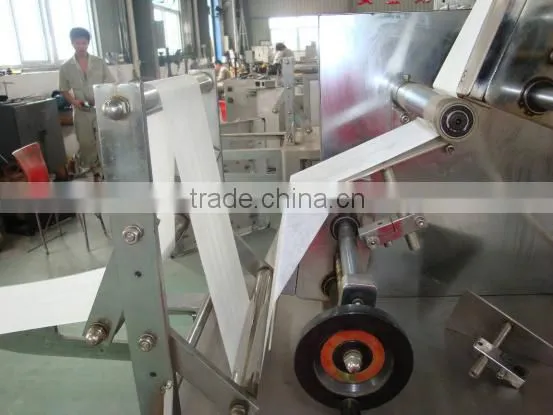

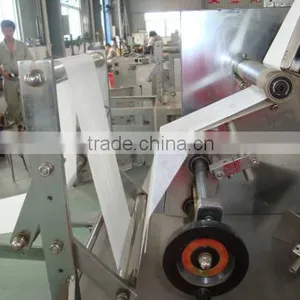

WORKING PROCESS: ROLL NON-WOVEN →FOLDING-CUTTING→liquid filling→Cutting→ Packing. | ||
Accessory list
1 | Electric apparatus | Programmable controller: with PLC of Siemens, 5.6 inch touch screen of Taiwan Weilian |
2 | Transporting part | Adopt transporting belt imported |
3 | Driving part | With P shape tooth chain type infinitely variable speed transmission |
4 | Machine cover | Full stainless steel 304 |
5 | Machinery parts | To made in our factory |
Name | From | Specification |
Step-step belt | Xiamen | 420L |
Transporting belt | Xiamen | 2×150×1840 |
Roller Brush | Jiangsu | Model DZB-250C |
White steel cutter | made in our factory | 4×8×120 |
Concave photo electrical | Japan | ZZ9X670ZY9M (OMRON) |
Frequency converter | (Japan)France | BFV00072G 0.75kw ATV12H0.75M2 |
9-15-24 Power supply | Hangzhou |
|
GDJ-211 Photoelectric sensor | Shanghai |
|
Electrical heating roller | Jiangsu | 12×115 250W 220V |
Temperature controller | Shanghai | XMTG-151 |
Solid relay | Wenzhou | 220D25 |
Small relay | Japan |
|
Electromagnet | Zhejiang | MFB1-2.5YC220V |
Note: In addition to the above List, our company having the other advantages as follow:
1. The equipment operation is stable, low noise.
2. Beautiful appearance, convenient maintenance, coherent structures.
3. The device for feeing and speed adjust, have obtained national patent.
4. The material for the sealing knife is 40cr.
5. The machine is driven by a single frequency conversion motor, not easy to make a mistake.

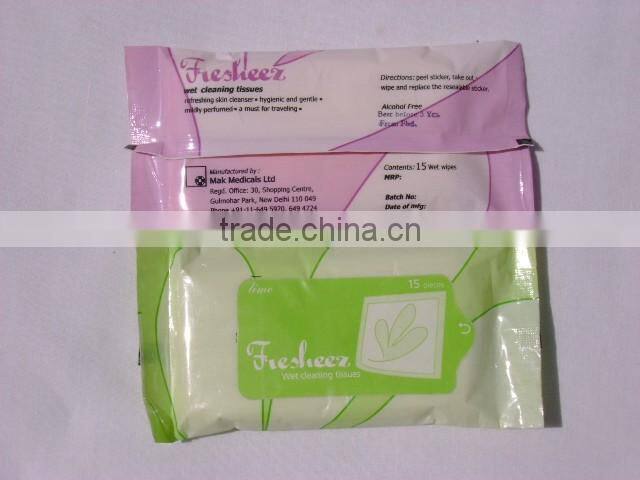

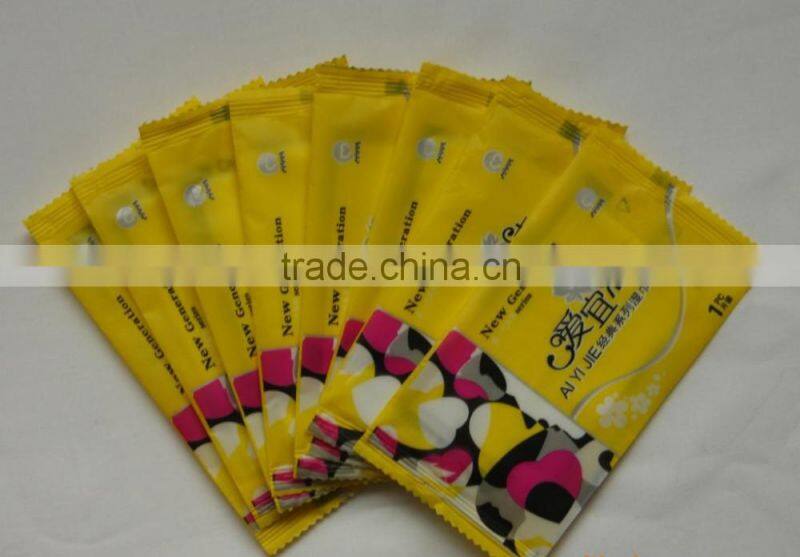

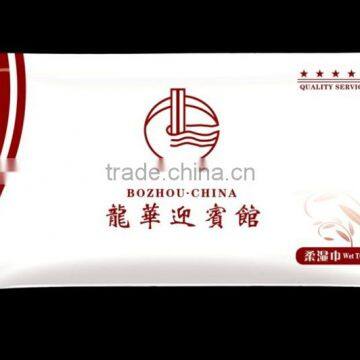

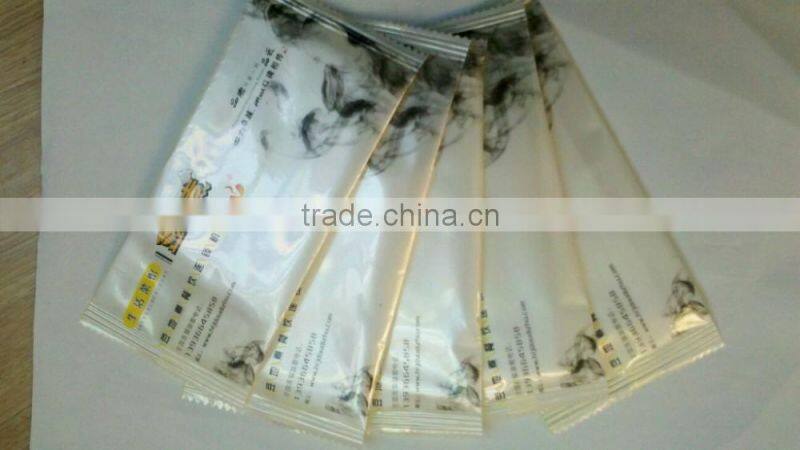

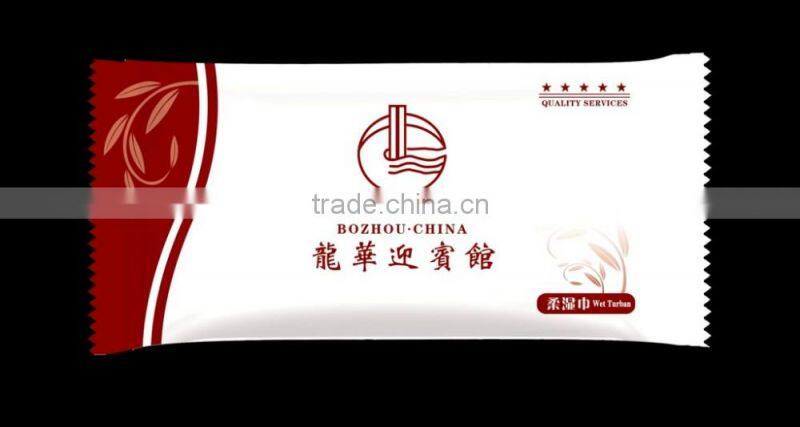

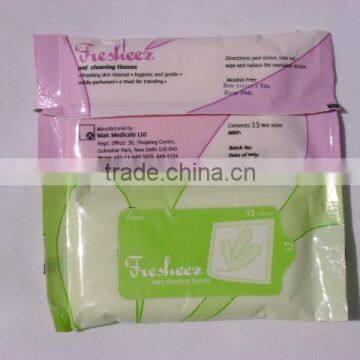

Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
