Specifications
plastic crusher1.Lower Noise
2.Wearproof Blades
3.Higher Output
4.Tailor-made crushing mesh screen
small SWP 200 pvc crushing machine with high efficience
SWP series plastics crushers are primarily used to break up every kind of thermoplastic and rubber, such as plastics profile material, tube, stick, silk thread, film, discard old rubber product. The granule provide the extrusion and injection directly.
The plastic crusher, Model SWP-450 is an ideal equipment which can recover big blocks of profile and tube material, it characterized by big crushing ability, high yield and stable work function. Automatic absorber increases the automation degree of this machine. The type SWP-630 plastics crusher is a kind of special equipment used to break large plastics hollowness container, big piece materials in die, plate material.
There are all kind of water cold and fan cooling type , shear plastic and inorganic powder grinding equipments, which are low consume, little invest, good economic performance and can operation continuously under the normal temperature, extensively are applicable to each profession.
It is special used to break and recover the thermoplastic PVC, PE, ABS, PS, EVA, aluminum plastic composite tube, shoe sole, spiral tube, etc., rising economic benefit obviously. To fill 30-50% of grinded powder in process formulation, its various index signs of chemistry and physics performance keep constant compared to new material, the product is sold very well, and exported to many countries.
|
Main technacial parameter:
Model | SWP200 | SWP210 | SWP320 | SWP400 | SWP630 |
Rotary knife diameter(mm) | 200 | 210 | 320 | 400 | 630 |
Number of turning knife | 3 | 3 | 6/2 groups | 5 | 9/3 |
Turing speed of knife(r/min) | 870 | 500 | 650 | 500 | 480 |
Number of fixed knife | 2 | 2 | 2 | 2 | 4/2 |
aperture of screen panel | φ8 | φ8 | φ8 | φ10 | φ10 |
Crushing capacity(kg/h) | 50-110 | 80-120 | 250-350 | 350-450 | 700-850 |
power (kw) | 4 | 4 | 11 | 13.2 | 44 |
Size of feeding gate(mm) | 240×350 | 250×230 | 500×280 | 375*320 | 820*610 |
weight(kg) | 300 | 320 | 1400 | 980 | 5000 |
Outline dimension(mm) | 1000*590 | 800*600 | 1613*1150 | 2500*1200 | 2500*1550 |

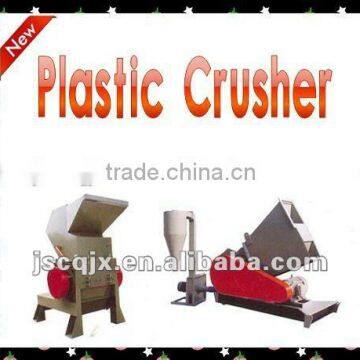

Machine image shows:
