SWP 320 Automatic Plastic Bottle Crusher

SWP 320 Automatic Plastic Bottle Crusher thumbnail-1
SWP 320 Automatic Plastic Bottle Crusher photo-1
US$ 5,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CQ
Model Number:
SWP seiries
Contact Supplier Request Quote Chat Now
Zhangjiagang City B
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CQ
Model Number SWP seiries
Use Waste Plastic Crusher
Plastic Type PET
Shaft Design Single
Power 11kw
Capacity 250-350kg/h

Specifications

plastic crusher
1.Lower Noise
2.Wearproof Blades
3.Higher Output
4.Tailor-made crushing mesh screen

        SWP 320  automatic plastic bottle crusher





Features:

1.Specially made of imported excellent tool steel,the cutter is very durable.Its installation is adjustable and it can be used for a very long time.
2.Main body of the machine is made of A3T quality structural steel.
3.The front and back parts of the crushing chamber are double soundproof and the intermediate is also stuffed with soundproof material,whick can reduce the noise to a very low one.
4.The machine is designed to be disassemble and its discharging lid,main frame and the stand of filter net are all fixed as per datum bores.So it is very easy to disassemble and clean.It is also equipped with a washing chamber and a protection brake for cutter adjustment to ensure safely while cleaning and adjusting.
5.It is featured in electricity-saving and excellent crushing effect.Rollers are fixed on its bottom to provide convenient moving.It is small in size and occupying less space.





 Main technacial parameter:

Model

        SWP200

     SWP210

      SWP320

       SWP400

        SWP630

Rotary knife diameter(mm)

200

210

320

400

630

Number of turning knife

3

3

6/2 groups

5

9/3

Turing speed of knife(r/min)

870

500

650

500

480

Number of fixed knife

2

2

2

2

4/2

aperture of screen panel

φ8

φ8

φ8

φ10

φ10

Crushing capacity(kg/h)

50-110

80-120

250-350

350-450

700-850

power (kw)

4

4

11

13.2

44

Size of feeding gate(mm)

240×350

250×230

500×280

375*320

820*610

weight(kg)

300

320

1400

980

5000

Outline dimension(mm)

1000*590
*1090

800*600
*1400

1613*1150
*1910

2500*1200
*2000

2500*1550
*2850

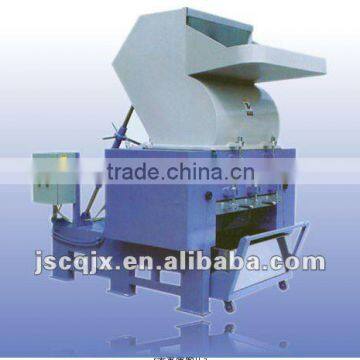

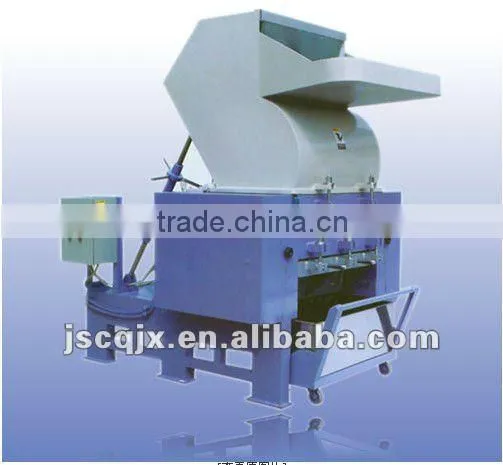

Machine image shows:

SWP 320 automatic plastic bottle crusher

SWP 320 automatic plastic bottle crusherSWP 320 automatic plastic bottle crusher



 SWP 320 automatic plastic bottle crusherSWP 320 automatic plastic bottle crusherSWP 320 automatic plastic bottle crusher
