Home > Products > Plastic pulverizer and crusher > high quality SWP400 plastic pet shredder
high quality SWP400 plastic pet shredder
- 10 Set / Sets per Month
- shanghai
- T/T
- Hot Sale Expanded Polystyrene Compactor | Eps Foam Cold Press Recycling Compressing Machine
- New EPS Densifier / Styrofoam Densifier / Waste EPS XPS Foam Cold Press Recycling Machine
- EPE EPP XPS EPS Foam Crusher | extruded polystyrene board XPS board crusher
- EPE EPS EPP XPS Polystyrene Foam Recycling Machine | Plastic Foam Hot Melting Machine
- Solar Panel Aluminum Frame Removing Dismantling Recycling Machine
- Drug Glass Bottle Crusher Medicinal Glass Bottle Crusher for Recycling
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | CQ | Model Number: | SWP seiries |
Use: | Waste Plastic Crusher | Plastic Type: | PET | Shaft Design: | Single |
Power: | 13.2kw | Capacity: | 350-450kg/h |
Product Description
Specifications
plastic crusher1.Lower Noise
2.Wearproof Blades
3.Higher Output
4.Tailor-made crushing mesh screen
high quality SWP400 plastic pet shredder
Structure Characteristic:
1. The cutter is made of excellent tool steel and under special heat treatment, so it features in high hardness of cutting edge.
2. The cutter is designed as adjustable installation mode, when the cutting edge is blunt, it can be grinded and installed repeatedly.
3. Rotary cutter rack of rotor is ranged in ladder mode, so it can separate dynamic load. Improve single cutter’s cutting torque and reduce power consumption.
4. Insulative structure design can reduce operational noise and improve working environment and precision.
5. It is equipped with phase-sequence over load protective, which can accurately connect with outer power supply, and also can shut off the power timely during the state of phase loss for electric motor and over load.
Main technacial parameter:
Model | SWP200 | SWP210 | SWP320 | SWP400 | SWP630 |
Rotary knife diameter(mm) | 200 | 210 | 320 | 400 | 630 |
Number of turning knife | 3 | 3 | 6/2 groups | 5 | 9/3 |
Turing speed of knife(r/min) | 870 | 500 | 650 | 500 | 480 |
Number of fixed knife | 2 | 2 | 2 | 2 | 4/2 |
aperture of screen panel | φ8 | φ8 | φ8 | φ10 | φ10 |
Crushing capacity(kg/h) | 50-110 | 80-120 | 250-350 | 350-450 | 700-850 |
power (kw) | 4 | 4 | 11 | 13.2 | 44 |
Size of feeding gate(mm) | 240×350 | 250×230 | 500×280 | 375*320 | 820*610 |
weight(kg) | 300 | 320 | 1400 | 980 | 5000 |
Outline dimension(mm) | 1000*590 | 800*600 | 1613*1150 | 2500*1200 | 2500*1550 |

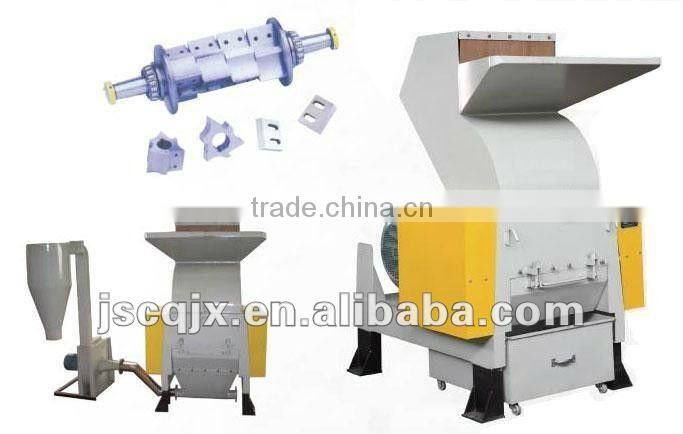

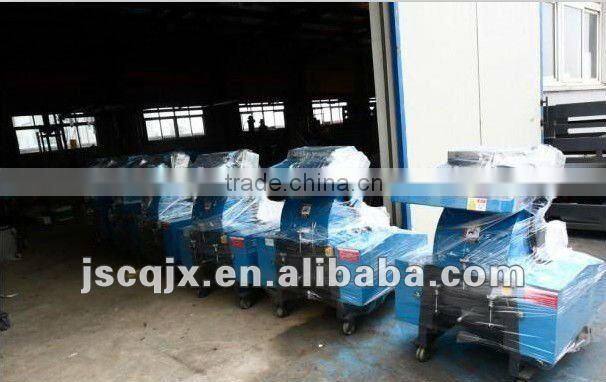

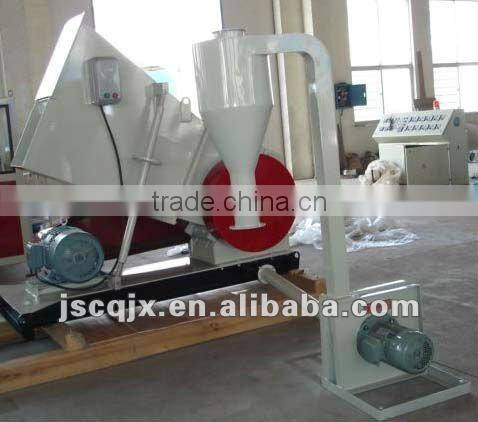

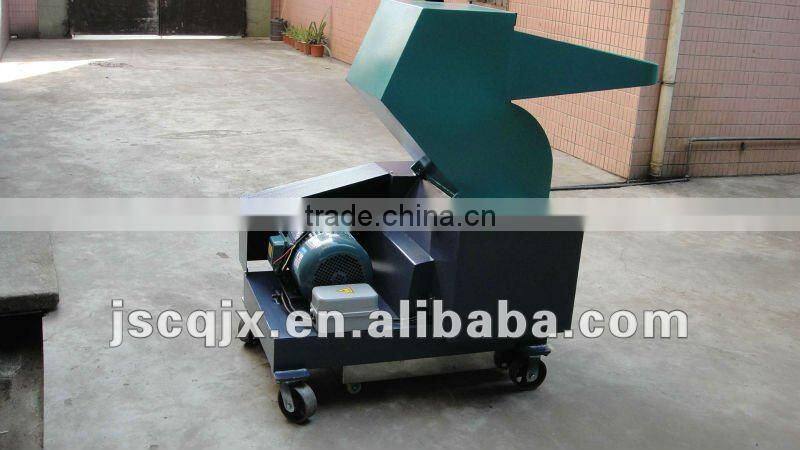

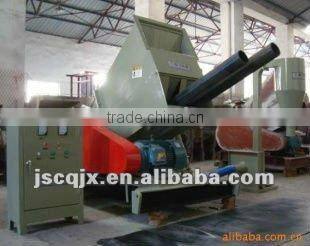

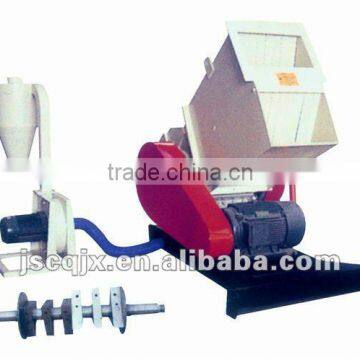

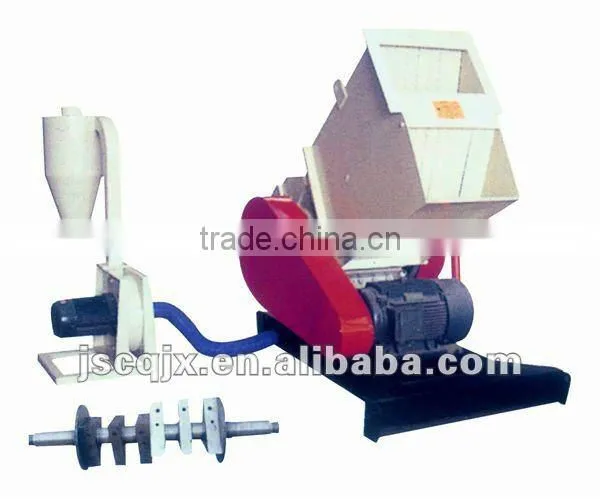

Machine image shows:
