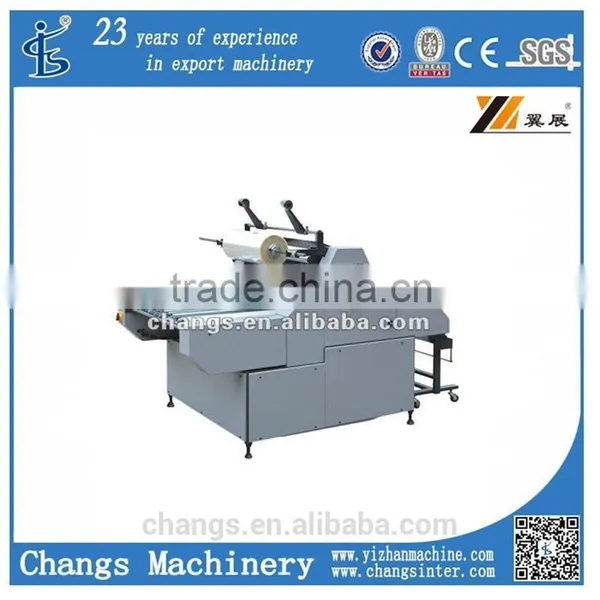

SRFM series semi automatic water-based film laminator
- 20 Set / Sets per Month
- NINGBO
- T/T
- Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
- 1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
- 220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
- 400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
- 400mm 600w infrared quartz heating element carbon fiber quartz tubes
- 230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Cartons |
Packaging Material: | Paper | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | 220V/50HZ | Power: | 2.5KW | Place of Origin: | Zhejiang, China |
Brand Name: | YIZHAN | Model Number: | SRFM | Dimension(L*W*H): | 2500*1450*1700mm |
Weight: | 800kg | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
water-based film laminator
Application
It is used for water-base lamination
Configuration
1. It adopts conservational water-base glue and BOPP film or PET film to laminate paper products.
2. Manual paper feeding
3. SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.
4. Paper regulating plate can move left and right, and regulates manual paper feeding.
5. Glue supplying system supplies and recycles water-base glue automatically.
6. Dip coating saves glue and homogenizes coating much better.
7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
9. Automatic paper winder rolls up laminated paper. Winding speed is adjustable upon applications.
10. Phillip IR drying lamp is equipped for smooth working in humid and cold climate.
11. No paper protector stops the machine’s running when no paper occurs in paper conveying.
12. The winded paper is supported by a trolley, and then put on cutting machine for quick automatic cut, or cut by manual work.
Technical Parameter
Model | SRFM-720A | SRFM-900A |
Max Paper Width | 700mm | 880mm |
Paper Thickness | 80-500g/m2 | 80-500g/m2 |
Max Laminating Speed | 40m/min | 40m/min |
Voltage/Frequeney | 220V/50HZ | 220V/50HZ |
Total Power | 2.5kw | 3kw |
Total Weight | 800kg | 900kg |
Overall Dimensions | 2500*1450*1700mm | 2500*1700*1800mm |
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
