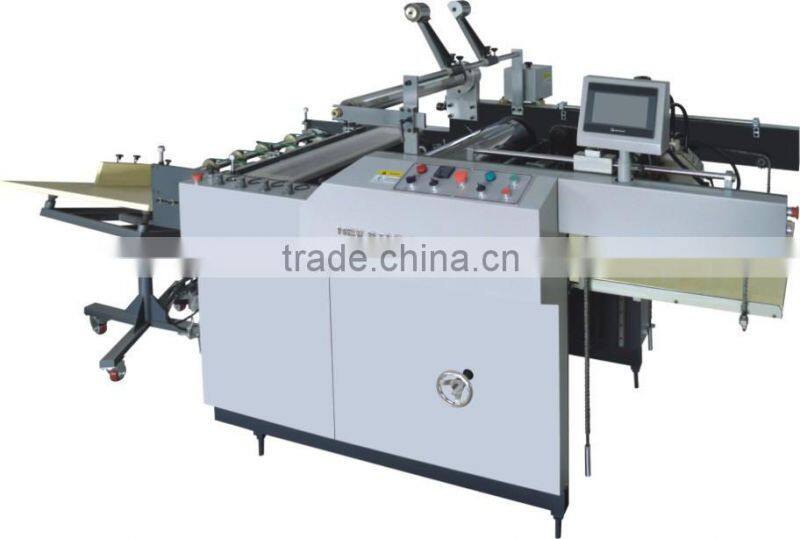

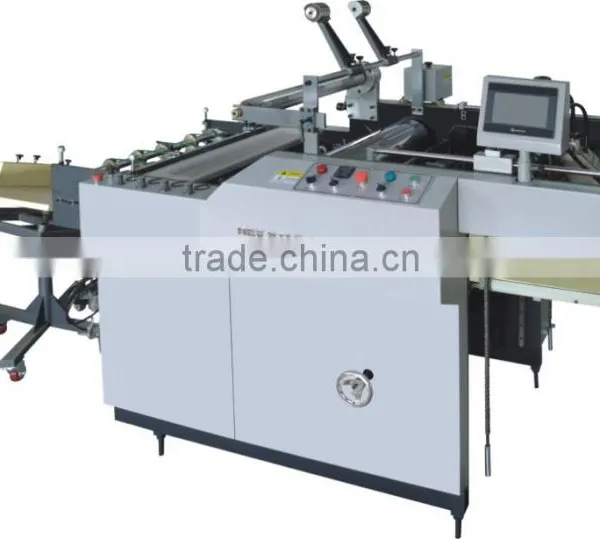

YFMA 520 Automatic Laminating Machine

Patent product

The patent number: 2011 ZL 2 2011. 1

Roller Diameter 200mm

Pressure:air pressure

Applications

Pre-glued film laminating machine

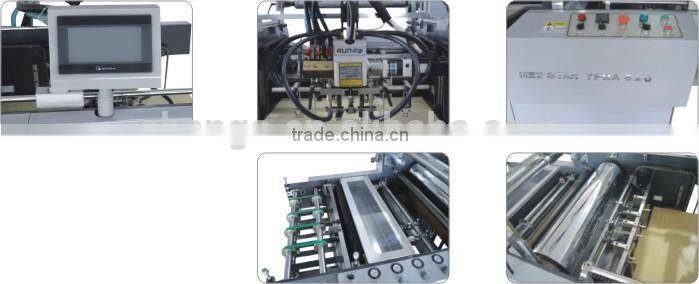

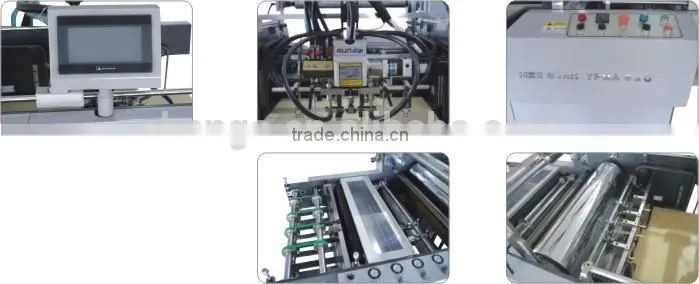

Configuration

·Stream feeder, with automatic laminating, sheeting and collecting.

·Oil free vacuum pump on stream feeder with both separating and forwarding suckers.

·Servo-controlled pump on stream feeder with both separating and forwarding sucker.

·Colorful touch screen interface, programable for sheet size and overlap.

·Oil heated for stable and precise PID electronic control of temperature.

·Film slitting and perforating system on feed roll.

·Sheet decurling device for production of flat laminated sheets.

·Strong pneumatic laminating pressure.

·Pneumatic film tension brake.

·Swing-away film loading onto airshaft.

·Whole machine is easily moved by pallet trolly for convenient storage in limited spaces.

Technical Parameters

Model                                     YFMA-520

Max laminating size               540x760mm

Min laminating size                240x290mm

Max speed                             30m/min

Laminating temperature        room temperature/Temperature  -130℃

Paper weight                        127-450g

Power                                   11kw

Total Weight                         1000kg

Overall Dimensions              3000x1450x1650mm
