Specifications
plastic drink trayplastic blister tray for cup/water bottle
plastic packing tray
plastic holder
ISO9000,SGS Certificate
plastic drink tray
OEM plastic blister tray for cup
customized plastic packing tray for water bottle
vacuum forming plastic tray/holder

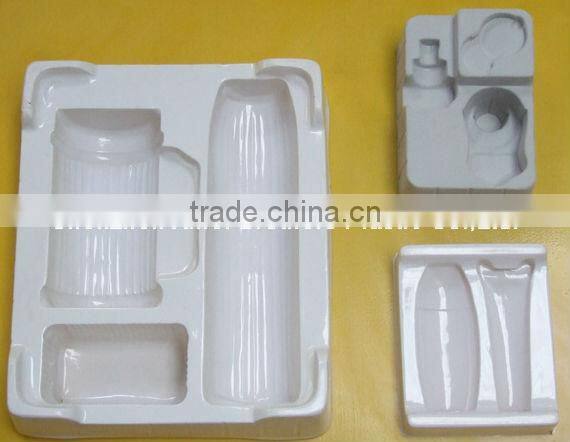

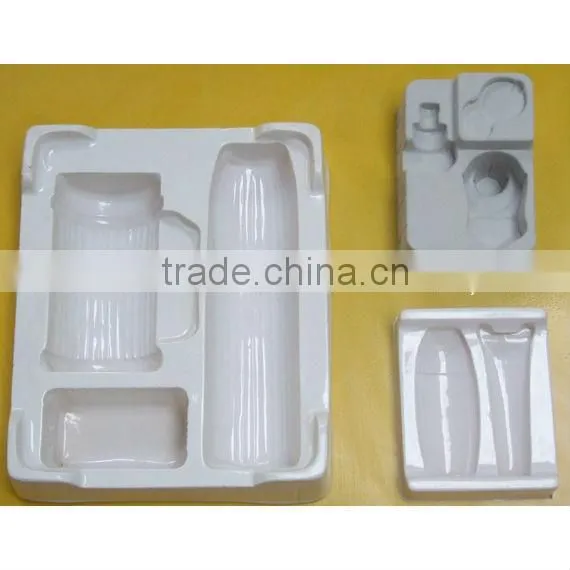

Product Picture:
Product Details:
Product name:plastic packing tray
Model number: AM 132070
Usage: for cup/water bottle packing
Material: PVC
Color: white
Thick: 0.3-0.8mm
Process: vacuum forming
Amei Brothers (Shenzhen )Co., Ltd | ||||
1 | Name | thermoforming plastic drink tray | ||
2 | Process | Vacuum-thermoforming | ||
3 | Size | the maximu m can be 2800*1500*1800mm, material sheet thickness can be 0.14-10mm | ||
4 | Color | Various color according to the customers’ requests, normal color is white and black. | ||
5 | Services | CNC prototype manufacturing, OEM service are offered | ||
6 | Shape | we can produce in request of customers | ||
7 | Materials: | ABS, PVC, PET, PETG, PC, PS, PP, PE, HIPS,PMMA, etc | ||
8 | Mould Time : | 7-12 days depend on the products design | ||
9 | Quality : | ISO9000 Certificate | ||
10 | Lead Time : | 10-45 workdays based on the different products | ||
11 | Package : | Export carton Package or As per Customers' Requirement | ||
12 | Trade Terms : | FOB Shenzhen, China | ||
13 | Payment term: | T/T, L/C at sight | ||
14 | More than ten Years Professional Manufacture Experience, Specialize in design and the manufacture of vacuum forming products. | |||
15 | OEM & ODM orders are welcome. | |||
I. What’s vacuum forming:
Also called custom thermoforming, pressure forming,plastic blister or plastics thermoforming, is a simple process that uses heat to soften a plastic sheet, and then vacuum to suck it down tightly against a pattern or mold. The plastic quickly cools and retains this shape.Example products include containers, lids, trays, clamshells and blister packaging for medical, food, electronics and consumer products.
II. Vacuum Forming Machined process:
1. Extruding plastic sheet: | ABS, HIPS, PP, PE, PC, PMMA resin granules are extruded or co-extruded into thermoplastic sheet or plate that textured, smooth, gloss or matt, fire retardant and UV resistant |
2. Vacuum forming: | After being heated, the plastic sheet is stretched onto or into a mould, and held against the mold by applying vacuum between the mould surface and the sheet to form designed shapes. |
3. Cooling to keep shape: | Once formed the plastic need to cool before being released from the mould. To speed up the cooling cycle, fans are fitted and activated once the plastic part is formed. |
4. Machine large products: | Our machine could be restructured to make larger plastic vacuum forming plastic products, with maximum dimensions of 3000*2000*800*10mm (L*W*H*T) |
5. Trimming edges: | Extra material is firstly trimmed before more accurate processing. Sawing is often used in the stages. Polishing is made additionally to smooth the edges. |
6. Drilling holes: | Drilling often follow the trimming. Other post forming processes include decoration, printing, strengthening, reinforcing and assembly. |
7. CNC Processing: | For more accurate and faster speed vacuum forming plastic products processing, CNC is often used. The machine is computer programmed to select correct cutting tools and angle to suit each area. |
8. Examination and checking: | Before packaging, all our vacuum forming plastic products will be carefully checked in terms of dimensions, surface finish, strength, color requirements and so on. |
9. Cleaning and Packaging | All vacuum forming plastic products are cleaned before packaging. Products are wrapped with plastic film to prevent scratches and cartoon boxes are used or other methods are applied as required. |
Vacuum forming process step:
1.Order materials
2.make the mould base
3.adjust the temperature
4.lay the sheet on the fixed position
5.heat the sheet
6.raise the mould
oling the mould
8.Demould
9.cutting the edges
10.CNC drilling
11.Trimming
12.Cleaning
13.packing
The edge of vacuum forming:
1.much cheaper mould cost than injection
2.much larger size than injection
3.much shorter mould time than injection
4.shorter lead time
Why the customers’ choose us:
* We have many years of experiences in this area
* ISO certified manufacturer
* High quality materials
* Full sets of process machine
* Short time for mold and samples
* MOQ in small quantity
* Lower tooling costs and competitive price
