Specifications

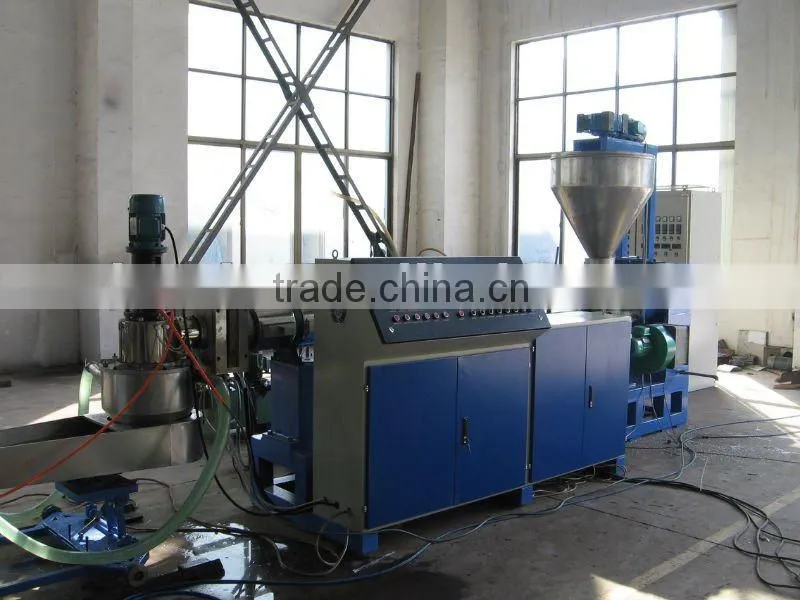

Extrusora Para Tubo PVC/Pe/PPR2 PVC pipe extrusion line is manufactured by our company in combination with advanced technology
20-630MM /PVC Pipe Production
Model | Screw diameter | L/D | Pipe range | Capacity | Main motor power | Total power | Line length |
U-PVC63 | 51/105 | 14.5:1 | 16-63 | 80-120 | 18.5 | 50 | 22 |
U-PVC160 | 65/132 | 14.5:1 | 75-160 | 200-250 | 37 | 100 | 22 |
U-PVC250 | 65/132 | 14.5:1 | 110-250 | 200-250 | 37 | 120 | 30 |
U-PVC315 | 80/156 | 15.25:1 | 160-315 | 300-400 | 55 | 200 | 30 |
U-PVC450 | 80/156 | 15.25:1 | 200-450 | 300-400 | 55 | 220 | 36 |
U-PVC630 | 92/188 | 17.86:1 | 315-630 | 400-800 | 90 | 350 | 42 |

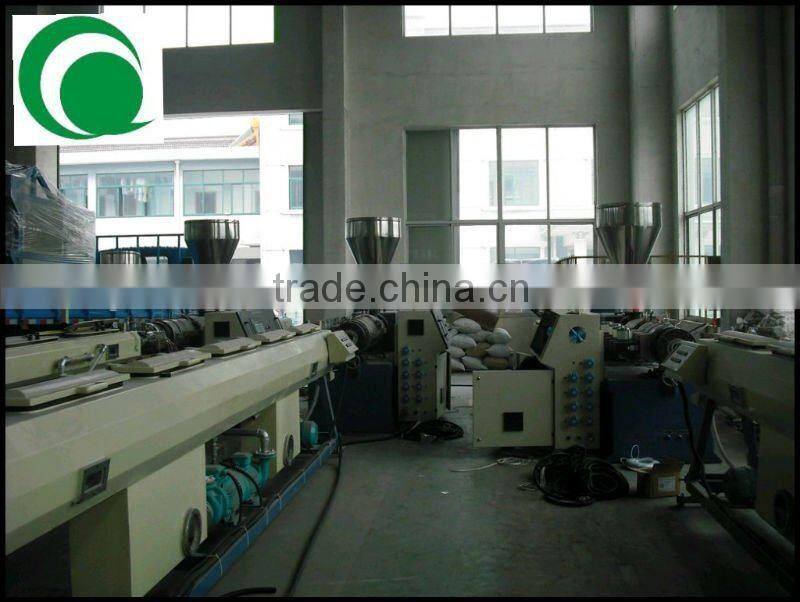

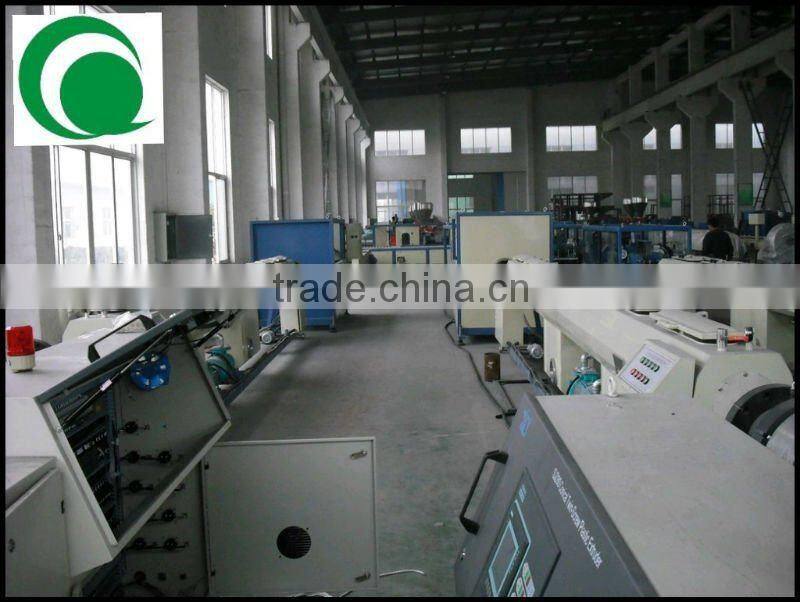

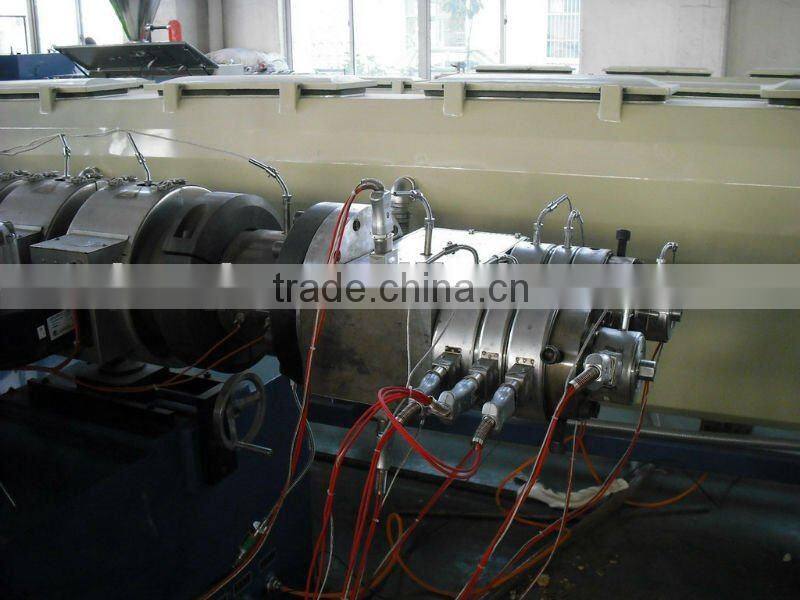

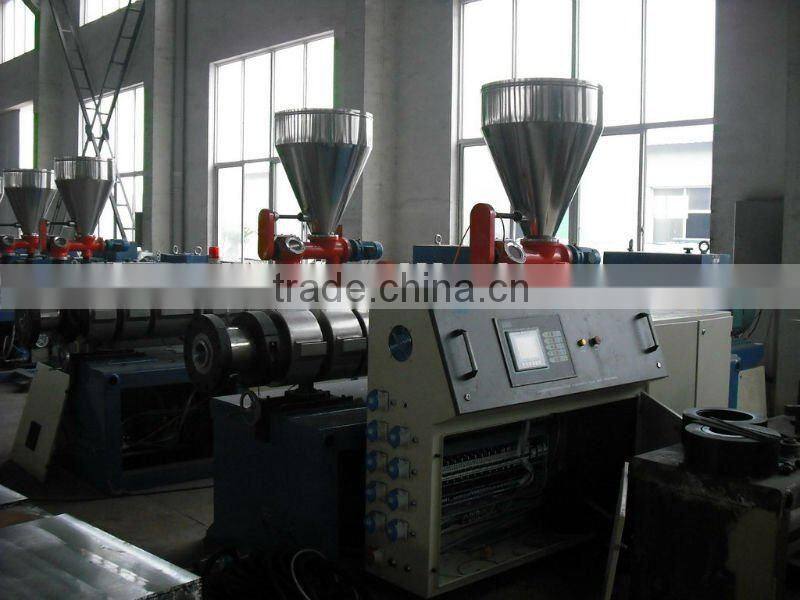

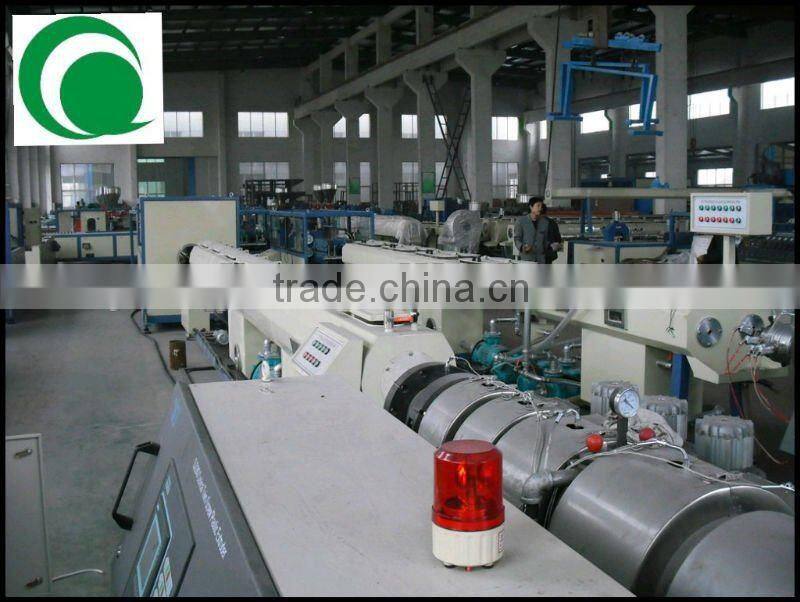

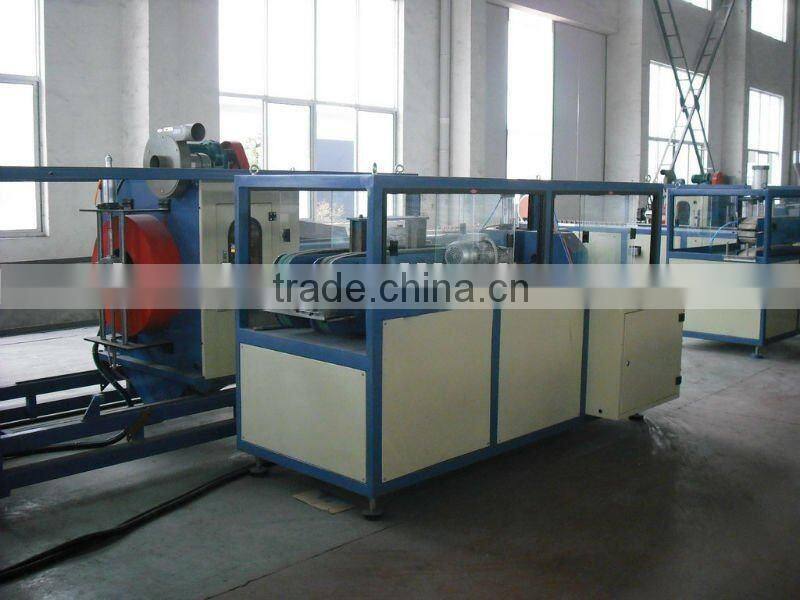

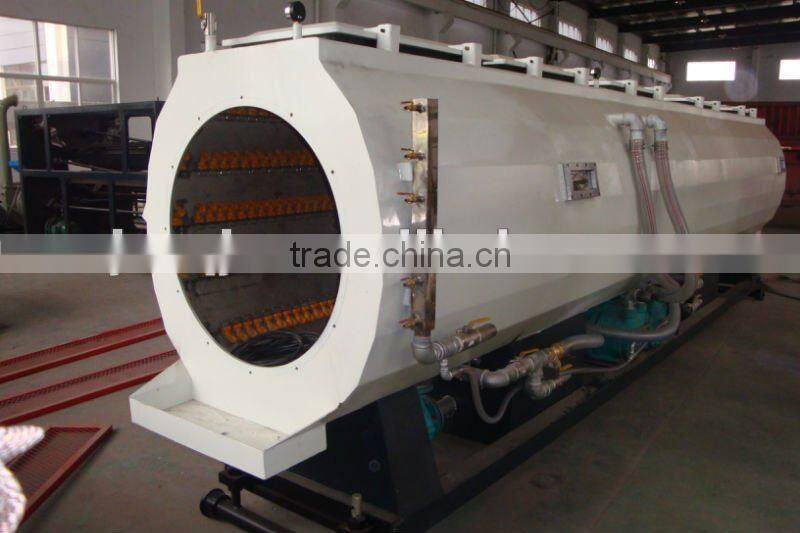

PVC pipe production line is mainly used in the production of water supply and drainage pipes , which used for agriculture and construction , cable coating and other fields , the complete line is consisted of extruder , vacuum calibrator , hauling machine ,cutter and tipping rack , hauling machine unit has come ways of hauling , such as caterpillar type, three-claw type , four-claw type , six-claw type and so on . there are also knife-lifting cutter and planetary cutter
if you need more information, please contact us without any hesitation.
of course, welcome to visit our company!
ZHANGJIAGANG CITY B&E MACHINERY CO.,LTD
TEL:0086-512-58668982
Skype:jscqjx
