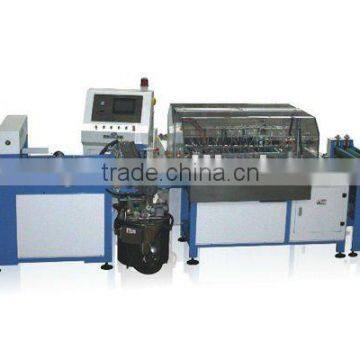

QNB-600 Automatic Case Making Machine
US$ 40,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Packaging Material:
Paper
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CP 600 Semi-auto LA MAQUINA PERFORADORAUS$ 1,000 - 1,000MOQ: 1 Set -
CP 600 Semi-auto Calendar Punching MachineUS$ 1,000 - 1,000MOQ: 1 Set
-
CP 600 Semi-auto Notebook Punching MachineUS$ 1,000 - 1,000MOQ: 1 Set
-
CTY-650C Double Side Edge Folding MachineUS$ 500 - 3,000MOQ: 1 Set
-
CTY-650C Semi- Auto Folding MachineUS$ 500 - 3,000MOQ: 1 Set
Condition
New
Packaging Material
Paper
Automatic Grade
Automatic
Place of Origin
Zhejiang, China
Model Number
QNB-600
Specifications
automatic case making machineThe feeder in this machine adopts backpush feeding system , which is controlled pneumatically,
automatic case making machine
Features
1.The feeder in this machine adopts backpush feeding system , which is controlled pneumatically,
and its structure is simple and reasonable.
2.The width between stacker and feeding table is adjusted concentrically in the centre.
2.The width between stacker and feeding table is adjusted concentrically in the centre.
The operation is very easy without tolerance.
3.New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding .
3.New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding .
And the cooper scraper is more durable.
4.Adopt imported ultrasonic paper tester for two pieces of layered paper, featuring in simple operation ,
4.Adopt imported ultrasonic paper tester for two pieces of layered paper, featuring in simple operation ,
to keep two pieces of layered paper from entering into the machine at the same time effectively.
5.The cardboard feeding table is controlled by linear guide line and stepping motor , its location is correct and quick.
6.In the cardboard feeding table, the machine can automatically stop when lack of paper to reduce the paper waste.
7. Transport belt is equipped with a powerfull sucker motor for more the paper without any movement.
8. Paper feeding and positioning system adopt imported highprecise photoelectric control device to make the paper
5.The cardboard feeding table is controlled by linear guide line and stepping motor , its location is correct and quick.
6.In the cardboard feeding table, the machine can automatically stop when lack of paper to reduce the paper waste.
7. Transport belt is equipped with a powerfull sucker motor for more the paper without any movement.
8. Paper feeding and positioning system adopt imported highprecise photoelectric control device to make the paper
and cardboard location more accurate.
9.The automatic fouredge folding machine adopts special automatic anglerepair ,
9.The automatic fouredge folding machine adopts special automatic anglerepair ,
edgerepair to ensure the qualification of finished products.
10. The whole machine adopts PLC control, featuring in simple operation.
10. The whole machine adopts PLC control, featuring in simple operation.
The troubles are displayed directly on the computer touch screen , which helps the operator easily remove them.
Main technical parameter
Model |
QNB-600 |
Length of paper |
230-1030MM |
Width of paper |
160-600MM |
Thickness of paper |
100-200g |
Thickness of cardboard |
1-3mm |
Speed |
0-25sheets/min. |
Dimension |
L8500XW2250XH1440mm |
Power supply |
11kw |
Power consumption |
7.5kw/380v |
Weight |
2700kg |
