Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > Small Scale Pvc Pipe Making Machine

Small Scale Pvc Pipe Making Machine

Name: Small Scale Pvc Pipe Making Machine
Brand: BE PVC PIPE MACHINE, BE
SKU: 106911651
Availability: InStock

Small Scale Pvc Pipe Making Machine thumbnail-1

Small Scale Pvc Pipe Making Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Pipe, Energy Supply Pipe

Plastic Processed:

PVC

Contact Supplier Request Quote Chat Now

Zhangjiagang City B

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Pipe, Energy Supply Pipe

Plastic Processed PVC

Screw Design Single-screw

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name BE PVC PIPE MACHINE, BE

Model Number SJSZ

Voltage 380V-600V

Power(W) 150KW-300KW

Dimension(L*W*H) 25MX2MX3M

Weight 10000KG-50000KG

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

PVC pipe machine
10 years experience
capacity:25-300kg/h
automatic line
best performance

PVC PIPE Machine price(pipe making machine)

PVC Pipe Machinery is spally designed for producing PVC pipe. It mainly includes twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.
Conical twin screw extruder: Advanced and unique screw design concept ensures the high efficiency extrusion of PVC material, Unique screw design combined with plasticization concept ensures flexible plasticization and super-high output extrusion, Advanced control system ensures the good running.

PVC extrusion die: innovative spiral flowing structure avoids fuse mark appearance on the bigger pipe, profile of ideal dwell time is full of the whole flow cross-section, Homogeneous melt distribution with selective temperature control guarantees outstanding product characteristics for PVC materials.

Vacuum calibration water tank: with visible stainless steel structure, With two-stage vacuum system in vacuum calibration tank for large diameter pipe, With accurate water level & water temperature automatic control system, With stable recycle liquid filter system.

Spray cooling water tank: special spray ensure fast cooling effect, stainless steel effects environmental concept, With accurate water level & water temperature automatic control system with advanced valve& element.

Hauling unit: Separate speed regulation and flexible hauling method, high-reliable transmission system ensures the high efficiency and high quality normal extrusion. Special integral transmission unit avoids asynchrony of individual transmission, Advanced four connecting rod structure makes self-centering of haul-off's locating, accurate pressure regulating system makes hauling power adjustable.

Cutting unit: Full-hydraulic design ensures flexible pressure in cutting state of pipes, Unique power input system ensures high reliability of planetary unit, With ultra silent & enforced sucking system, auto angle chamfer function.

Main technacial parameter:

Model number	BE16/63	BE20/110	BE50/160	BE75/250	BE110/315	BE200/450	BE315/630
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm
Max output	120kg/h	120kg/h	180kg/h	300kg/h	450kg/h	650kg/h	800kg/h
Production rate	1.5-15m/min	0.8-8m/min	0.5-5m/min	0.4-4m/min	0.3-2m/min	0.1-1m/min	0.07-0.7m/min
Extruder model	SJZ-50/105	SJZ-50/105	SJZ-55/110	SJZ-65/132	SJZ-80/156	SJZ-92/188	SJZ-92/188
Installed power	45kw	45kw	55kw	75kw	105kw	160kw	205kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm
Installation area	222.52.0m	242.82.0m	242.82.0m	302.82.2m	353.02.4 m	363.02.4 m	383.22.8 m

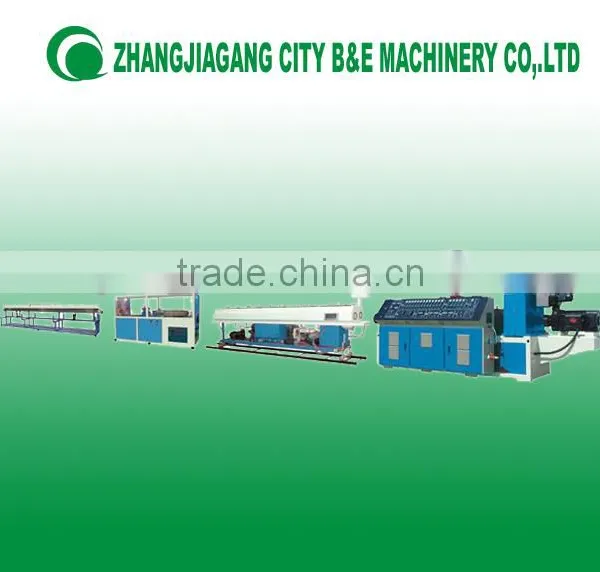

Machine image shows:

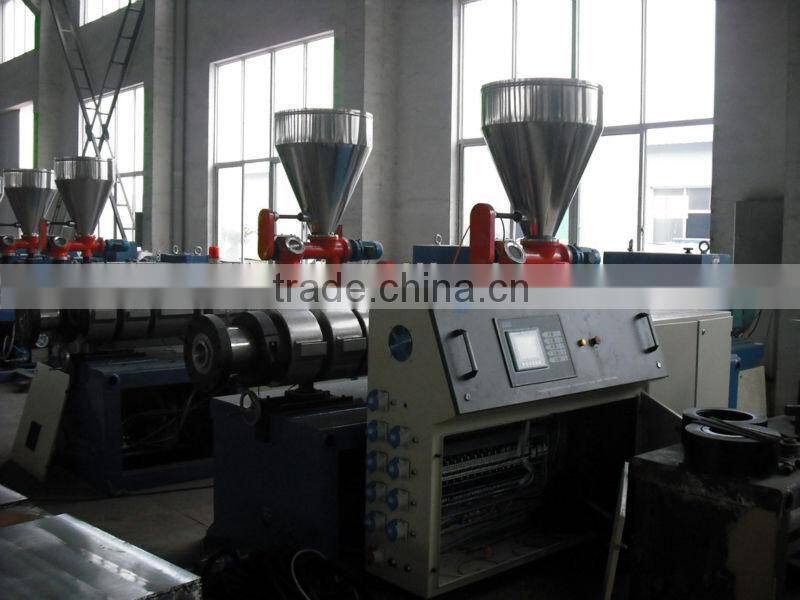

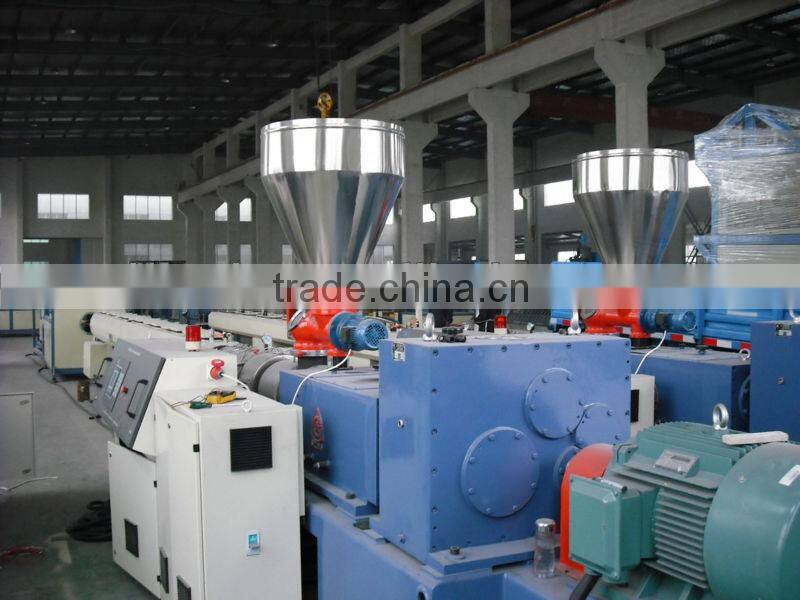

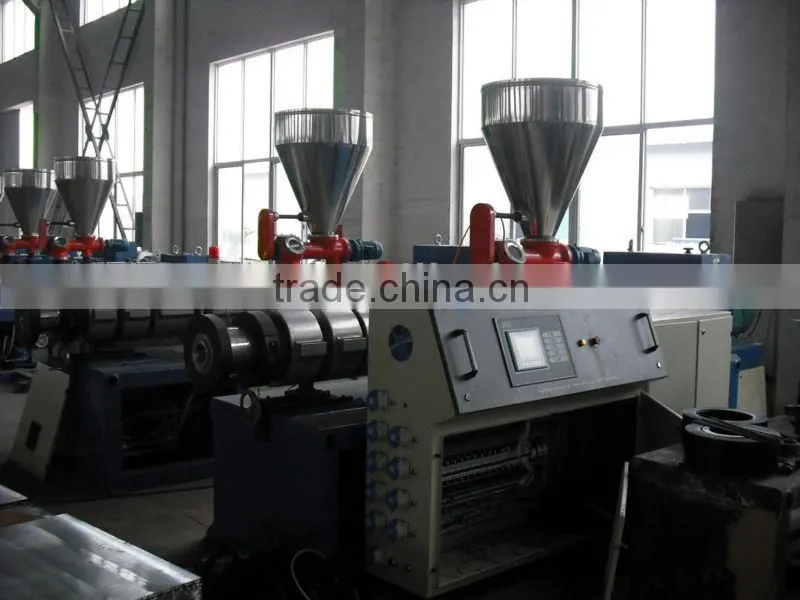

1.EXTRUDER

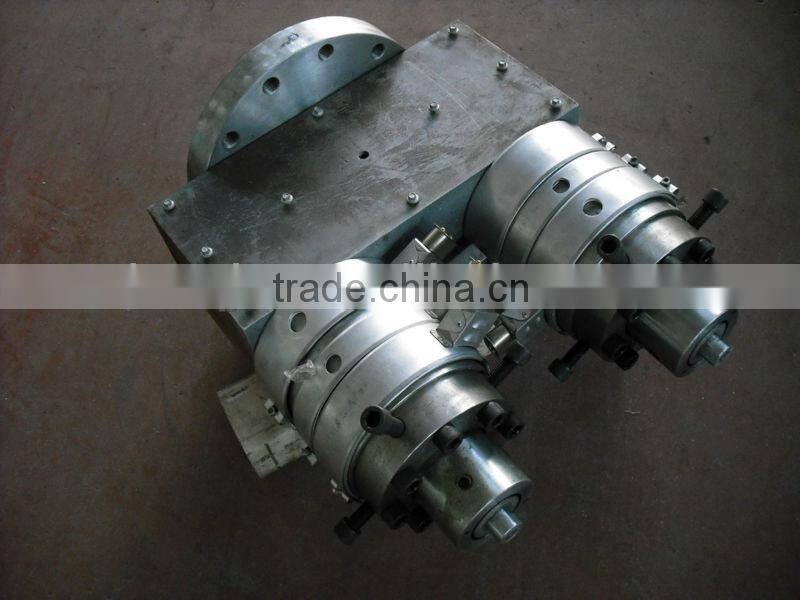

2.Mould

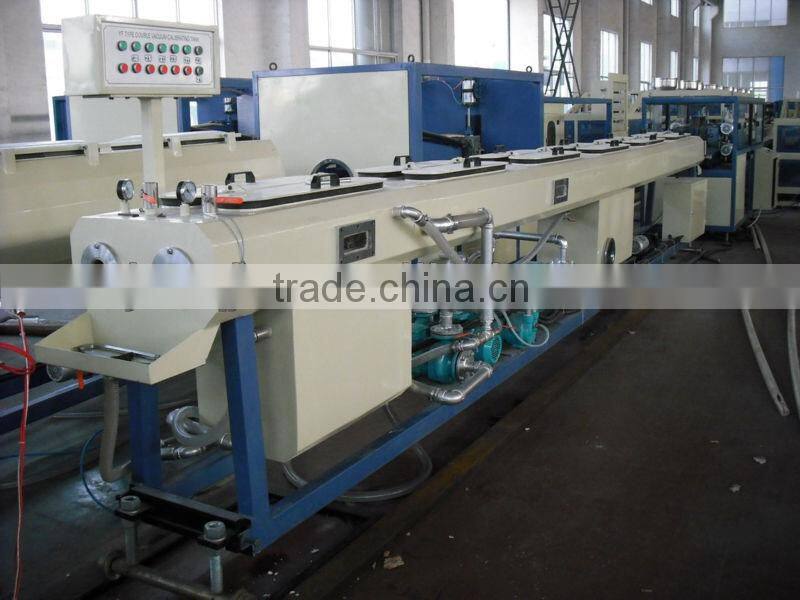

3. vacuum tank

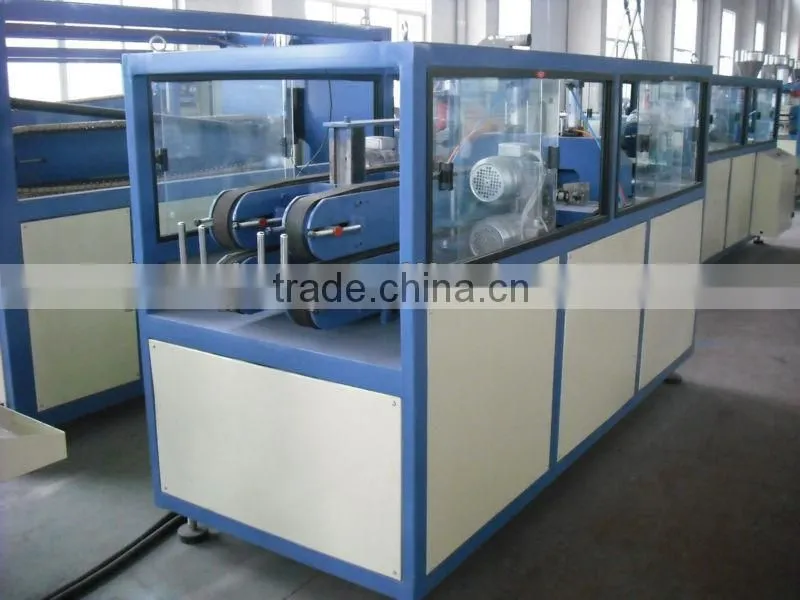

4.Tractor and cutting machine

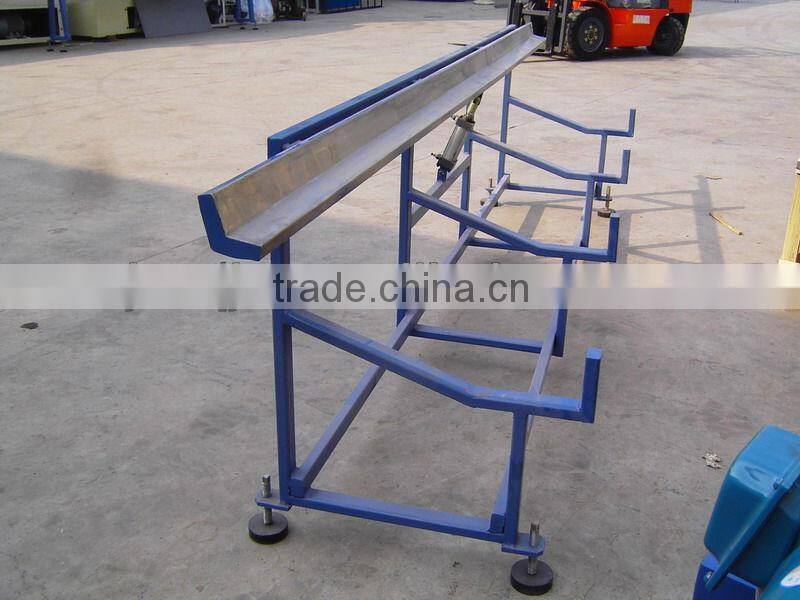

5. STACKER

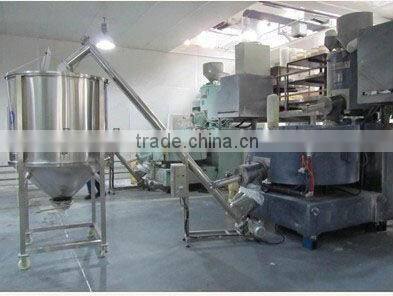

6. auxiliary machinery

a.loader

b.mixer

c. Silo

OUR SALE IN WORLD

if you need more information, please contact us without any hesitation.
of course, welcome to visit our company!
ZHANGJIAGANG CITY B&E MACHINERY CO.,LTD
TEL:0086-512-58668982
SKYPE:jscqjx

Mobile:86-189-15696352

Ms Linda
