Pex-a RAM Type Pipe Extrusion Production Line Machine/ram Extruder

Pex-a RAM Type Pipe Extrusion Production Line Machine/ram Extruder thumbnail-1
Pex-a RAM Type Pipe Extrusion Production Line Machine/ram Extruder thumbnail-2
Pex-a RAM Type Pipe Extrusion Production Line Machine/ram Extruder photo-1

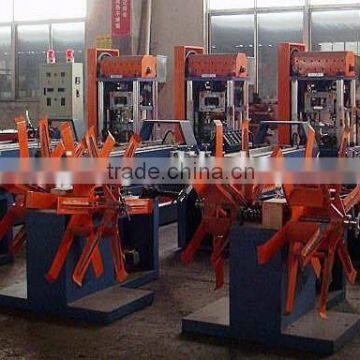

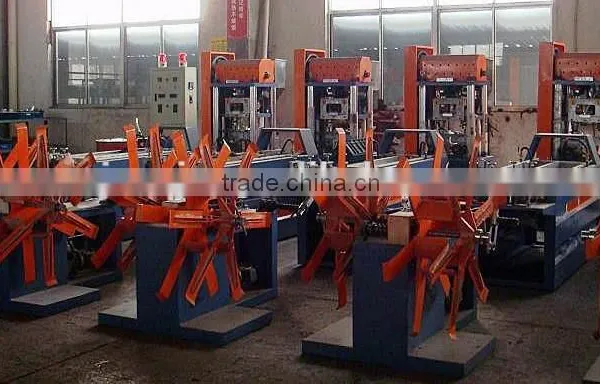

Pex-a RAM Type Pipe Extrusion Production Line Machine/ram Extruder photo-2
US$ 20,000 - 65,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Zhangjiagang City B
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Pipe
Plastic Processed PE
Screw Design Single-screw
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name BE
Model Number be-pex
Voltage 380V-600V
Power(W) 80KW
Dimension(L*W*H) 20MX2MX3M
Weight 5000KG
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

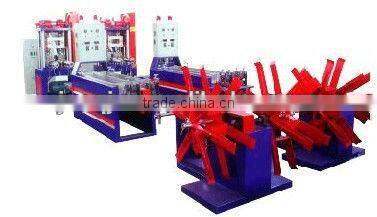

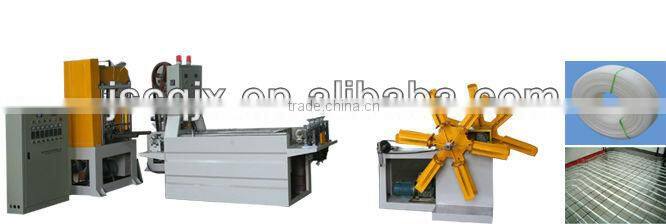

PEX Pipe Production Line

Configuration :

Piston extruder                 1 set
Control panel                  1 set
Cooling tank                 1 set
Hua-off machine                1 set
Winding machine                1 set
100L mixer                 1 set
Oven                  1 set
Mould Polisher                  1 set

 Pex-a RAM Type Pipe Extrusion Production Line Machine/ram extruder

 Pex-a RAM Type Pipe Extrusion Production Line Machine/ram extruder

Craft Procedure: material --- mixing --- feeding --- piston extruder --- printer --- cooling and forming --- haul off --- winding --- cut --- packing

Primary parameter

Extruder

 Main Motor

7.5kw

Feeding motor

0.06kw*2

Heating power

10kw

Hual-off machine

Motor

0.09kw*2

Winding machine

Motor

0.75kw

Mixer

100L

7/11kw

oven

150L

15kw



Specification of PEX Pipe Production Line

l Piston extruder

 Extruder frame: brace type

Piston rotating speed: 250 rpm

 Main motor: 7.5Kw

 Motor brand: SIEMENS

 Heating power: 10kw

 Feeding power:60w*2

 Production capacity: 30kw/hour

 Running status: stability,lower noise,no-dithering.

 Electric parts: DELIXI.

 Weight:2500kg



l Mould

Material :38CrMoAlA

Process method: Nitriding,hard erode

Nitriding depth: 0.5-0.7mm.

Heating circle: founding Aluminum.

Heating powder:9kw

Temperature control method: automatic



l Printing,cooling,hual-off 3 in 1 machine

Cooling tank material: stainless steel

Calibrater: brass

Hual-off wheel: wearable rubber wheel

Length:2300mm

Pipe diameter: 16-32mm

Motor power: 90w*2 (from Taiwan)

Maximum hual-off strength:40KN

Hual-off speed:0.5-4m/min

Diameter of wheel: 240mm

Weight:300kg



l Double wheel winding machine

Motor: 0.75kw

Winding length: 300m

Weight: 200kg



  Power: 7/11kw( SIEMENS)

Effective volume: 75L

Mandril rorating speed: 400-800rpm

Production capacity: 40kg

Weight:200kg



l Mould oven

Oven volume: 750*750*600

Heating power:15kw

Control method: automatic

Weight: 200kg



l Mould polisher

Rotating speed: 42rpm

Power: 0.55kw

Equiped two claw clutch device

Pex-a RAM Type Pipe Extrusion Production Line Machine/ram extruderPex-a RAM Type Pipe Extrusion Production Line Machine/ram extruderPex-a RAM Type Pipe Extrusion Production Line Machine/ram extruder
