Specifications
flexo printer and die cutterThis machine can fulfill the processes such as paperboard printing (1~4colors), creasing, edge tri

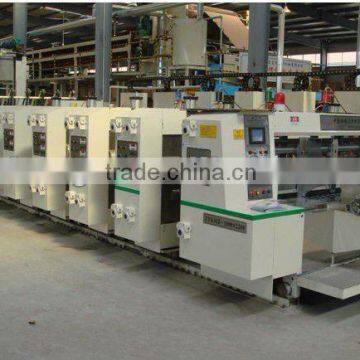

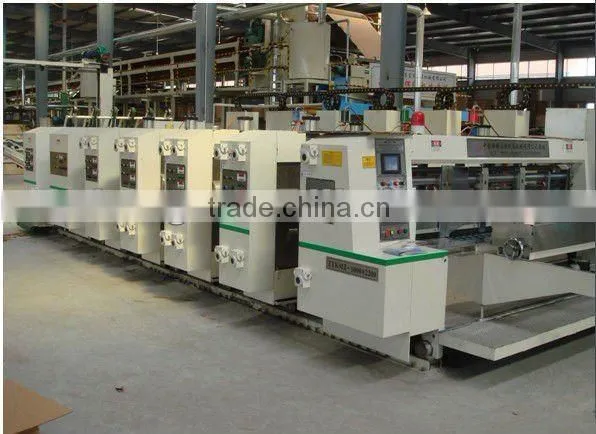

flexo printer and die cutter
ZYKM II Machine Performance
1 This machine can fulfill the processes such as paperboard printing (1~4colors), creasing, edge trimming and die cutting etc in one cycle automatically.
2 Vacuum suction push-plate auxiliary paper feed of precision and reliability.(Customers are able to choose the Korean belt type leading feeder or rolling type leading feeder.)
3 The main motor adopts conversion control and is stable in run.
4 Touch screen PLC control including the functions of count register, speed indication, skip paper feed and alarm etc.
5 The phases of printer and die cutter are displayed with digital meter.
6 Printing unit, die cutting unit are all equipped with reset devices.
7 A rubber recovery system and differential speed compensation device are added in die cutting roller.
8 Main transmission gear moves precisely, for the sake of the part is made of quality steel alloy and teeth precisely milled to render them stable performance.
9The bearings are purchased from THK Japan and other well known makers in China.
10 The major electric control components are purchased from Schneider France, Omron Japan, Elco Swiss and well known makers in Shanghai Renmin China.
11 The key free connecting ring features in high precise transmission and accurate printing and registering.
12 The main motor start protection: first press the start button, the machine will not move, then will start after pressing the button second time 3 seconds later for confirmation so as to eliminate the mistaken operation.
13 Each machine unit engagement/disengagement and pneumatic lock are done automatically in turns; the alarm sounds when units are shifting to secure the operators safety; units brake automatically to secure the printing at original position;
14 Quick gap manual micro regulating self locker with features of easiness and fastness.
15 Emergency stop protection: the emergency switch is installed nearby for more protection.
16 The splashing lubrication enables oil stored in every gear oil tank and circulated with oil pump to facilitate constant splashing oiling.
SPECIFICATION
Model |
1200x2000 |
Max.machine speed (Rear kick type (Pcs/min) |
120 |
Max.machine speed(roller type,belt type (Pcs/min) |
180 |
Max. paper feeding size (mm) |
1200x2000 |
Min. paper feeding size (mm) |
320x650 |
Max. printing area (mm) |
1200x1900 |
Printing plate thickness (mm) |
7.2 |
Printing accuracy (mm) |
± 0.5 |
Die cutting accuracy (mm) |
± 1 |
