Specifications
PVC Pipe Belling Machine1.Air cool or water cool
2.steady and reliable
3.high effiency
4.reasonable price

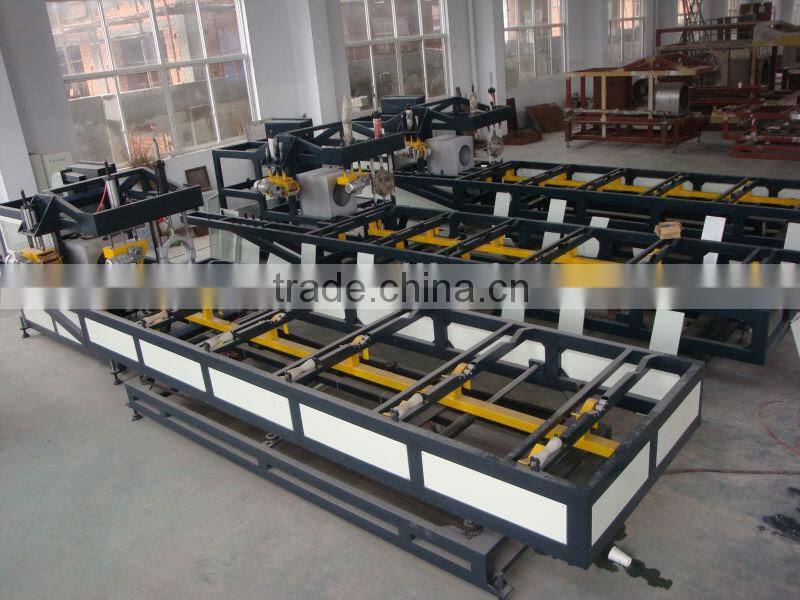

Automatic PVC Pipe belling machine
SGK series FullAuto Pipe Belling machine with hauling device and program interface concerned is used with extruding machine. It is also used solitarily. While expanding pipes, the machine adopts translation. The action is steady and correct. It does not damage pipes. The machine adopts electric heating type. Each oven is equipped with heating core. The shaping method adopts expandingend shaping. The size of pipe mouth is correct. On its panel, there is a transfer switch for belling solvent type socket (Straight port) and seal loop type pipe socket( R type). The choice of expanding pipe types is very convenient. The technological adaptability is strong. All the key electric control elements are imported. The system performance is steady and reliable.
Model | GSKS63 | GSK250 | GSK315 | GSK400 | GSK710 | GSKB250 |
Diameter range | 20-63mm | 63-250mm | 110-315mm | 160-400mm | 315-710mm | 63-250mm |
Expanding Ways | Double tube flaring | Vacuum setting
| Vacuum setting
| Vacuum setting
| Vacuum setting
| Vacuum setting
|
Cooling ways | Air-cooled or water cooled
| water cooled
| water cooled
| water cooled
| water cooled
| water cooled
|
Heating power bit
| 2 | 2 | 1 | 1 | 1 | 1 |
Heating Power | 4 kw | 4 kw | 7.2 kw | 15.6 kw | 25.4 kw | 24 kw |
Total power | 5.53 kw | 10.1 kw | 12.1 kw | 22 kw | 36.2 kw | 25 kw |
Dimensions
| 7290x2000x1540 | 7290x2000x1540 | 7590x2200x2280 | 7590x2300x2280 | 7590x2350x3100 | 7290x2000x1740 |
1.Automatic belling machine
2.Semi-automatic belling machine

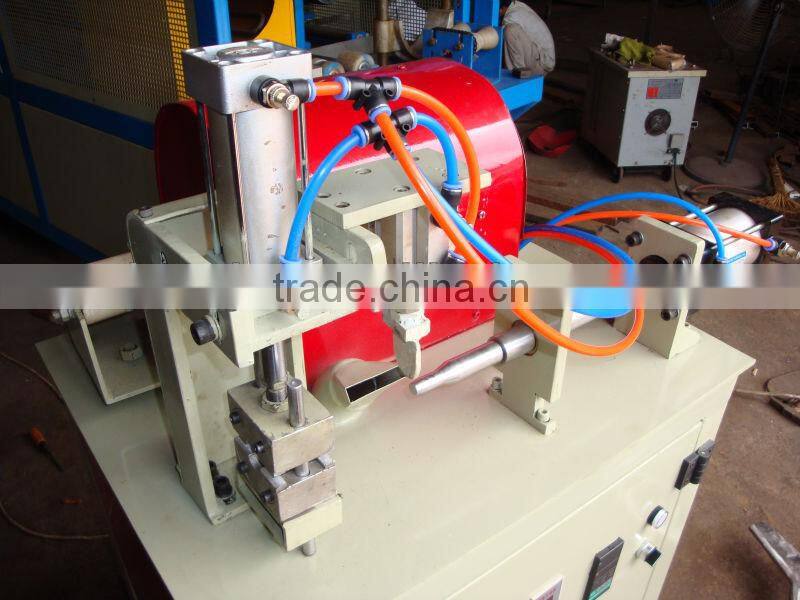

3. manual pvc pipe belling machine

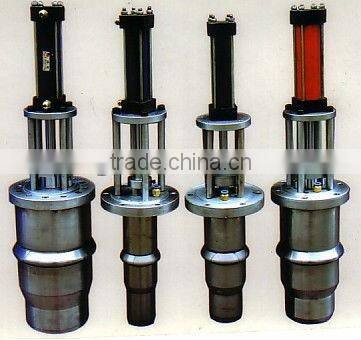

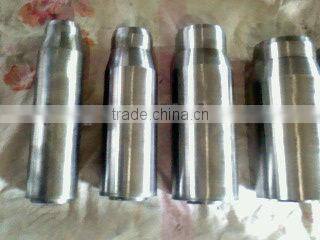

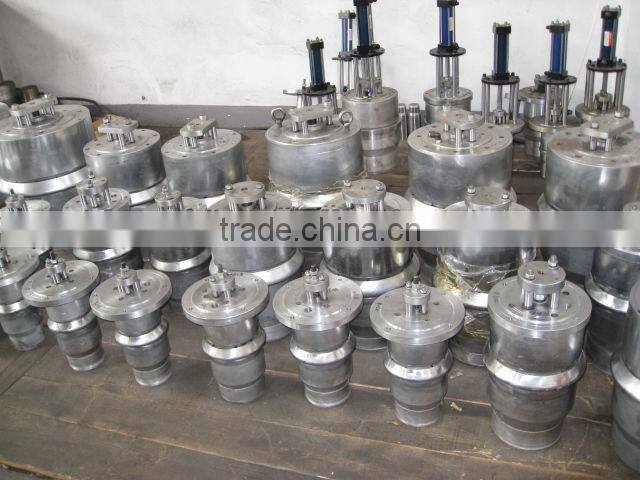

4.PIPE BELLING Mould
R type U type
