Help Center100kg/H-500KG/H Recycled Plastic Granulation Machine
Related Products
-
PVC Hot Cut Recycled Granulation MachineUS$ 2,000 - 30,000MOQ: 1 Set -
SJZ65/132 Complete Plastic GranulatorUS$ 22,000 - 330,000MOQ: 1 Set
-
SJZ80/156 Complete Plastic Pellet Production LineUS$ 22,000 - 330,000MOQ: 1 Set
-
Line Pelletizing peUS$ 3,000 - 88,000MOQ: 1 Set
-
PP,PE Waste Plastic Palletizing MachineUS$ 38,000 - 120,000MOQ: 1 Set
Specifications
plastic granulating line1.used in granulating of PVC resins
2.hot cutting
3.different types
4.output:50-400kg/h
PVC granulating line
PVC granulating line is mainly used in hot cutting of PVC and other plastic.
High cutting precision and efficiency.
Friendly installation and movement.
Application
With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production. It uses pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably.
MTechnical Parameter (FYI):
| Model | SJSZ45 | SJSZ51 | SJSZ65 | SJSZ80 |
| Power | 75KW | 75KW | 90KW | 100KW |
| Production capacity | 120kg/h | 120kg/h | 280kg/h | 380kg/h |
| Grain diameter | Ø3mm | Ø3mm | Ø3mm | Ø3mm |
| Total length of production line | 12m | 12m | 15m | 15m |
plastic granulating production machine Advantages:
1.Complete degassing, suitable for moist film and printed film
2.Having 2 filtrations, ensuring the purity of final pellets
3.Extrude more evenly, having more stable output and better pellets
4.CE Certificate
5.Long service life
6.Customized
7. Support installation and operation training at Buyer’s plant.
plastic granulating production machine Manufacturing Process:
Feeding materials onto the Belt Conveyor –materials being pre-heated, cut, mixed and compacted in the Cutter Compactor /Agglomerating machine – being squeezed evenly in the Extruder – coming out from the machine head after venting and filtering system Hydraulic screen changer –being cut by Water ring pelletizing sytem –being dried by Dewatering system – being trasnferred into the Silo –the End
Technical parameters for reference:
Model |
Screw Diameter(mm) |
L/D |
Capacity(PE) |
Capacity(PP) |
BE-SJ85 |
85 |
33 |
150-200 |
100-150 |
BE-SJ100 |
100 |
33 |
250-350 |
200-300 |
BE-SJ130 |
130 |
33 |
450-550 |
400-500 |
BE-SJ160 |
160 |
33 |
650-800 |
600-750 |
QT-ML180 |
180 |
28 |
750-1200 |
700-1000 |

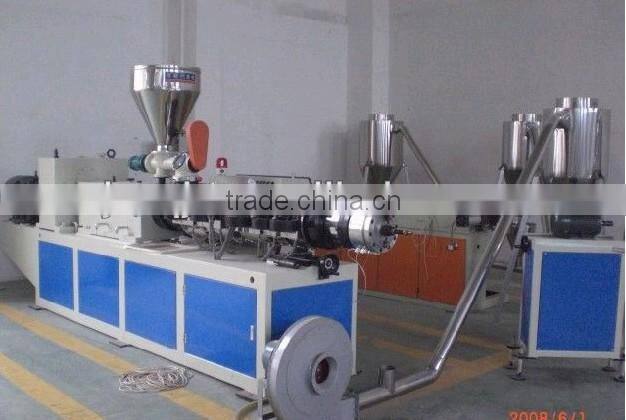

plastic granulating production machine detailed photo
