Help CenterRCGFR484812 Hot Filling Line
Related Products
Specifications
hot filling line is used in filling hot fruit juice,tea and other beverage,and in filling normal temperature fillingTechniacl Specifications
THE NUMBER OF WASHING, FILLING CAPPING 48-48-12
PRODUCING CAPACITY:
THENUMBER OF BOTTLE(500ML)/HOUR 20000-24000
APPLICABLE BOTTLE SPECIFICATIONS(MM) H=170-320 Φ=500-1000(330∼1500ml)
PRESSURE(MPA) 0.25-0.3
GENERAL POWER(KW) 7.5+0.45+0.25
OVERALL DIMENSION(MM)( L×W×H) 4850×3650×3400
WEIRHT(KG) 12000
Products Introduction

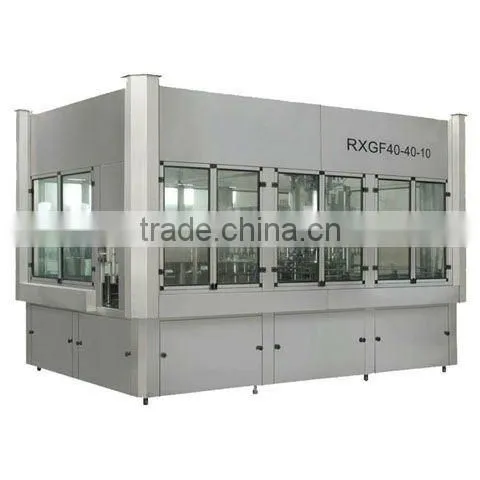

RCGF series of juice hot filling 3-in-1 unit is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea and other beverage, if you replace some parts, it can also be used in filling normal temperature filling.
Beverage Machinery-Equipment characteristics
Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japans Mitsubishi, France Schneider, OMRON.
Equipped with a constant temperature system, temperature controlled and circumfluent automatically.
