Specifications

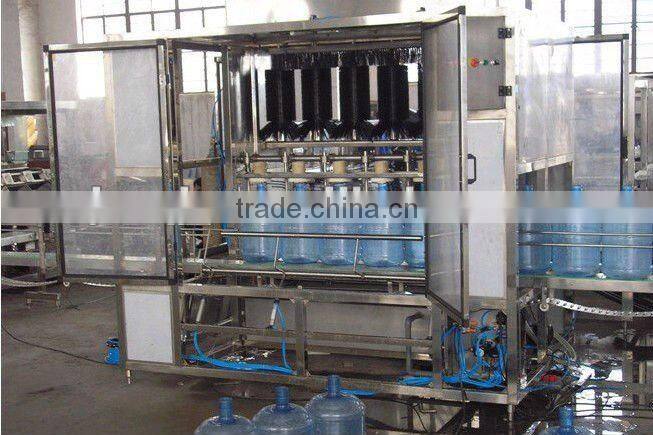

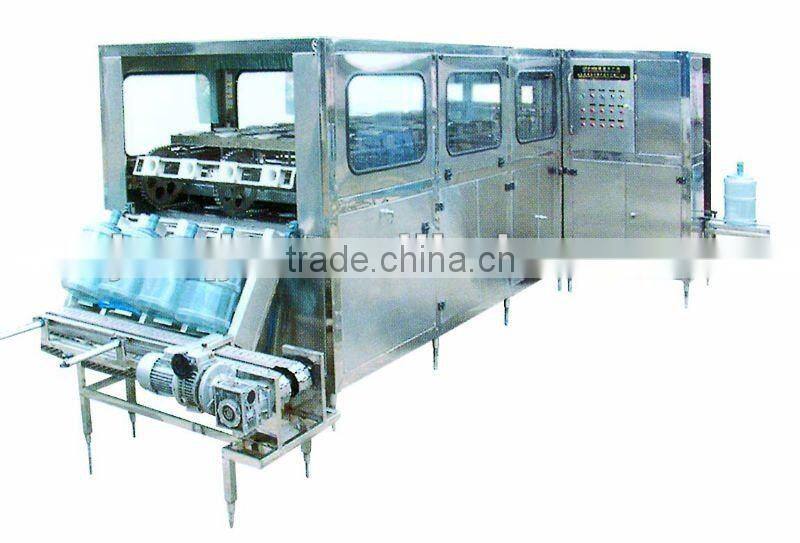

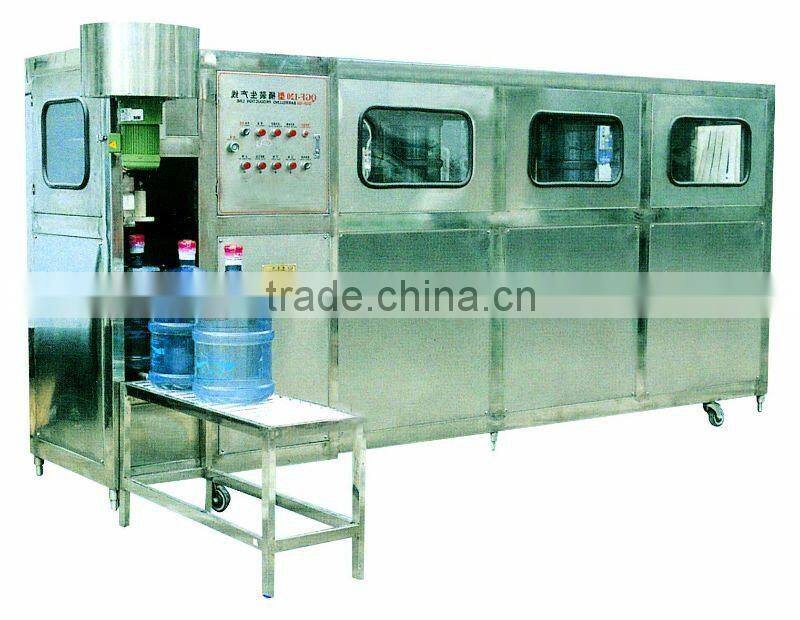

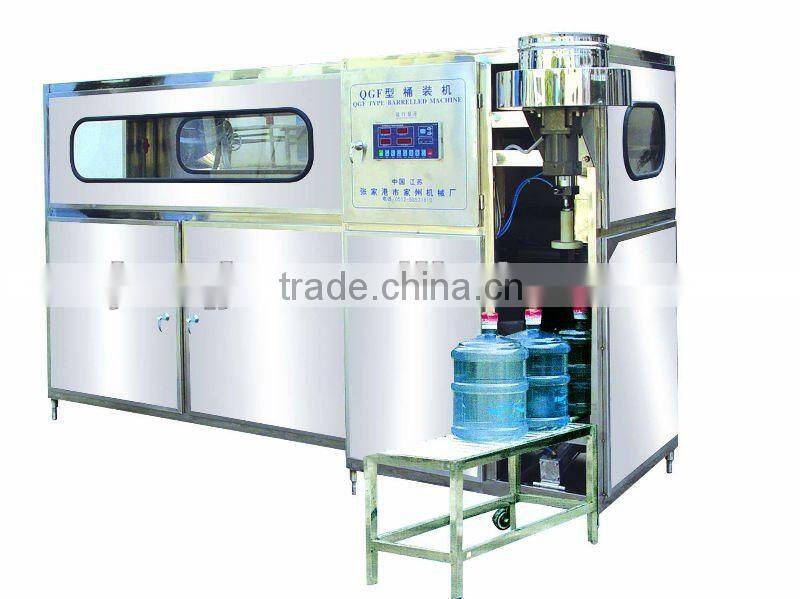

3 gallon water filling machinecapacity:120-900BPH/ bottle volume:19 L
material:ss304
control:PLC
ring pump:nanfang china
5 gallon filling machine
This 5 gallon filling machine specially producc es 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.

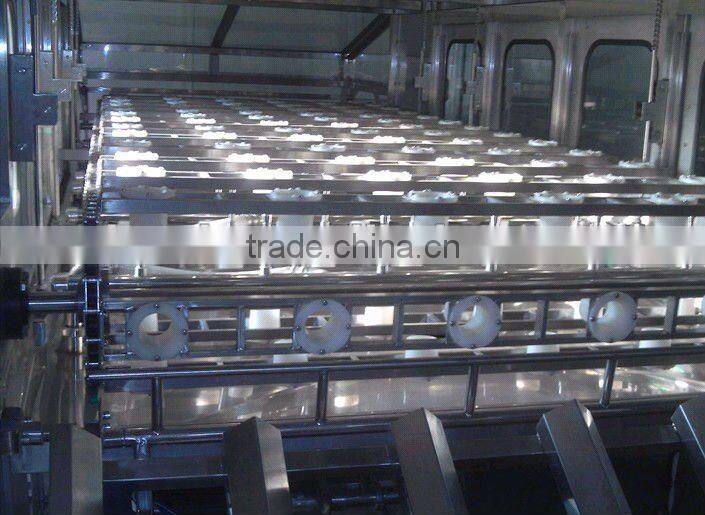

ltintegrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.
The sealer can seal bottle caps automatically.
5 gallon water filling machine technical parameter:
Model |
QGF-120 |
QGF-300 |
QGF-450 |
QGF-600 |
Filling heads |
1 |
2 |
3 |
4 |
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
Barrel size(mm) |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
Capacity(B/n) |
100-120 |
200-240 |
300-400 |
600 |
Gas pressure(mpa) |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
Gas consumption(m3/min) |
0.37 |
0.6 |
0.6 |
1.2 |
Motor power(Kw) |
1.75 |
3.22 |
4.8 |
8.5 |
Rated voltage(V) |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Outline dimension(mm) |
3790×650×1550 |
3550×800×1800 |
3550×1200×1800 |
3650×1500×1800 |
Weight(kg) |
800 |
2800 |
4000 |
5500 |
Dateils
