Help CenterCustomized Anodise T Shape Industrial 6000 Series Grade Aluminum Extrusion Profile
Related Products
-
Customized Anodized Surface T Shape Aluminum Profile Aluminum Extrusion Grade 6063 ProfileUS$ 2,300 - 3,500MOQ: 500 Tons -
T3-T8 Temper and 6000 Series Grade Aluminum ProfileUS$ 2,000 - 10,000MOQ: 1 Ton
-
Customized Anodized Surface T3-T8 Temper Alloy Aluminum Extrusion Grade 6063 ProfileUS$ 2,300 - 3,500MOQ: 500 Tons
-
Clear Anodized Custom al Profile ExtrusionUS$ 2,000 - 10,000MOQ: 1 Ton
-
Clear Anodized Custom Aluminum Profile ExtrusionUS$ 2,000 - 10,000MOQ: 1 Ton

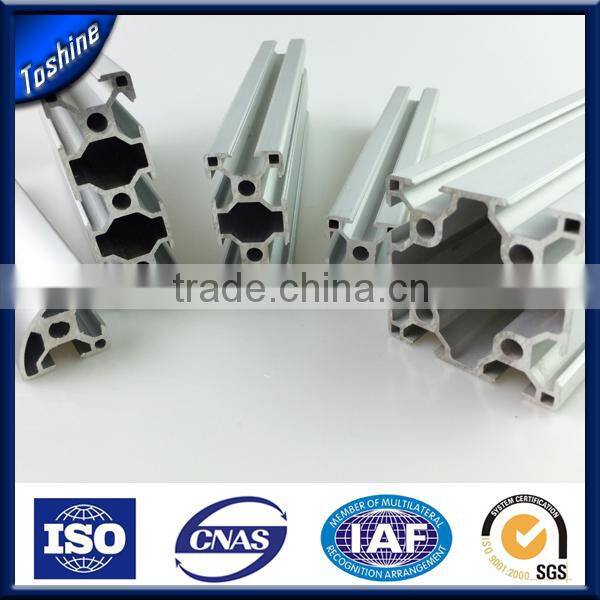

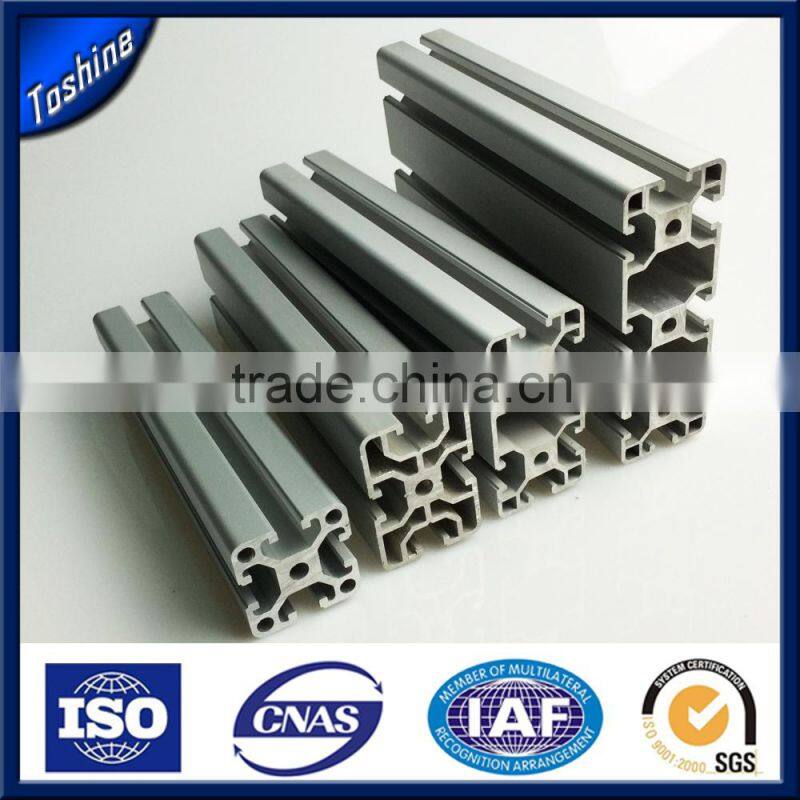

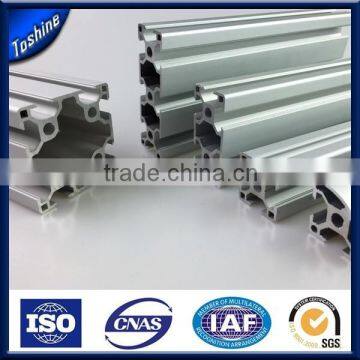

T slot aluminum profile
1. Aluminum extrusion profile
2. Aluminum alloy: 6000 series
3. Guaranteed quality and good price
4. Good surface finish, no burr or dirt
Item Name | T slot aluminum profile |
Material Grade | Alloy 6000 Series |
Temper | T5—T6 |
Technology | Aluminum Extrusion |
Surface treatment | Mill finish, anodizing, powder coated, sandblasting, electrophoresis etc |
Color | Silvery white, black, golden, champagne, dark bronze or according to your requirement |
Normal Anodizing thickness | 8-12 micro |
Normal Power Coating thickness | 60-100 micro |
Shape | Square, Round, Flat, or according to customers' drawings |
Length | The Standard length of export is 5.8m , Anodizing 6.5 meters at most, Mill finish 13 meters at most
|
Deep processing | cutting, drilling, punching, bending etc |
2D&3D Design | 1: 4 Designers in design and development department 2: Auto CAD, 3D, AI, SLD, PRT. IGS, PDF, JPEG etc. |
Engineering& Tooling | 1: 8 Engineers in Mold Shop. 2: Use high tonnage extruder, Wire EDM, CNC, Drilling machines etc. |
Quality Control | 1.ISO Approved. 2.Inspection at Site. 3.Inspection Before Shipping. 4.Testing Machine. |
Packing details | 1.EP Paper inside for each profile separate then craft paper outside 2.EP Paper inside for each profile separate then carton paper then pallet 3. Shrink film 4.wooden carton |
Delivery | 15-25days after receiving down payment |
Payment Term | T/T, L/C |
Chemical Composition of T slot aluminum profile
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Al | |
Unit | Total | ||||||||||
6063 | 02-06 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
6061 | 0.4-0.8 | 0.8-1.2 | <0.7 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.15 | <0.05 | <0.15 | Surplus |
6060 | 0.-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | <0.1 | <0.05 | <0.15 | Surplus |
6005 | 0.6-0.9 | 0.4-0.6 | 0.35 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | <0.15 | Surplus |
Technical Data of T slot aluminum profile for building Modulares platform
Alloy | Temper | Thickness | Tensile Strength | Yield Strength | Vickers Hardness | Webster Hardness |
6005 | T6 | ≤5 | ≥270MP | ≥225MP |
|
|
T6 | 5<e≤10 | ≥260MP | ≥215MP |
|
| |
T6 | 10<e≤25 | ≥250MP | ≥200MP |
|
| |
6060 | T6 | ≤3 | ≥190MP | ≥150MP |
|
|
T6 | 3<e≤25 | ≥170MP | ≥140MP |
|
| |
6061 | T6 |
| ≥265MP | ≥245MP | HV≥58 | HW≥8 |
6063 | T5 |
| ≥160MP | ≥110MP | HV≥58 | HW≥8 |
T6 |
| ≥205MP | ≥180MP | HV≥58 | HW≥8 |

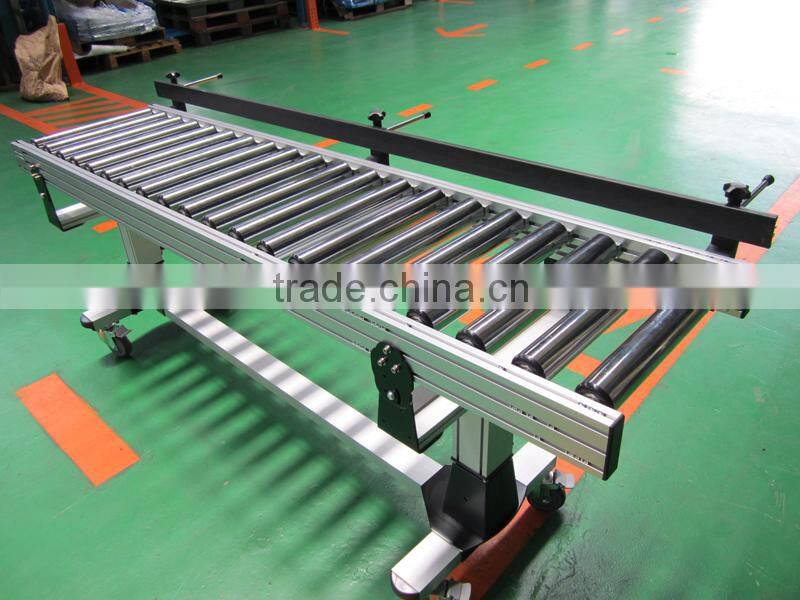

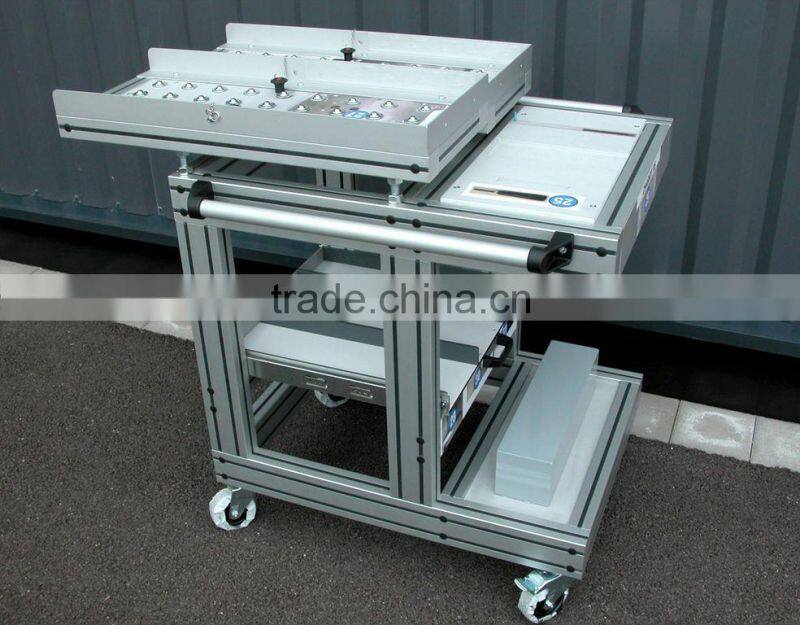

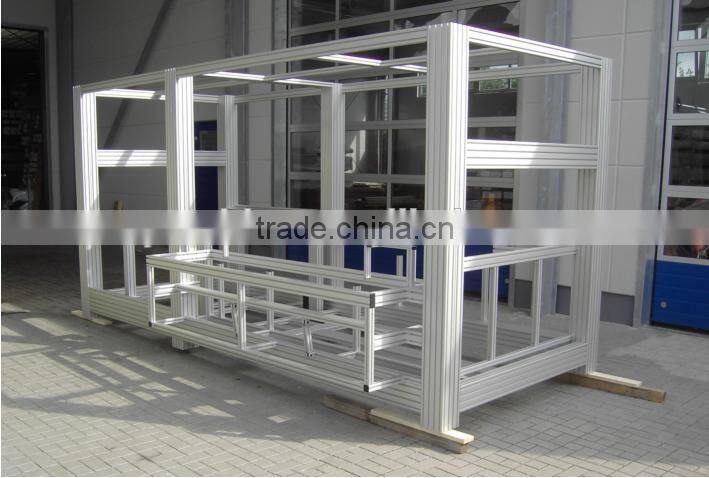

Our Aluprofile is used for aluminum display and exhibition shelf ,aluminum conveyors system,production line, work bench, machine frames, LINEAR MOTION FRAME and stairway-platform-system and so on.
1. We are professional enterprise, intergrates mould design, Aluminum T- Slot Extrusion Framing , production, fabrication and marketing.
2. Our products could be in different colors and diverse surface treatment.
3. We have nearly 2000 varieties products to meet your requirement.Customized is also welcomed!
4. We have rich experience in exporting Aluprofile bosch !
5. In one word: we provide competitive price, good quality Aluminum Bosch profile !
- simple and easy installation
- high brightness and hardness
- strong coated adhesion
- anti-scratch,smoothness
- high weather resistance, high corrosion resistance,good wear resistance
- Various shapes and colors available.
- · Short delivery time
- Experienced quality control&quality warranty
Our professional technical team will satisfy your technical requirement.
- New aluminum profile R&D
- Design drawing as your requirement
- Material testing
- Hardness testing
- Stress analysis
- Aluminum billet inspection
- After extrusion inspesction
- Surface treatment inspesction
- Packing inspection
1. Q: What’s your MOQ?
R: Usually the MOQ of each Aluminum profile is 500kgs, but it will be different according to dimension of aluminum profile.
2. Q: How many kinds of products of aluminum you have?
R: Our main products are Mill finish, Powder Coating, Anodizing, Electrophoresis, Wood Grain transfer, Broken Bridge etc.
3. Q: Can you supply OEM services?
R: We can supply OEM services.
4. How about the mould cost (extrusion die charge)?
R: The mould cost will depend on the dimension of aluminum profile.
5. Q: Do the prices of all the colors are the same with same surface treatment?
R: No. About Powder coating, the bright-color will higher than white or gray. About the Anodizing, colorful will higher than silver, and black higher than colorful.
6. Q: Which way you calculate the weight?
R: We can choose both theoretical weight and actual weight, base on the clients requirements.
"Total Quality Assurance and Customer Satisfaction" are the central goals of our company.
We accept small orders as well as blanket orders and will stock and ship per your schedule.
If you've been distressed to find a good supplier, we will be your best choice.
What are your waiting for?
Contact US NOW !
we are the factory of aluminum extrusion heatsink
