Home > Products > Bottle water production line > Touch Screen Small scale water bottling machine/Line/equipment

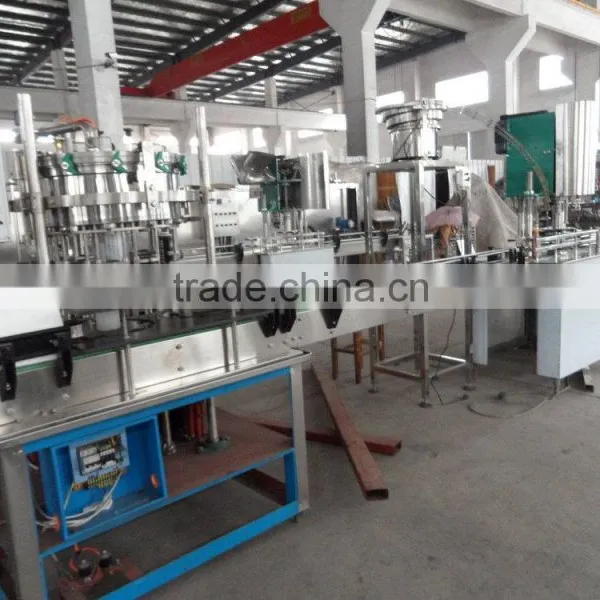

Touch Screen Small scale water bottling machine/Line/equipment
- 1 Set / Sets per Month
- shanghai
- T/T
-
Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
-
PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
-
Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
-
Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
-
Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
-
high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Barrel, Bottles |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220v-600v | Power: | 4.98kw | Place of Origin: | Jiangsu, China |
Brand Name: | BE | Model Number: | DGCF Zhangjiagang Filling Machine /Equipment | Dimension(L*W*H): | according customer required |
Weight: | 2000-20000kg | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Purified Water Machine / Equipment is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
| |||||||
Model | CGF16126 | CGF18186 | CGF24248 | CGF32328 | CGF404010 | CGF484812 | CGF606015 |
Heads | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 48-48-12 | 60-60-15 |
Production | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
Suitable bottle diameter(mm) | φ=50-100 H=170 330-1500ml | ||||||
Spraying pressure | 2~3 | ||||||
Motor power | Main | Main motor | Main motor | Main motor | Main motor | Main motor | Main motor |
Power of | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 |
overall dimension | 2100x | 2460x | 3100x | 3500x | 4600x | 5200x | 6500x |
Weight | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | 9800 |
MAIN TECHNICAL STANDARDS for Soft drink
Model | DCGF-14-12-5 | DCGF-18-18-6 | DCGF24-24-6 | DCGF32-32-8 | DCGF40-40-10 | DCGF60-50-15 |
Production Capacity(bph)(500ml) | 2000-3000 | 4000-5000 | 6000-8000 | 9000-11000 | 12000-14000 | 16000-18000 |
Filling Pressure(Mpa) | ≤0.4 | |||||
Applicable Bottle Type | Bottle DiameterΦ50-Φ100mm;Height150-320mm;Volume330-1500ml | |||||
Applicable Cap Shape(Mpa) | Plastic Screw Cap | |||||
Gas Source Pressure(Mpa) | 0.6 | |||||
Gas Consumption(m3/min) | 0.2 | 0.3 | 0.4 | 0.5 | 0.55 | 0.6 |
Total Power(kw) | 4.6 | 5.03 | 6.4 | 8.07 | 9.56 | 11.18 |
Total Weight(kg) | 2500 | 4200 | 5800 | 7000 | 9000 | 12000 |
Dimension(L*W*H)(mm) | 2350*1700* 2150 | 2830*2030* 2030 | 3220*2400* 2600 | 3450*2510* 2710 | 3800*2800* 2710 | 4510*3400* 2900 |
MAIN TECHNICAL STANDARDS for JUICE
Model | RCGX14-12-5 | RCGX16- 16-6 | RCGX18-18-6 | RCGX24- 24-6 | RCGX32- 32-8 | RCGX40-40-10 | RCGX60- 50-15 |
Production Capacity(bph)(500ml) | 3000 | 5000 | 6000 | 10000 | 13000 | 15000 | 18000 |
Way of Filling | Gravity Micro Negative Pressure Filling | ||||||
Filling Feedback Quantity | ≤8% | ||||||
Applicable Bottle Type | Bottle DiameterΦ50-Φ100mm;Height150-320mm;Volume330-1500ml | ||||||
Gas Source Pressure(Mpa) | 0.6 | ||||||
Gas Consumption(m3/min) | 0.2 | 0.2 | 0.4 | 0.4 | 0.5 | 0.55 | 0.6 |
Total Power(kw) | 4.6 | 4.6 | 5.4 | 6.4 | 8.07 | 9.58 | 11.8 |
Total Weight(kg) | 2500 | 3200 | 3800 | 5200 | 6500 | 8000 | 11000 |
Dimension(L*W*H)(mm) | 2350*1700* 2150 | 2600*1830* 2030 | 2830*2030* 2030 | 3220*2300* 2600 | 3450*2510* 2710 | 3800*2800* 2710 | 4510*3400* 2900 |
