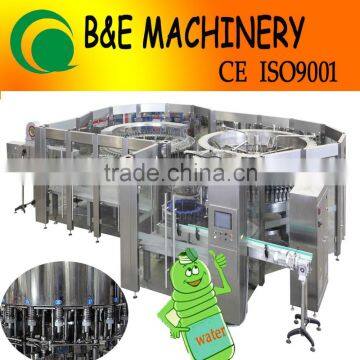

Help CenterFactory Price Automatic Mineral Water Bottling Plant Price/drinking Water Plant Price Quality Choice
Related Products
-
Factory Price Semi Automatic Water Bottle Filling Machine /filling Capping MachineUS$ 8,000 - 30,000MOQ: 1 Set -
Automatic Purified Water Machine For Pure Water /bottled Water/water Purification MachinesUS$ 8,000 - 30,000MOQ: 1 Set
-
PET Bottled Lemonade Drink Filling Machine/ PET Bottle Cola Plant/PET Bottled Lemonade Making MachineUS$ 8,000 - 30,000MOQ: 1 Set
-
Bottled Pure Water Production Line PriceUS$ 9,000 - 300,000MOQ: 1 Set
-
Factory Price Drinking Water Making Machine/equipment/plant for PET Bottle Water PlantUS$ 8,000 - 30,000MOQ: 1 Set

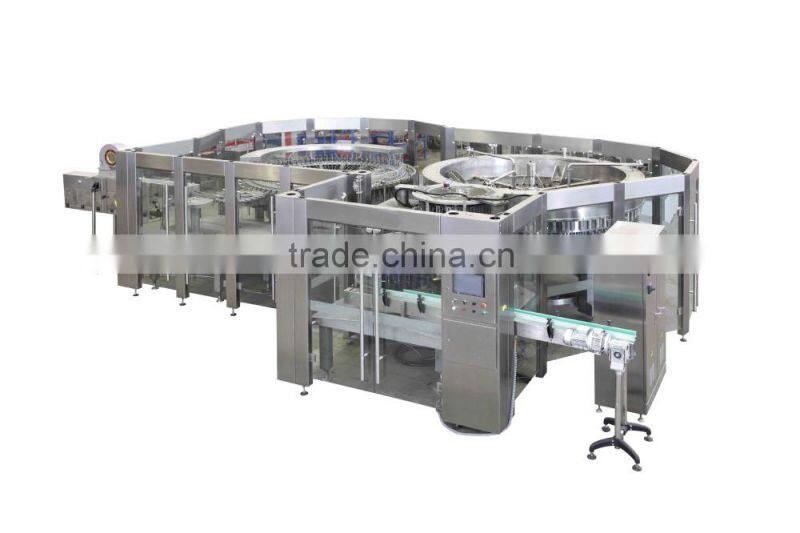

Purified Water Machine / Equipment is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
| |||||||
Model |
CGF16126 |
CGF18186 |
CGF24248 |
CGF32328 |
CGF404010 |
CGF484812 |
CGF606015 |
Heads |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
48-48-12 |
60-60-15 |
Production |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-30000 |
Suitable bottle diameter(mm) |
φ=50-100 H=170 330-1500ml |
||||||
Spraying pressure |
2~3 |
||||||
Motor power |
Main |
Main motor |
Main motor |
Main motor |
Main motor |
Main motor |
Main motor |
Power of |
0.75 |
1.1 |
1.5 |
2.2 |
2.2 |
3 |
4 |
overall dimension |
2100x |
2460x |
3100x |
3500x |
4600x |
5200x |
6500x |
Weight |
2500 |
3500 |
4200 |
5500 |
6800 |
7600 |
9800 |
MAIN TECHNICAL STANDARDS for Soft drink
Model |
DCGF-14-12-5 |
DCGF-18-18-6 |
DCGF24-24-6 |
DCGF32-32-8 |
DCGF40-40-10 |
DCGF60-50-15 |
Production Capacity(bph)(500ml) |
2000-3000 |
4000-5000 |
6000-8000 |
9000-11000 |
12000-14000 |
16000-18000 |
Filling Pressure(Mpa) |
≤0.4 |
|||||
Applicable Bottle Type |
Bottle DiameterΦ50-Φ100mm;Height150-320mm;Volume330-1500ml |
|||||
Applicable Cap Shape(Mpa) |
Plastic Screw Cap |
|||||
Gas Source Pressure(Mpa) |
0.6 |
|||||
Gas Consumption(m3/min) |
0.2 |
0.3 |
0.4 |
0.5 |
0.55 |
0.6 |
Total Power(kw) |
4.6 |
5.03 |
6.4 |
8.07 |
9.56 |
11.18 |
Total Weight(kg) |
2500 |
4200 |
5800 |
7000 |
9000 |
12000 |
Dimension(L*W*H)(mm) |
2350*1700* 2150 |
2830*2030* 2030 |
3220*2400* 2600 |
3450*2510* 2710 |
3800*2800* 2710 |
4510*3400* 2900 |
MAIN TECHNICAL STANDARDS for JUICE
Model |
RCGX14-12-5 |
RCGX16- 16-6 |
RCGX18-18-6 |
RCGX24- 24-6 |
RCGX32- 32-8 |
RCGX40-40-10 |
RCGX60- 50-15 |
Production Capacity(bph)(500ml) |
3000 |
5000 |
6000 |
10000 |
13000 |
15000 |
18000 |
Way of Filling |
Gravity Micro Negative Pressure Filling |
||||||
Filling Feedback Quantity |
≤8% |
||||||
Applicable Bottle Type |
Bottle DiameterΦ50-Φ100mm;Height150-320mm;Volume330-1500ml |
||||||
Gas Source Pressure(Mpa) |
0.6 |
||||||
Gas Consumption(m3/min) |
0.2 |
0.2 |
0.4 |
0.4 |
0.5 |
0.55 |
0.6 |
Total Power(kw) |
4.6 |
4.6 |
5.4 |
6.4 |
8.07 |
9.58 |
11.8 |
Total Weight(kg) |
2500 |
3200 |
3800 |
5200 |
6500 |
8000 |
11000 |
Dimension(L*W*H)(mm) |
2350*1700* 2150 |
2600*1830* 2030 |
2830*2030* 2030 |
3220*2300* 2600 |
3450*2510* 2710 |
3800*2800* 2710 |
4510*3400* 2900 |
