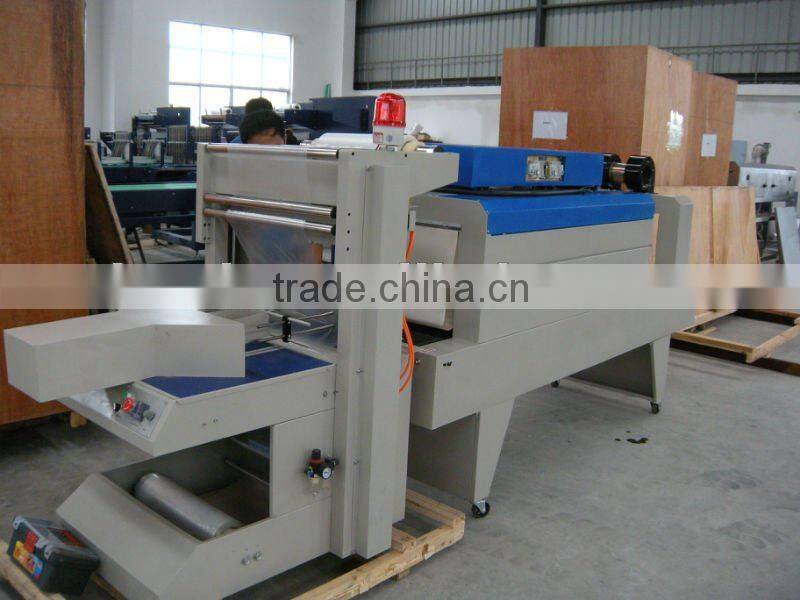

PE Film Shrink Packaging Machine

PE Film Shrink Packaging Machine thumbnail-1
PE Film Shrink Packaging Machine photo-1
US$ 13,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang City B
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Power 22KW
Place of Origin Jiangsu, China
Brand Name CQ
Model Number CQ-6545 PE Film shrink wrapping machine

Specifications

PE Film shrink packaging machine
it is used for bottle
package type 2x3 3x4 4x6
power:22 kw
weight:2000kg

PE Film shrink packaging machine



Ⅱ.  Main technical parameters

1. Operating voltage: three phase five line system 380V/50~60Hz

2. Working pressure: 0.6~0.8Mpa

3. Shrinking room: L×W×H=1800×650×450(mm)

4. Package efficiency: 10~15 packs per min

5. Sealing and cutting temperature: 140°C~160°C

6. Shrinking temperature: 200°C~280°C

7. Package material: PE

Film roll width: ≤580mm

Film thickness: 0.06~0.12mm

Film diameter: ≤400mm

8. Working noise: ≤65dB

9. Total power: 22KW

1) Product conveying motor: YS6334 1400r/min 370W 2pcs

2) Motor for conveying finished product: YS6334 1400r/min 370W 1pc

3) Roll-laying motor for upper and lower film:YS5624-RV30 1400r/min 90W  2pcs

4) Cooling motor: 200FZY2-D 1400r/min 65W  6pcs

5) Drying oven motor: YSJ8012 1400r/min 750W 2pcs

6) Heating pipe for sealing and cutting: 700W 1pcs

7) Heating pipe for drying oven: Max:21kw/220V 1.8kw/pc

8)Normal working:15kw/220V 1.8ke/pc

9). Total weight: 1500kg

10). Boundary dimensions: L×W×H=5500×3200×2100(mmPE Film shrink packaging machine

PE Film shrink packaging machinePE Film shrink packaging machinePE Film shrink packaging machinePE Film shrink packaging machine
