Specifications
Automatic shrink packaging machineit is used for bottle
package type 2x3 3x4 4x6
power:22 kw
weight:2000kg

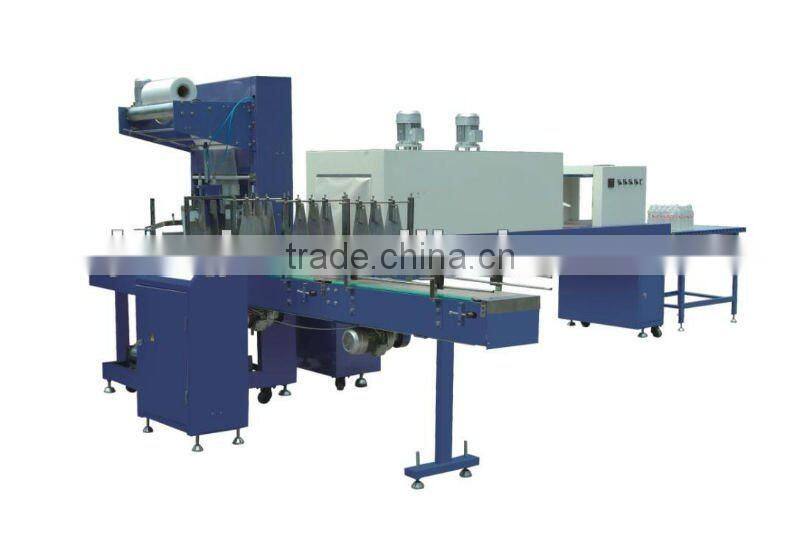

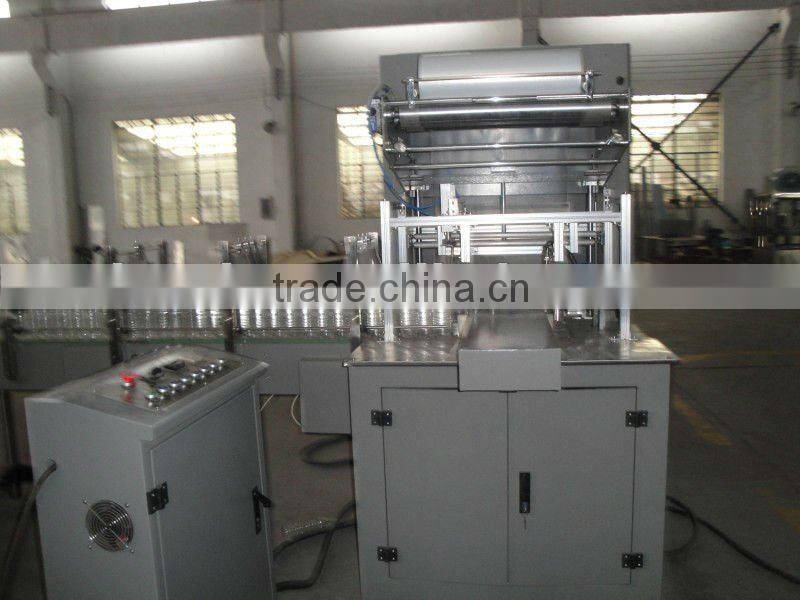

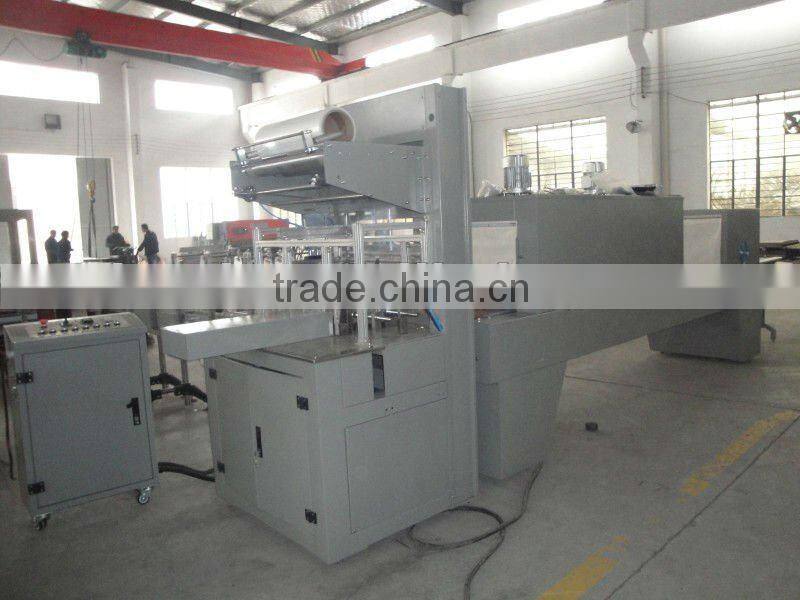

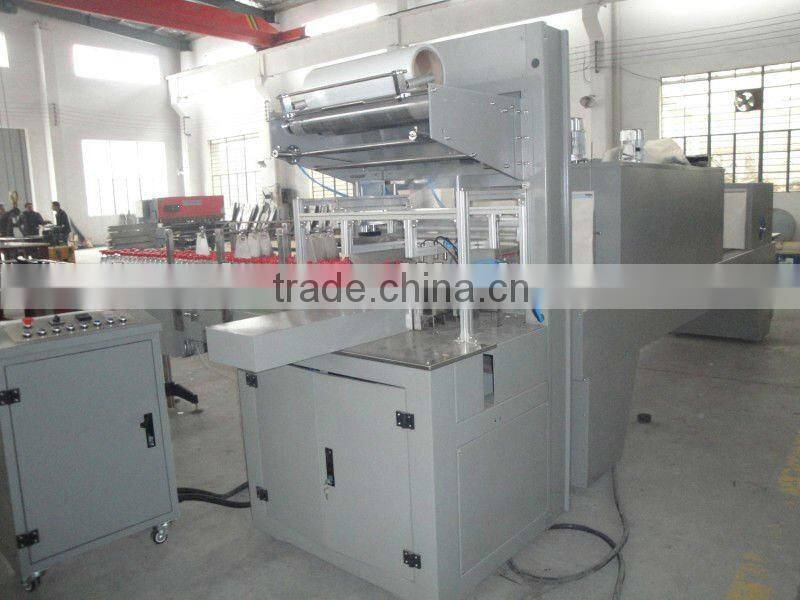

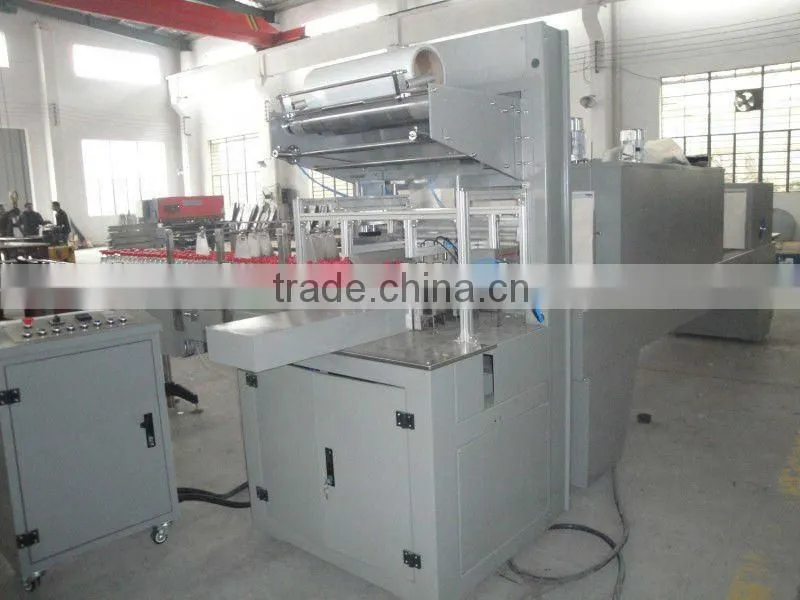

Automatic shrink packaging machine

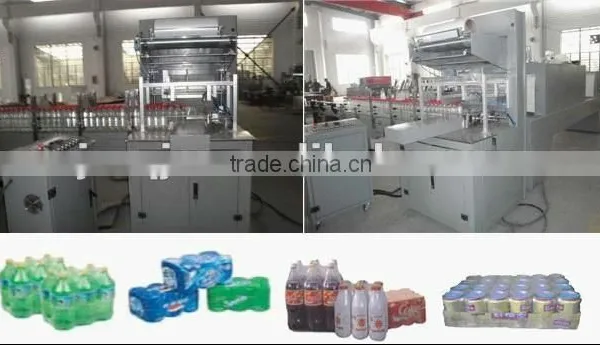

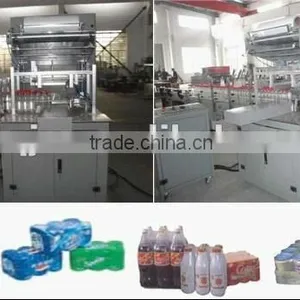

used simultaneously with other equipment to form packaging production line. It can automatically array, aggregate and align PET beverage bottle or other similar articles, then package it with shrinking film, finally produce finished products after shrinking by heating, cooling and forming. The packaged product is firmly bound with excellent appearance, which can be opened conveniently. Therefore, it is widely used in industries such as foodstuff, medicine, chemical and other light industrial products.
I.Features of machine
1) The temperature can be controlled automatically and changed as required.
2) Isothermal sealing cutter
3) Original guide bar cylinder with steady operation
4) Programmable logic controller (PLC) control
5) Non bottom support packaging, suitable for package with different bottle diameters and different combinations
6) Simple operation and easy repair.
Ⅱ. Main technical parameters
1. Operating voltage: three phase five line system 380V/50~60Hz
2. Working pressure: 0.6~0.8Mpa
3. Shrinking room: L×W×H=1800×650×450(mm)
4. Package efficiency: 10~15 packs per min
5. Sealing and cutting temperature: 140°C~160°C
6. Shrinking temperature: 200°C~280°C
7. Package material: PE
Film roll width: ≤580mm
Film thickness: 0.06~0.12mm
Film diameter: ≤400mm
8. Working noise: ≤65dB
9. Total power: 22KW
1) Product conveying motor: YS6334 1400r/min 370W 2pcs
2) Motor for conveying finished product: YS6334 1400r/min 370W 1pc
3) Roll-laying motor for upper and lower film:YS5624-RV30 1400r/min 90W 2pcs
4) Cooling motor: 200FZY2-D 1400r/min 65W 6pcs
5) Drying oven motor: YSJ8012 1400r/min 750W 2pcs
6) Heating pipe for sealing and cutting: 700W 1pcs
7) Heating pipe for drying oven: Max:21kw/220V 1.8kw/pc
8)Normal working:15kw/220V 1.8ke/pc
9). Total weight: 1500kg
10). Boundary dimensions: L×W×H=5500×3200×2100(mm
