Specifications
labeling machine/sleeve machinebottle labeling machine
Material:ss304/label:pvc,pp,pet
power:3kw
total size:7000x800x2300
PVC sleeve labeling machine
pvc label sleeve machine
bottle labeling machine
(1)CQ-100 Technical Parameters:
Input Power | 3.0KW |
Input Voltage | 3,380/220VAC |
Production Efficiency | 50-100bottles/minute |
Size of Host Machine | 2100L×850W×2000H |
Applicable Diameter of Bottle Body | 25mm~125mm |
Applicable Length of Label | 30mm~250mm |
Applicable Thickness of Label | 0.03mm~0.13mm |
Applicable Materials of Label | PE PP PET PVC OPS |
Applicable Internal Diameter of Paper Tube | 5″~10″ |
Bottle shape | round, square, ellipse, rectangular |
weight | 400KG |
Power | AC 380V 3 phase |
Different with bottle shape or size, needs change the center column and the Screw rod of separate bottle

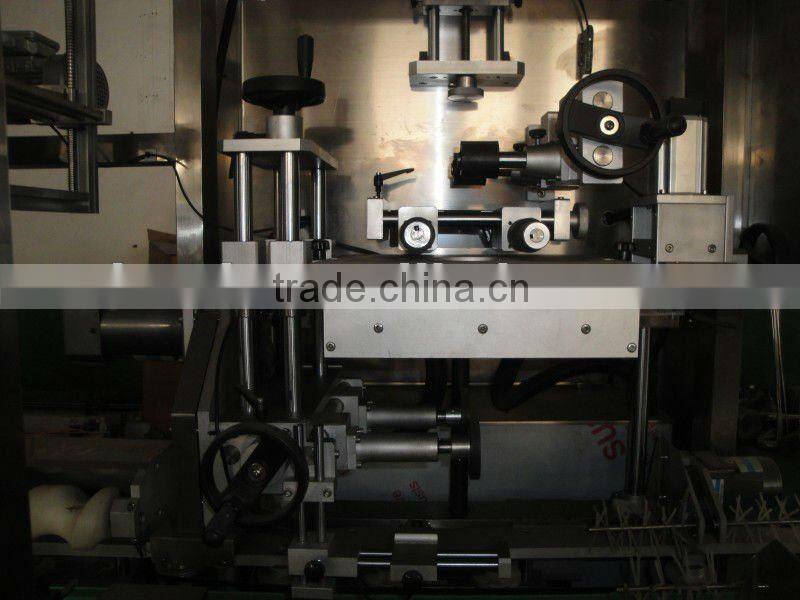

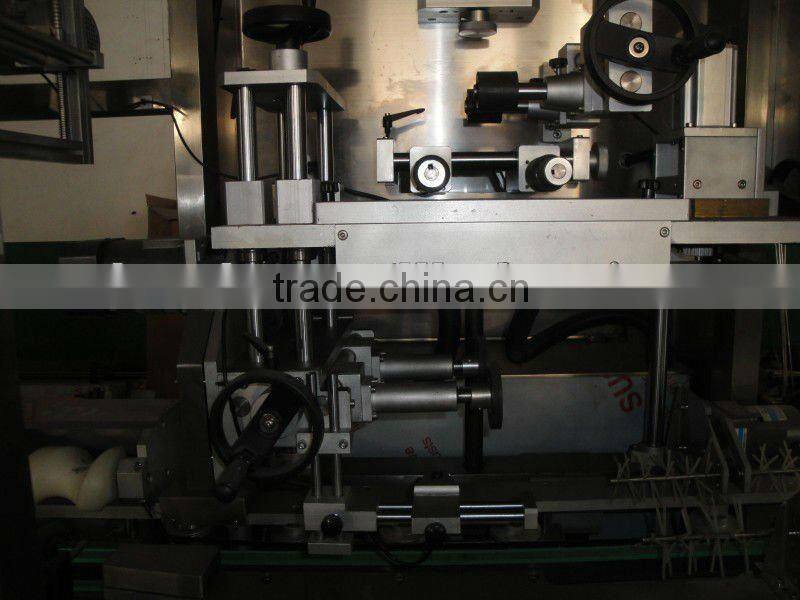

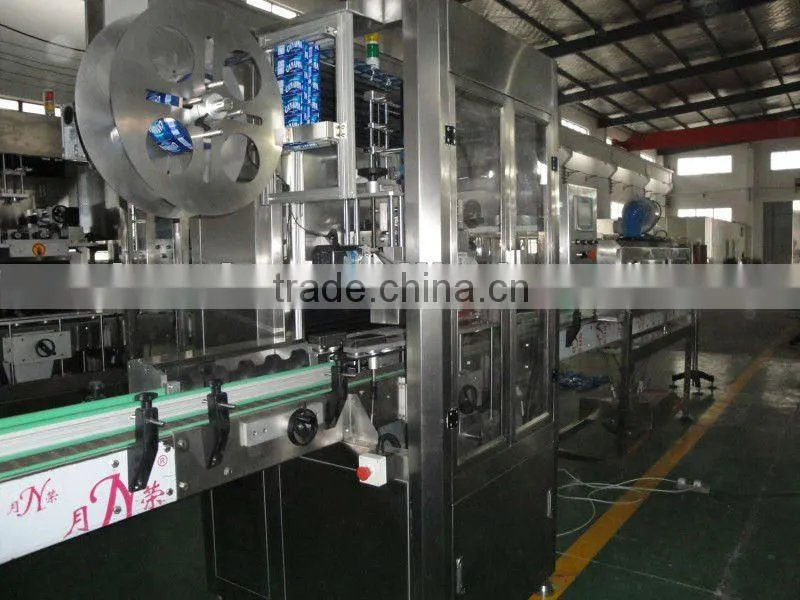

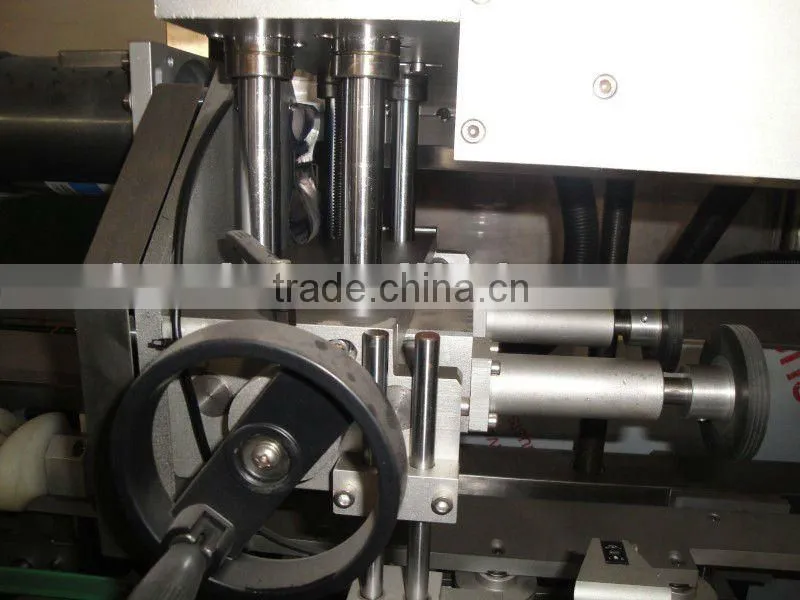

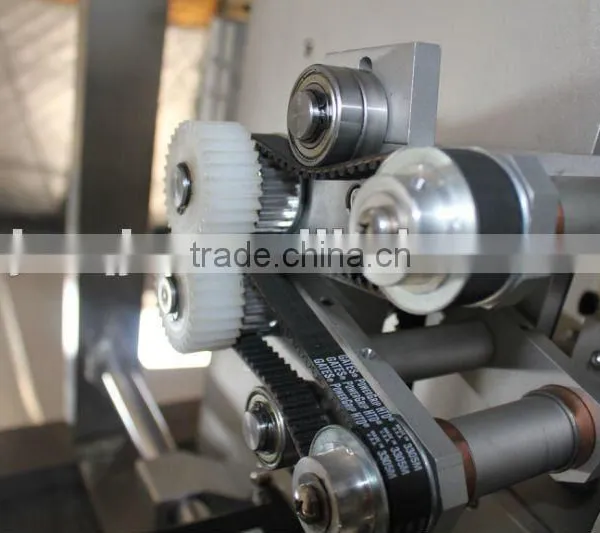

CQ-100 machine configuration
1 Full cover Main engine:Make the operator safety work

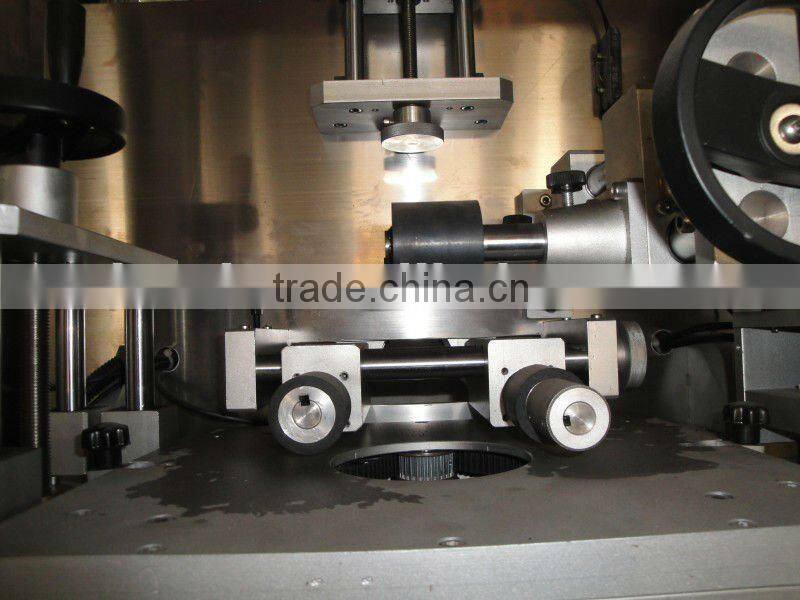

2. Adjustable blade base: Unique cut off, double blade for long using life.
3.Single positioned adjustable central transmission post,more stable label transmission.
4. Screw rod of separate bottle: stable transportation of bottles
5. Label brushing set: more accuracy of label-casing precision
6. Label control sensor shelf: original creation tail surface and sensor are combined to improve the precision of cutting the material.

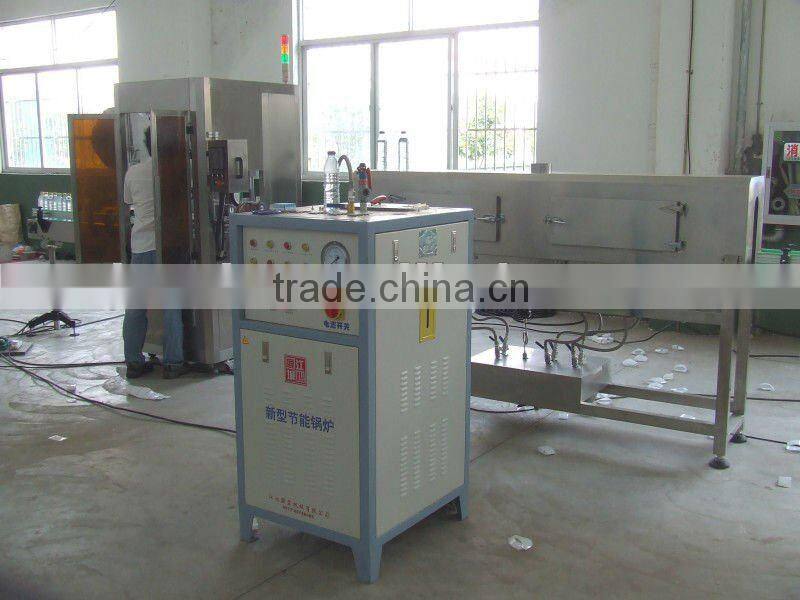

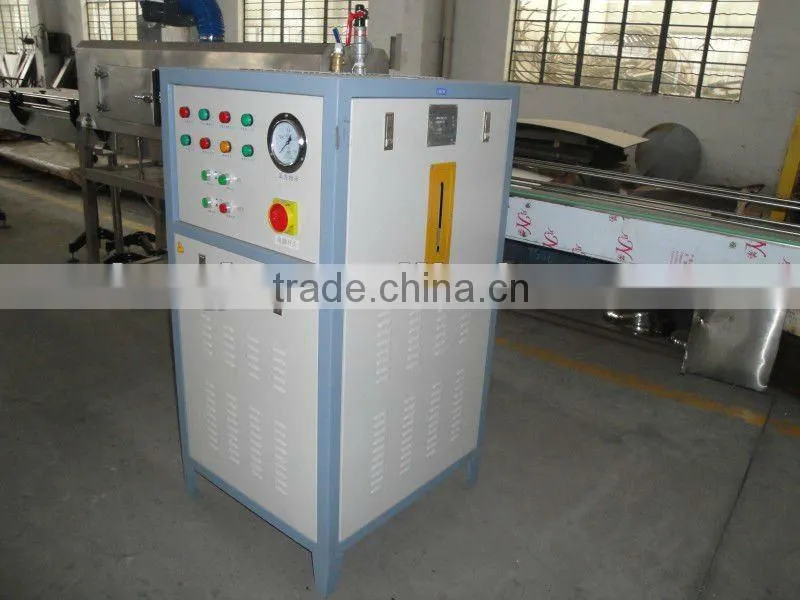

(2)Steam Heating Shrinking Oven
Technical Parameters:
Input Power Supply of Blower | 1 220VAC 0.75KW |

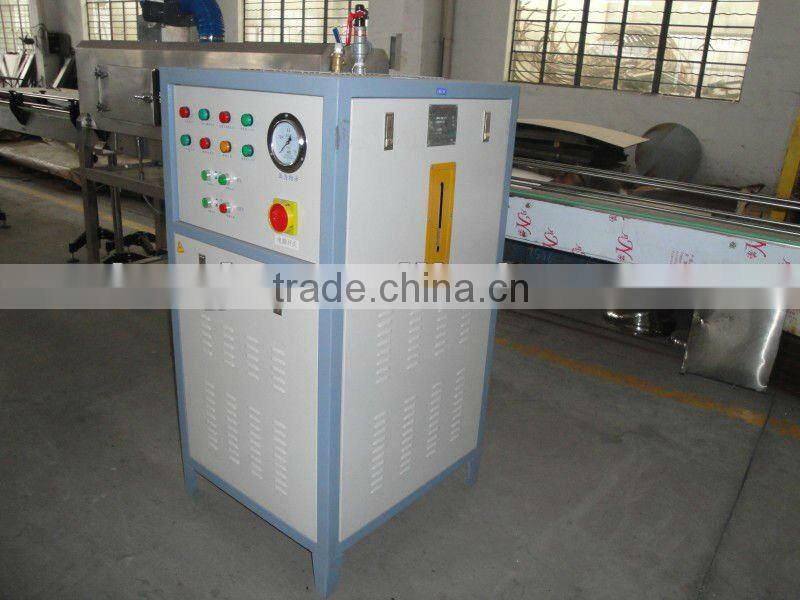

Input Power Supply of Steam Generator | 380V/50HZ |
Working Pressure | ≤0.1Mpa |
Weight | 230Kg |
Steam Consumption | 10-20(Kg/h) |
Size of Oven Body | 1800L×400W×450H |
Transporting Speed | 0-35m/min |
POWER | 1.1KW |

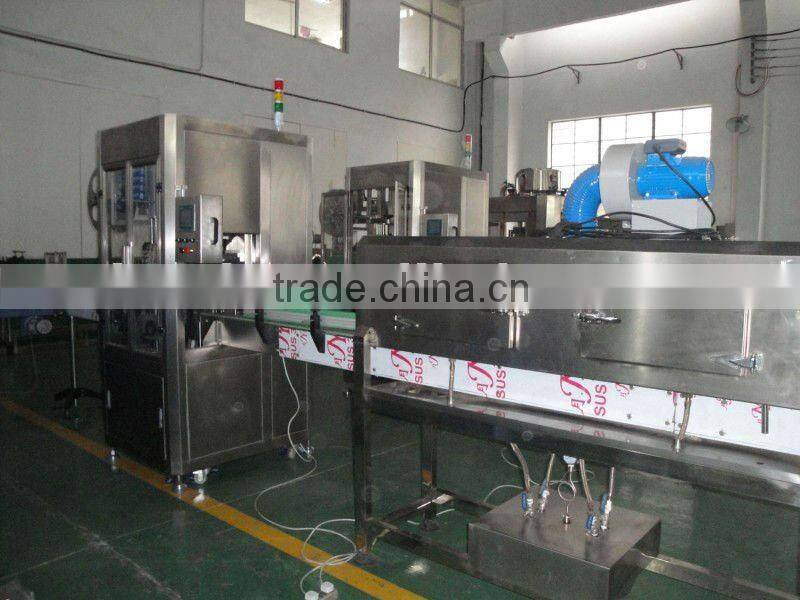

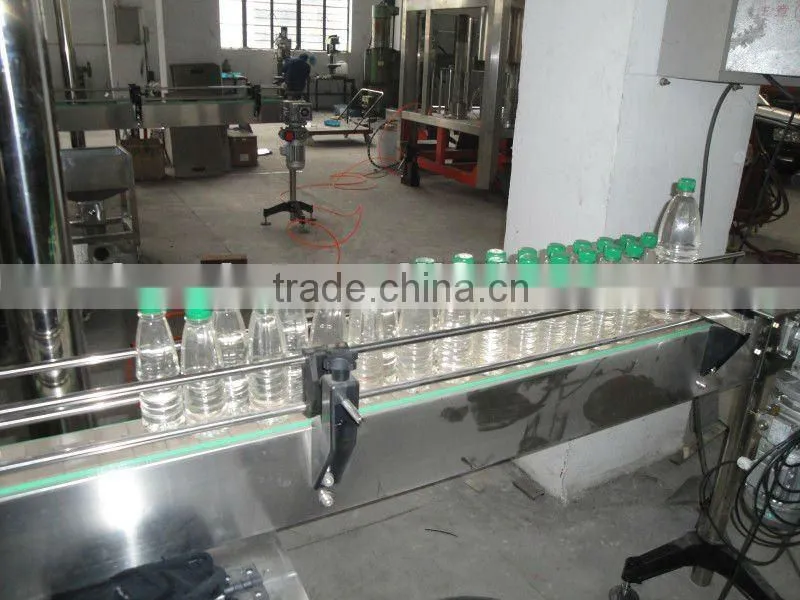

PICTURES
