Specifications
Soft Drink Linecapacity:1000-20000BPH
Control:automatic
motor:Simens
PLC:Omron CE&ISO9001

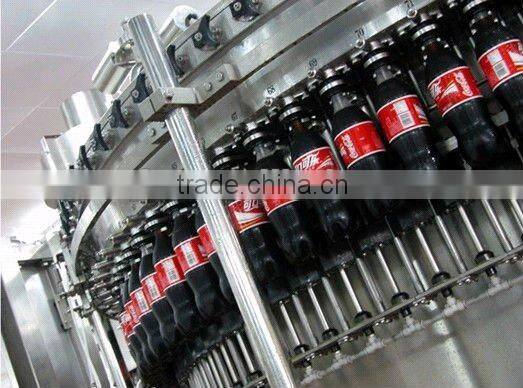

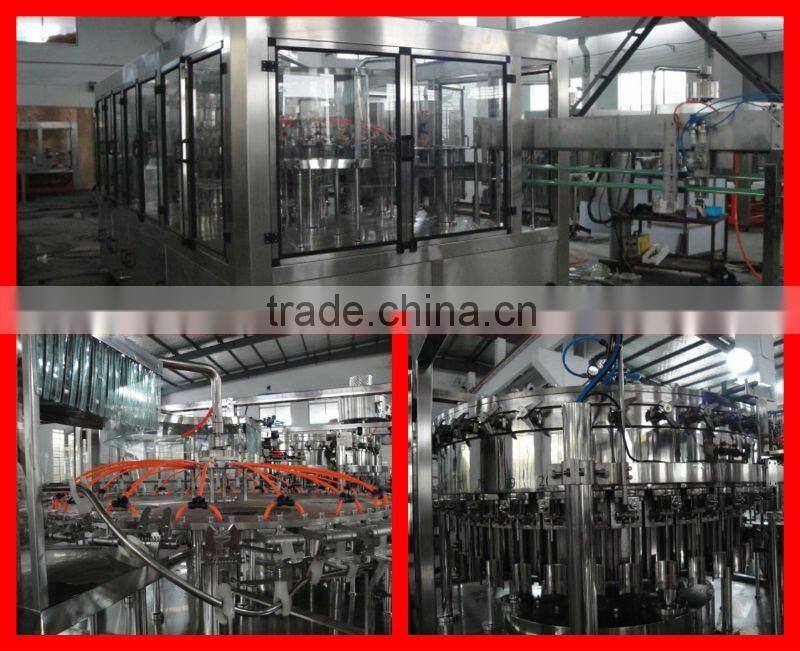

soft drink line
capacity:1000-20000BPH
Control:automatic
motor:Simens
PLC:Omron CE&ISO900
1The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in Zhangjiagang Filling Machine /Equipment
Technical parameters
Main | |||||||
Model | CGF16126 | CGF18186 | CGF24248 | CGF32328 | CGF404010 | CGF484812 | CGF606015 |
Heads | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 48-48-12 | 60-60-15 |
Production | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
Suitable bottle diameter(mm) | diameter=50-100mm H=170 330-1500ml | ||||||
Spraying pressure | 2~3 | ||||||
Motor power | Main | Main motor 2.2kw | Main motor 3kw | Main motor 4kw | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
Power of | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 |
overall dimension | 2100x 1400x 2500 | 2460x | 3100x 2100x 2650 | 3500x 2500x 2650 | 4600x 1800x 2650 | 5200x | 6500x 4500x 3400 |
Weight | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | 9800 |
