6000 Series Extrusion Aluminum Enclosure With Mounting Bracket
1.Material
Grade | 6000 series |
Temper | T5—T6 |
Surface Treatment | Mill finish, anodizing, powder coated, sand blasting, electrophoresis, etc. |
Deep Processing | CNC machining, cutting, drilling, punching, bending, etc. |
Color | Silvery white, black, golden, champagne, dark bronze or according to your requirement. |
Shape | Square, round, flat, or according to customers' drawings. |
Packing Details | EP paper inside for each piece then shrink paper, or carton paper then pallet, or wooden carton, or as your request. |
Delivery | 15 days after receiving down payment. |
2.Table of Chemical Composition of Aluminum Alloy
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Al | |
Unit | Total | ||||||||||
6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
6061 | 0.4-0. | 0.8-1.2 | <0.7 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.15 | <0.05 | <0.15 | Surplus |
6060 | 0.3-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | <0.1 | <0.05 | <0.15 | Surplus |
3.Technical Data
Alloy | Temper | Thickness | Tensile Strength | Yield Strength | Vickers Hardness | Webster Hardness |
6005 | T6 | ≤5 | ≥270MP | ≥225MP |
|
|
T6 | 5<e≤10 | ≥260MP | ≥215MP |
|
| |
T6 | 10<e≤25 | ≥250MP | ≥200MP |
|
| |
6060 | T6 | ≤3 | ≥190MP | ≥150MP |
|
|
T6 | 3<e≤25 | ≥170MP | ≥140MP |
|
| |
6061 | T6 |
| ≥265MP | ≥245MP | HV≥58 | HW≥8 |
6063 | T5 |
| ≥160MP | ≥110MP | HV≥58 | HW≥8 |
T6 |
| ≥205MP | ≥180MP | HV≥58 | HW≥8 |

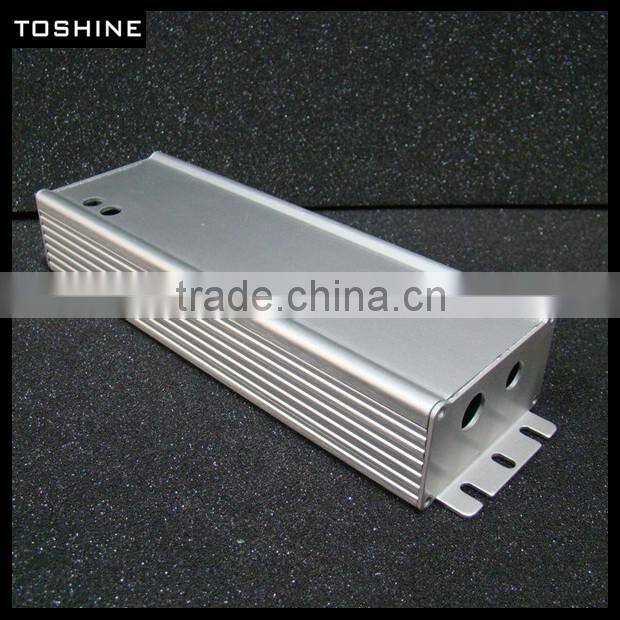

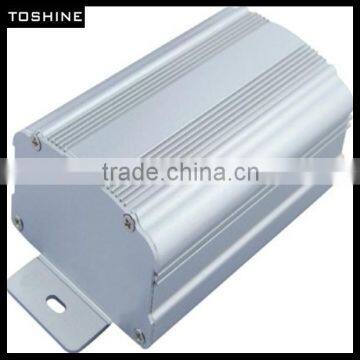

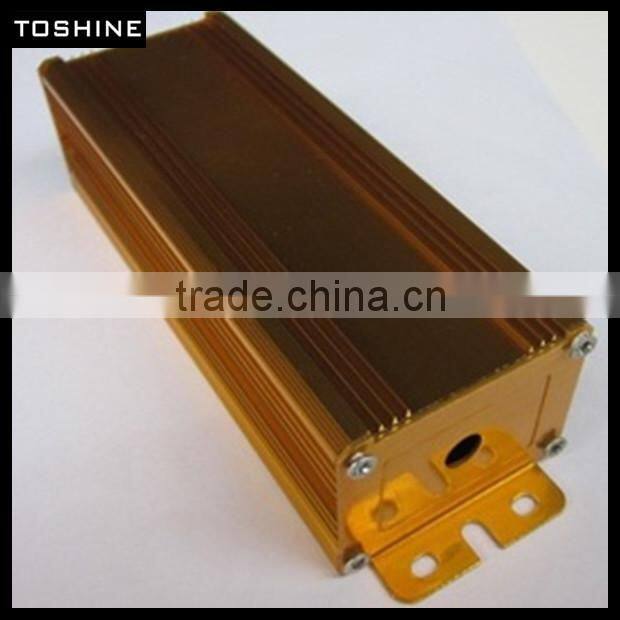

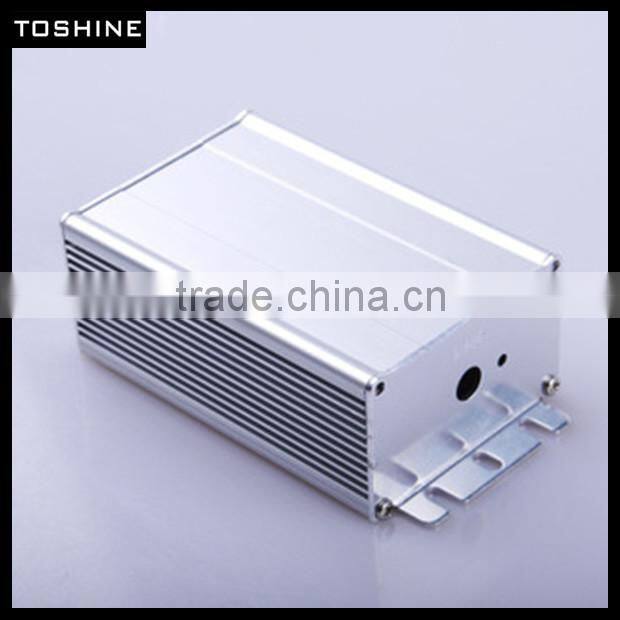

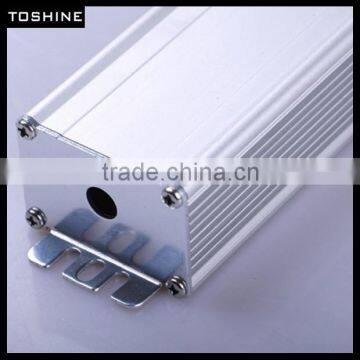

4. Pictures of 6000 Series Extrusion Aluminum Enclosure With Mounting Bracket
More About Application of Aluminum Profile ,click here.
EP paper inside for each piece then shrink paper or carton paper, then pallet or wooden carton. It can be adjusted according to your request.

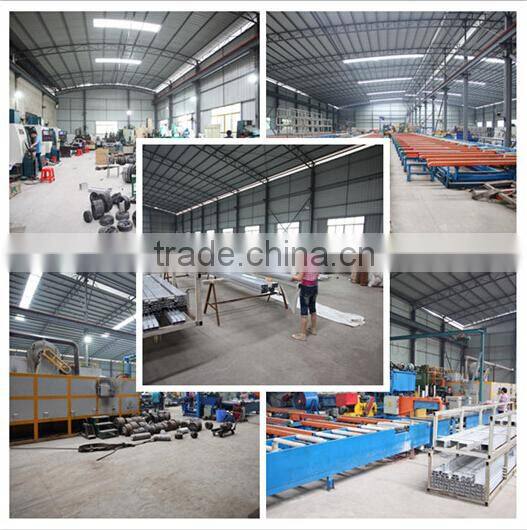

Shenyang Toshine Aluminum Co., Ltd. was founded in 2003, which is mainly engaged in design and manufacture aluminum extrusion die, and also develop and sale aluminum profile.
The company has accumulated rich professional production technology and experience from developing various special industrial profiles, such as electronic high tooth radiator profiles, industrial automation framework profile and assembly system, the special materials for the coach of highspeed rail, water heating radiator and all kinds of construction windows and doors, curtain wall profiles.
We adhere to the business policy “Quality first, continuous innovation, continuous development, continuous improvement”. We will supply more perfect products, higher levels of service and better prices for our old and new customers.
