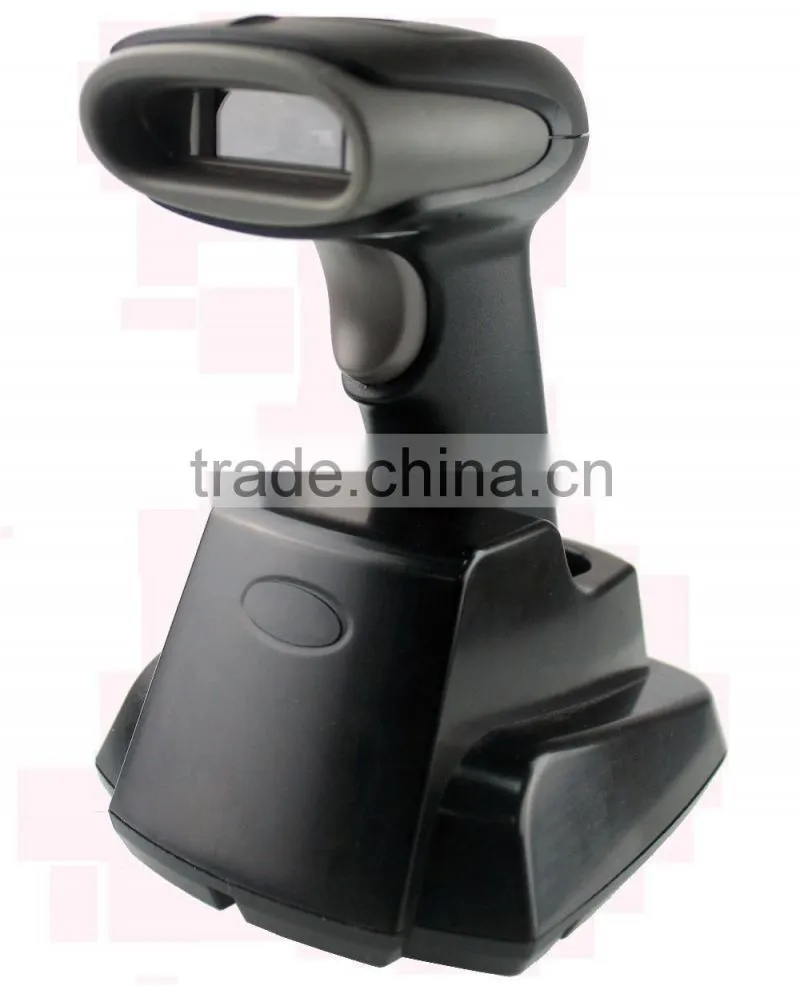

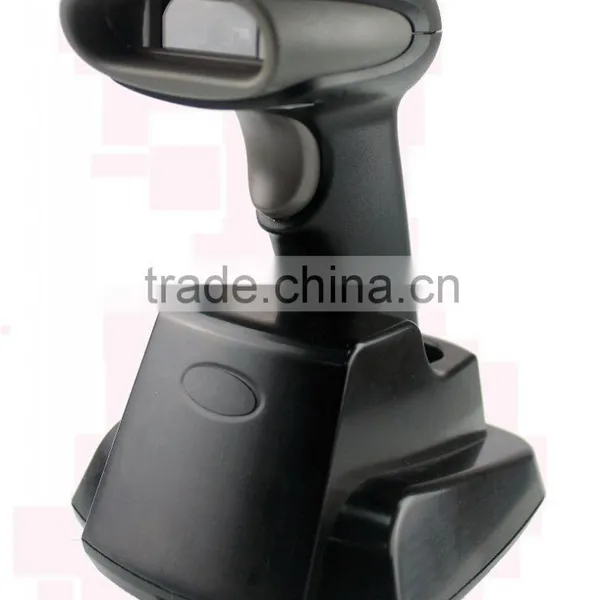

BSWNI-6023 Wireless 433MHZ 1D & 2D Wireless Barcode Scanner

Name: BSWNI-6023 Wireless 433MHZ 1D & 2D Wireless Barcode Scanner
Brand: CENTURY HC
SKU: 106895793

BSWNI-6023 Wireless 433MHZ 1D & 2D Wireless Barcode Scanner thumbnail-1

BSWNI-6023 Wireless 433MHZ 1D & 2D Wireless Barcode Scanner thumbnail-2

BSWNI-6023 Wireless 433MHZ 1D & 2D Wireless Barcode Scanner photo-1

BSWNI-6023 Wireless 433MHZ 1D & 2D Wireless Barcode Scanner photo-2

US$ 1 - 200 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CENTURY HC

Model Number:

BSWNI-6023

Contact Supplier Request Quote Chat Now

Shenzhen Century HC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CENTURY HC

Model Number BSWNI-6023

433MHZ 1D & 2D Wireless Barcode Scanner

(Model Number: BSWNI-6023 )

Features

1. Captures virtually all 1D and 2D bar codes as well as still images and video, more flexible for different application and solution
2. Powerful 624 Mhz processor, greatly improve work efficiency
3. Fast sensor shutter speed supports 60 fps to capture image, exceptional capture rate and motion tolerance
4. Multi-directional to capture all the data, unique aiming pattern, accurate scanning even in bright sunlight
5. Diversity of interface, support RS232, USB and RS485(customized)
6. Reserved installation mounting holes, Easily to integrate into any device or install on the cradle holder
7. Achieving one-to-many communications(one PC/PLC host to many barcode scanners),good for applications as multiple barcode scanners linked to the same network
8. Creative user defined barcode technology),user defined barcode binding with unique ID barcode scanner

Major Functions

Customized user ID with easily ON/OFF features.

Data upload without delay feature

Inventory mode: uploading command, barcode amount display command, barcode clearance command.(storaged data can upload repeatly.)

User defined hibernation time

Application and solution

Clothing, retail chain store, warehouse management, e-business, commercial retail, logistics express and file management, etc.

Specification:

Operating indicators	Visual:2 LEDs (Red, Blue) Non-visual: Buzzer
Communications	RF433 Cradle: RS232 USB(Ver. 1.1 HID Keyboard)
Sensor resolution	752*480pixels
Light source	625nm LEDs
Aiming light	617nm LEDs
Scan method	CMOS array sensor
Battery capacity	2200mAh
Fixed focus distance	39°(H)x25°(V)
Motion capability	<= 63.5cm/25in/s
Scan rate	Up to 60 fps
Scan reading angle	Yaw:±60° or greater Pitch:±60° or greater Roll:0-360°
Min. resolution, C39 at PCS 0.9)	5mil (0.127mm)
Min.print contrast	Minimum 25% minimum reflective difference
Image file formats	BMP,TIFF and JPEG
Voltage	5 VDC±10% @260mA
Current consumption	150mA (typical use), max.250mA
Temperature	0°C to 40°C (operation), -40°C to 70°C (storage)
Humidity	5% to 95% , non-condensing
Ambient light immunity	86,000 lux (direct sunlight), 1600lux (Indoor light)
Drop test	1.8 m (6 ft) drop onto concrete surface
Protection rate	IP54
MBTF	53,310hours
Dimensions	Scanner:162 x 66 x 82 mm(d x w x h) Cradle: 150 x 113 x 80 mm(d x w x h)
Weight body	Scanner: 178.6g/ 6.3 oz (ex. cable) Cradle: 172g/6.07(ex cable)
Case	PC, Black
Product Compliance	CE, FCC, IEC 60825-1 Class 2, GB7247.1-2001
Enclosed items	Cable(USB,RS232),User Guide, DC power supply (RS232)
1D	UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2D	PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec

Shipping:

1. Air, Sea, Express(DHL, FedEx, UPS, EMS, TNT and so on)

2. EXPRESS: around 3-7 working days to arrive

3. INTERNATIONAL AIR Way: usually around 2-4 days to arrive, will also depend on which destination port

4. By sea: depend on which destination port

Payment:

1. T/T

2. Western Union

3. PayPal

4. Escrow

5. Money Gram

FAQ:

. OEM Production:

OEM your logo, MOQ is 300pcs with OEM charge free. If your order less than 300pcs, you can also pay OEM charge to make your logo. Exact cost depends on your requirements.

OEM packing, MOQ is 1000pcs.
