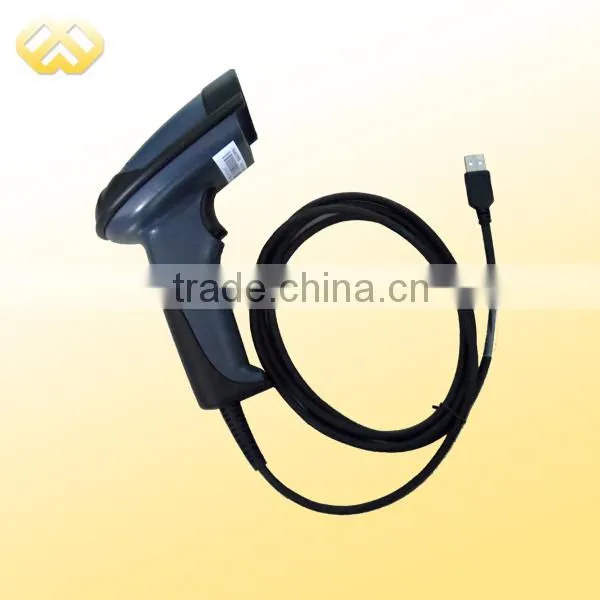

BS-S7 2D Barcode Scanner Reader PDF417 QR Code

Name: BS-S7 2D Barcode Scanner Reader PDF417 QR Code
Brand: CENTURY HC
SKU: 106892483

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CENTURY HC

Model Number:

BS-S7

Shenzhen Century HC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CENTURY HC

Model Number BS-S7

Specifications

1.2D barcode scanner
2.CE certified
3.Optional fixing stand
4.dust-proof & water-proof.
5.High speed and precision decoding

1D/2D QR barcode scanner

Features:

1. Ergonomics ensign, optional fixing stand, dust-proof & water-proof.

2. High speed and precision decoding

3. RS232, KBW and USB interfaces for option

4. 1.5m drop resistance, Stability Network Analysis of Structures, brief outward, can working for 24 hours

5. Super decoding ability

6. It can scan all 2D code which is full-featured

7. No need bracket, it can be changed to auto scan mode

Specification:

Interface	RS232,PC Keyboard Wedge, IBM ,USB
Color	White, black for option
Size	183mm(height)*111mm(length); width: hands position 30mm, top head 79mm
Weight	225g
Scanner part interface	10 pin RJ45 port
Cable length	2.1m
Put in voltage	5VDC
Power Consumption	2W(400mA@5VDC)
DC	5.2VDC@650mA
Operate Temperature	0°C-50°C
Storage temperature	-40°C-70°C
Humidity	O% to 95%
Drop resist	Can drop from 1.8m to concrete ground for 50 times
Industrial level	IP41
Illumination	0 ~ 100,000 LUX
Precision	≥ 3mil
Depth of field	0mm-230mm @ 13mil barcode
Light Source	LED(645±7.5nm)
Scanning area	49mm x 19mm @20mm;264mm x 106mm @280mm
Min code width	0.127mm(5.0mil)
Resolution	1280 x 512
Indicator light	Blue-power on, ready for scanning; white-decoding success; yellow-with bracket
Shake resistance	Best focus in 13 mil UPC barcode scanning can be up to 610 cm/SEC (240 inches per second)
Scanning angle	High density HD: Horizontal 41.4 °; Vertical: 32.2 ° Standard distance SR: Horizontal 42.4 ° ; Vertical: 33 ° Long ER: Horizontal: 31.6 °; Vertical: 24.4 °
Print Contrast Signal	≥ 20%
Buzzer	7 sounds or none
Pitch/Yaw	45°/65°
Safe level	FCC ClassA,IEC60825-1 LED safety
ESD protection	Bear 100 times 15 kv static shock
Decoding ability	Standard 1D,2D, RSS,PDF417,microPDF,EAN/UCC recombination code, MatrixCode, Postal, QR, DataMatrix, Postals, Aztec-BMP,TIFF,JPEG
