PCCP Steel Cylinder End Expanding Machine for Sales

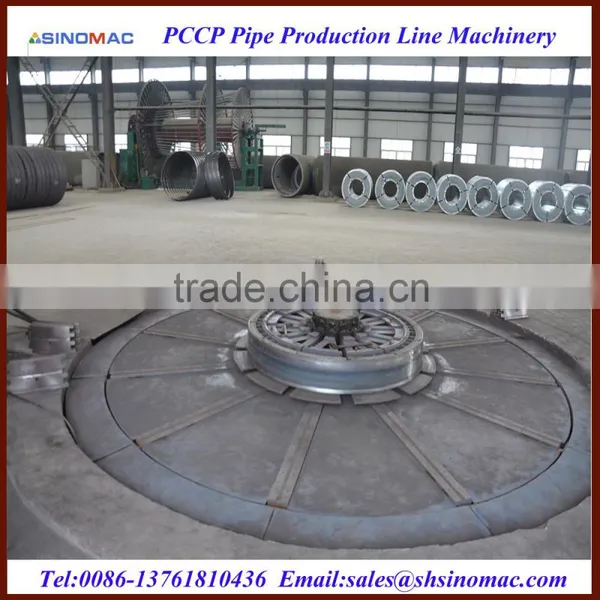

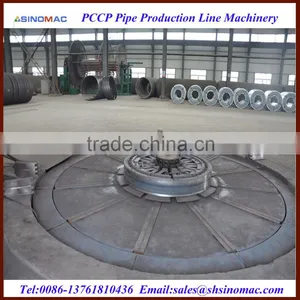

pccp pipe bell plate expanding machine : expander machine making
Technical Parameter:
1. Name:Bell and Spigot Expander
2.Model: DN600--DN3200mm
3.Hydraulic Drive: diameter--500mm running trip--600mm
4. Digital Display/High Precision/the precision control under ±0.15mm
5. Application Plate Range:
Bell Plate Thickness: ≤12 Bell Plate Height:≤216
Spigot Plate Thickness: ≤22 Spigot Plate Height:≤205
6. Speed:3-5min/piece
7. Design Pressure: 31.5Mpa
Working Pressure: ≤20MPa
8.Motor Power: 23.5KW 3Phase/380V/50HZ

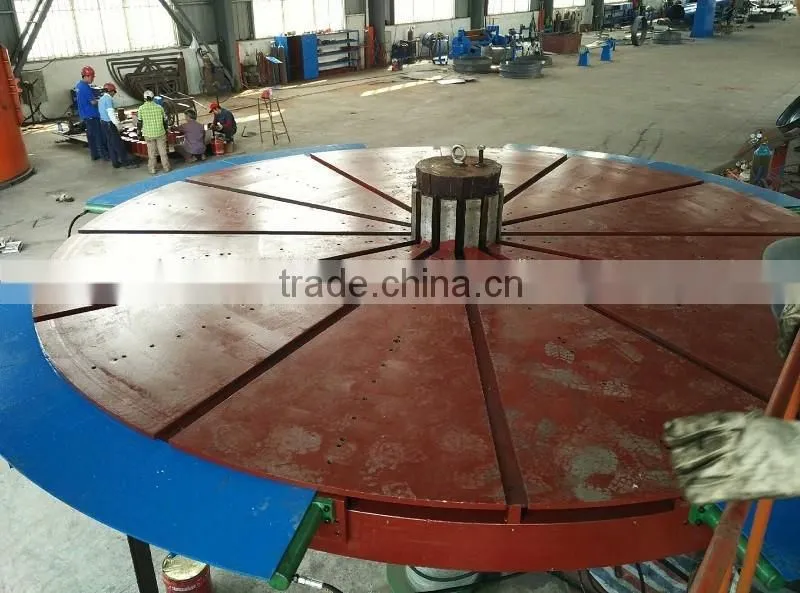

pccp pipe bell plate expanding machine : expander machine making

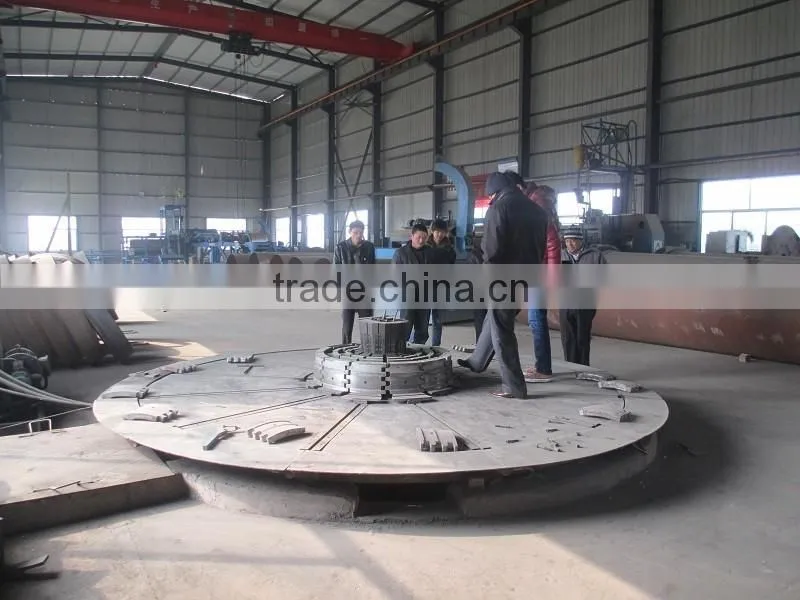

pccp pipe bell plate expanding machine : expander machine in stock

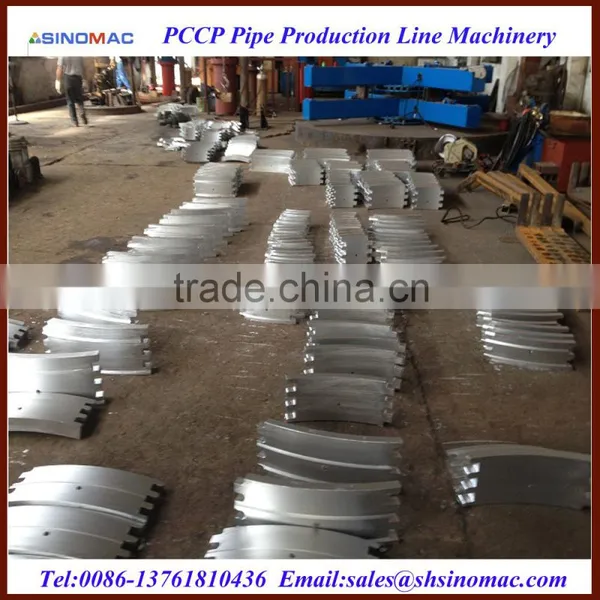

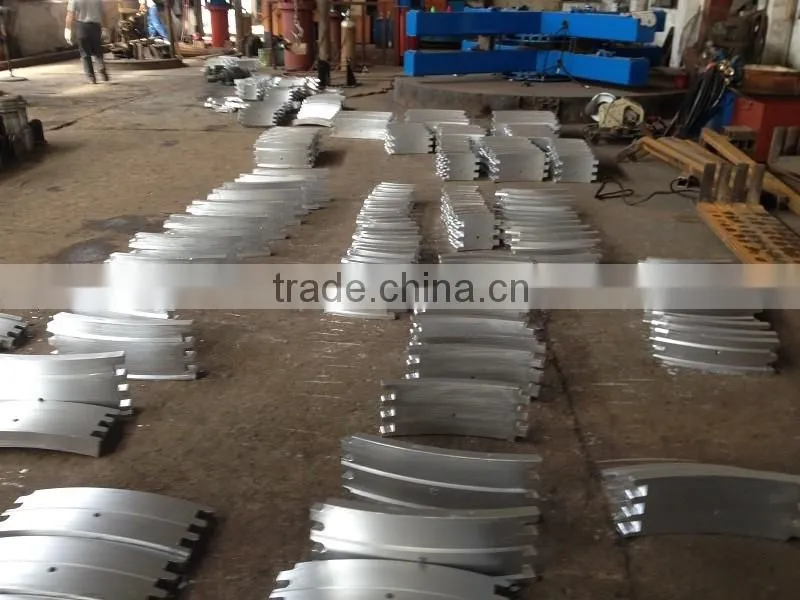

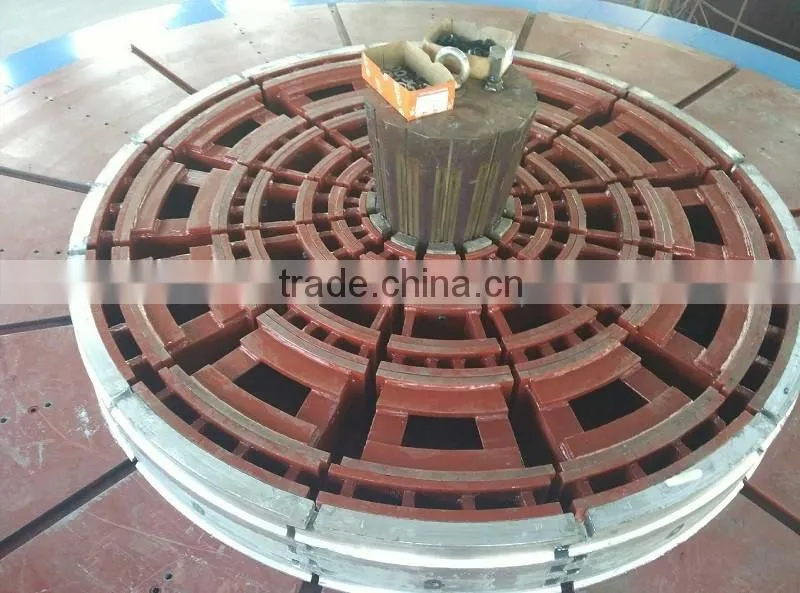

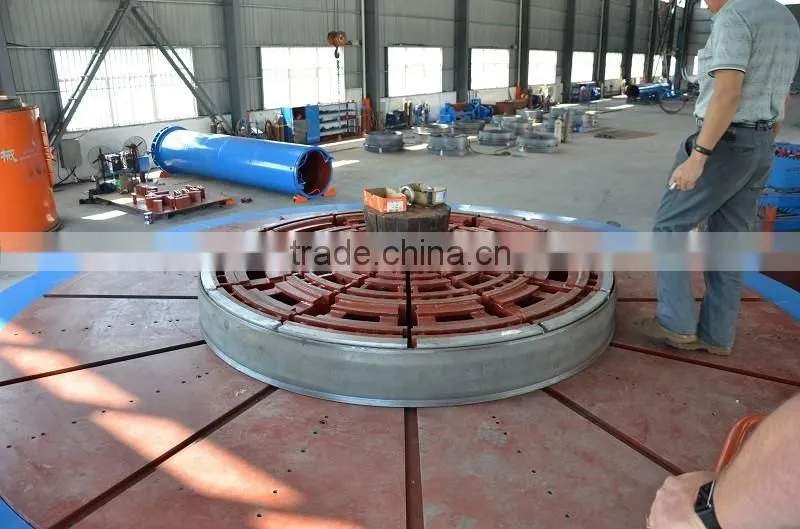

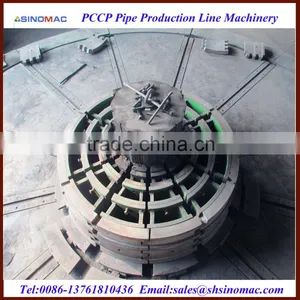

pccp pipe bell plate expanding machine : expanding block
2.Factory Workshop

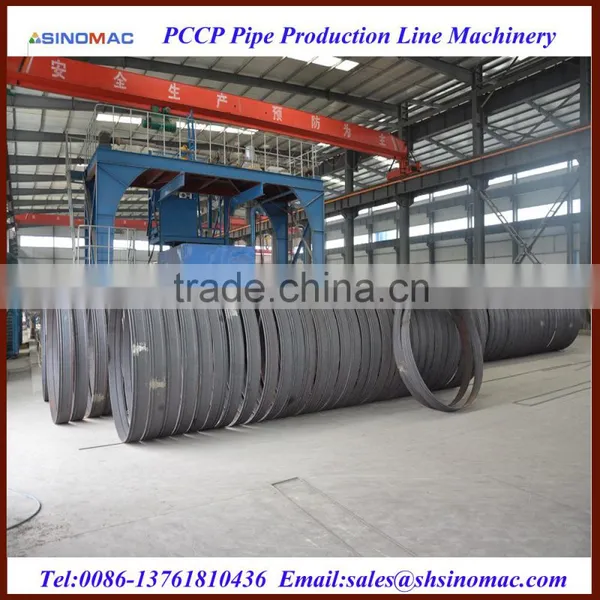

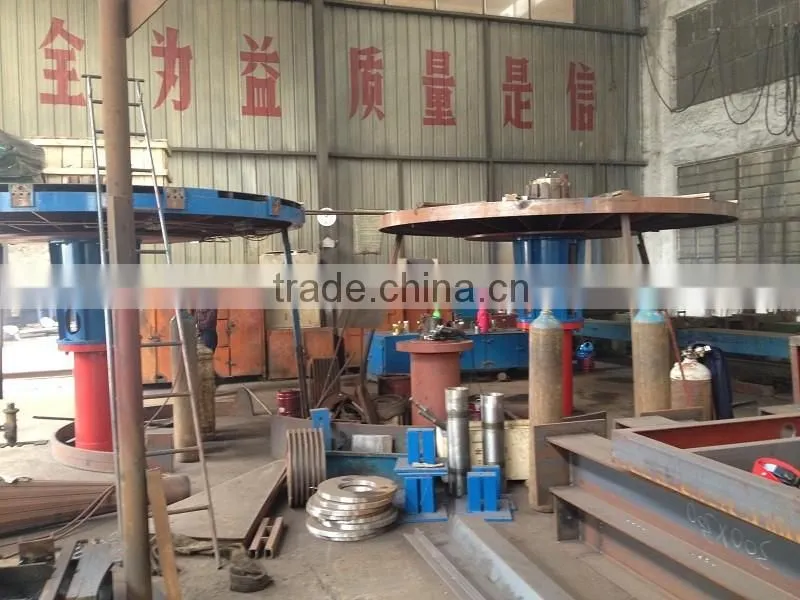

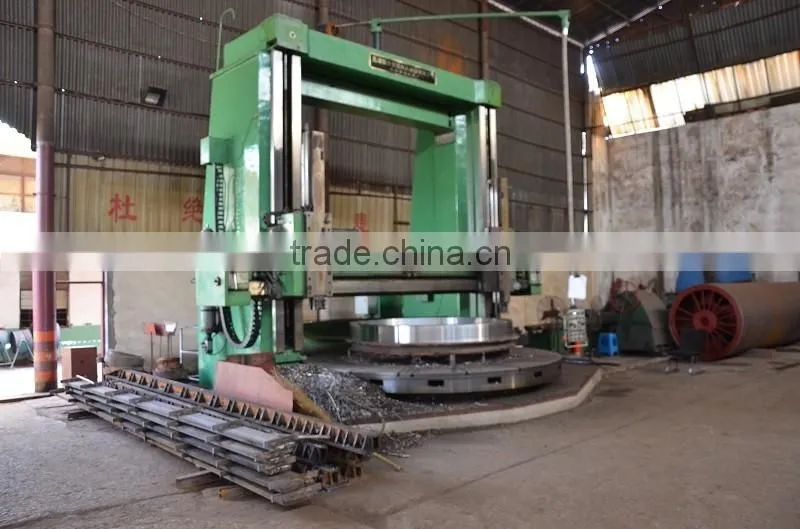

pccp pipe production line machinery: workshop
3.PCCP Pipe Production Line Main Making Machine List:
A.Spigot and Bell Port Rolling Machine

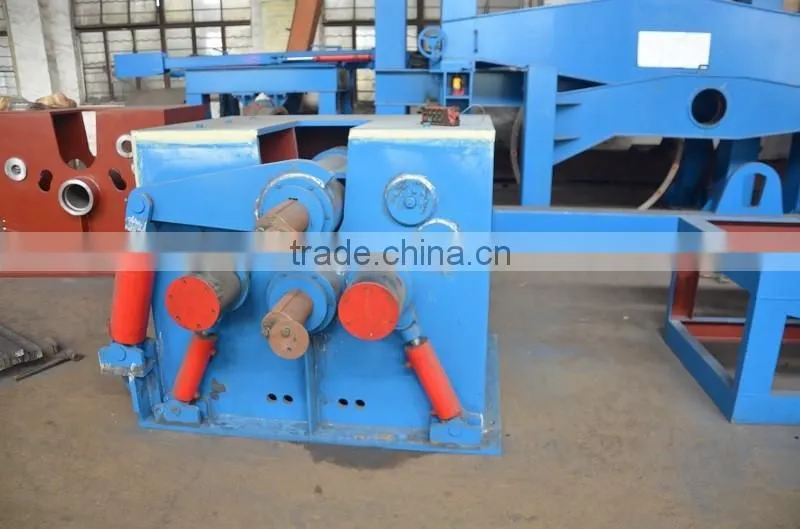

pccp pipe production line machinery: steelplate rolling machine
The rolling machine is main to form the spigot/bell port into circle.It could make different diameter spigot and bell circle through changing upper roller.
B. Edger Machine

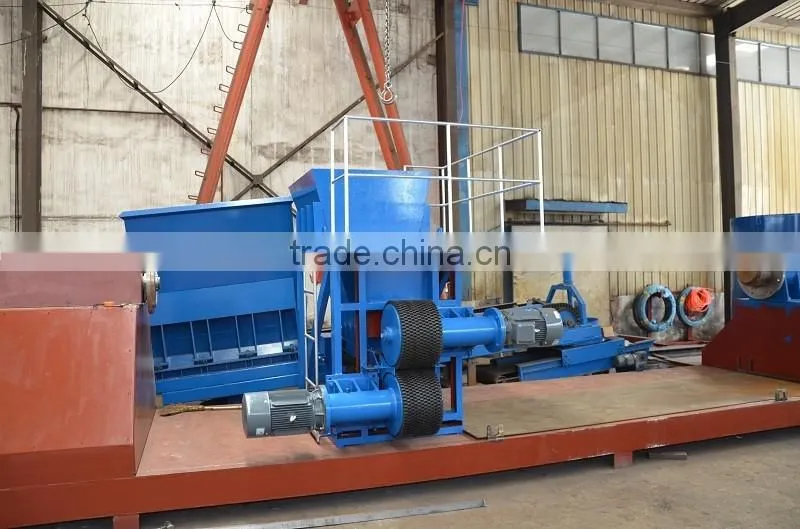

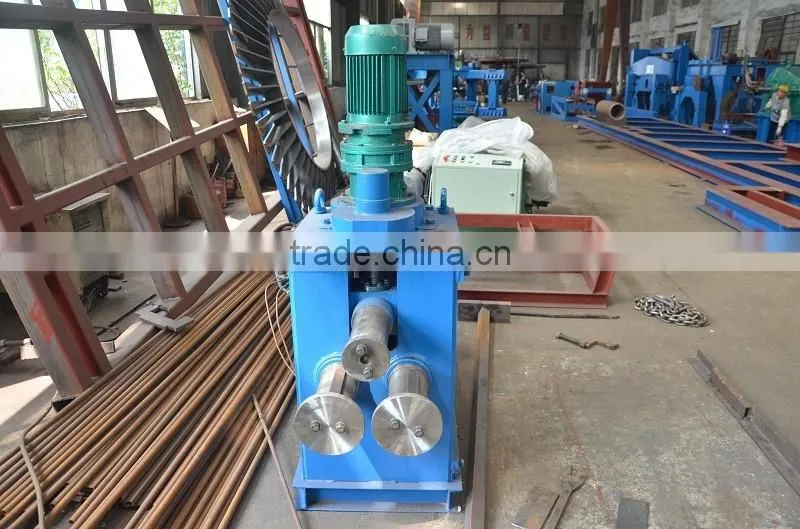

pccp pipe production line machinery:edging machine
The Edge Rolling Machine is to change the spigot plate into requirement size plate through rolling.
C. Expanding Machine

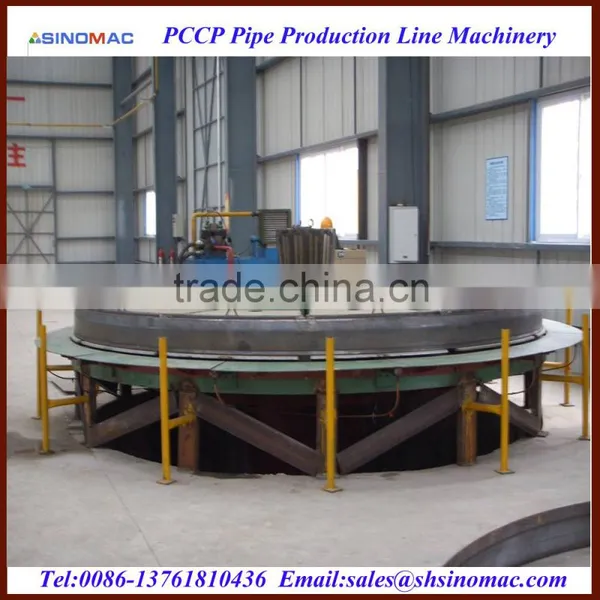

pccp pipe production line machinery :spigot and bell expanding machine
D.Φ600-1600 Small Spiral Welding Machine
pccp pipe production line machinery:spiral welding machine
The small spiral welding machine main through continuous winding/rolling/welding and automatic cutting to make required length cylinder.
E.Φ600-1600 Horizontal Cylinder Water Testing Machine

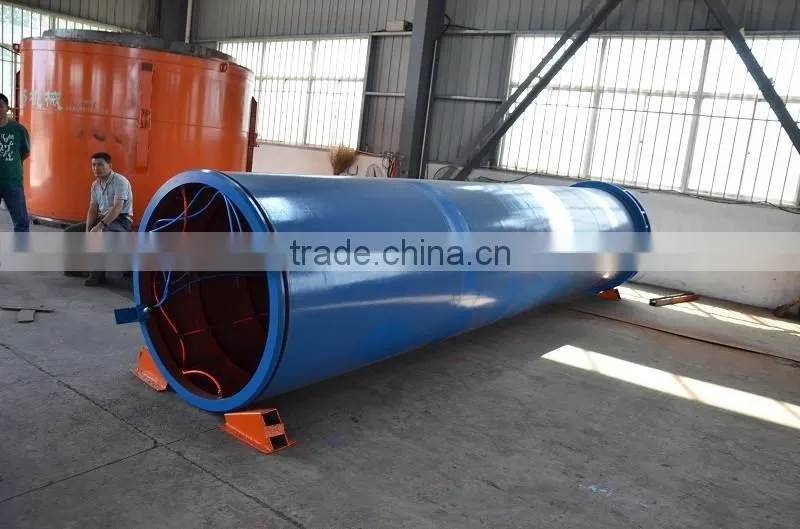

pccp pipe production line machinery:pipe water testing machine
Horizontal Cylinder Water Testing Machine main to make water pressure testing for cylinder.
F.Φ600-1600 Different Speed Horizontal Wrapping Machine

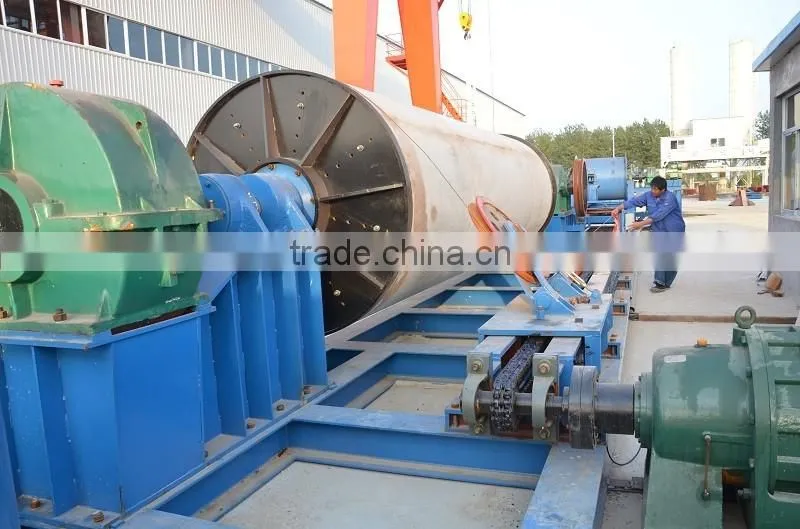

pccp pipe production line machinery :wire wrap machine
Horizontal Wrapping Machine is to wrap the wire into the outside of pipe core.
G.Spray Coating Machine
pccp pipe production line machinery : coating spray machine
H. PCCP Pipe Production Line Machinery Shipping

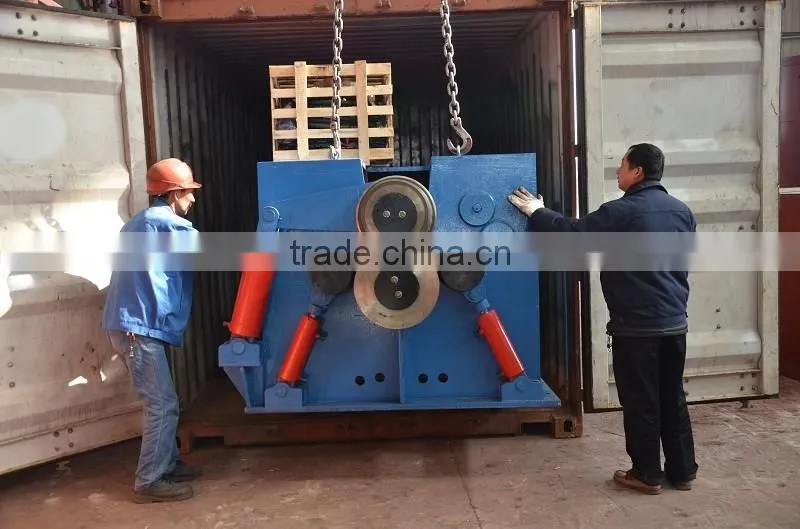

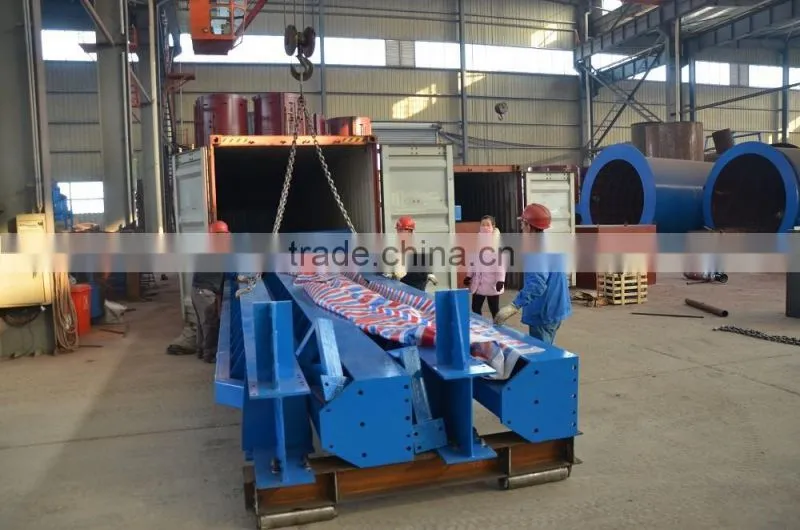

pccp pipe production line machinery:shipping to Canada

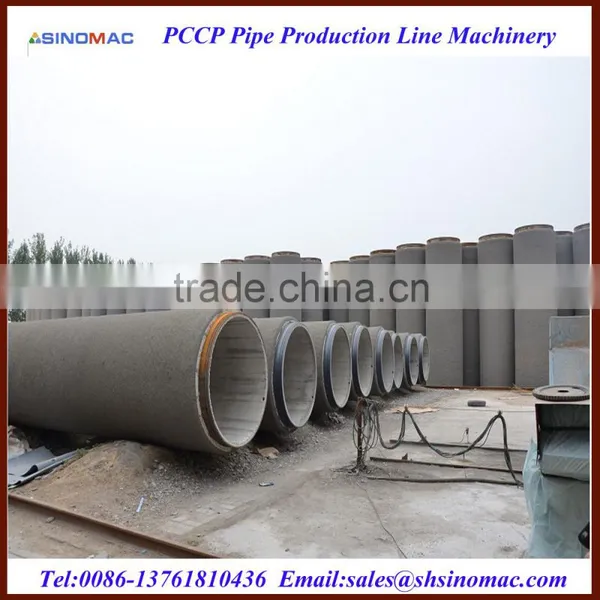

Welcome to visit our factory and PCCP Pipe Production Line working site.
