Specifications
Dual Band Radio Transceiver KQ-UVB61.Frequency Range: 136-174mhz, 400-480MHz
2.5 watts of high output power
3.99 channels
Dual Band Radio Transceiver KQ-UVB6
vhf 136-174 mhz, uhf 400-480 mhz
Specification:
1 .FrequencyRange:UHF400-480MHz.VHF136-174MHz(dual band)
2. Output power: 4W/1W
3. Channel: 99
4. Busy Channel Lockout
5. VOX function
6. CTCSS/DCS
7. Time-out Timer
8. Low battery warning
9. Battery Save
10. Priority Channel Scanning
11. Dual Band, Dual Display , Dual Standby
12. DTMF Encoded / DTMF
13. FM Radio Built-in
14. 12.5K, 25K available
15. P.C programming
16. Talk Range:3- 10km
17. Dimension: 116.2*57.9*35.7mm(exclude antenna)
General | |
Frequency coverage |
UHF 400-480MHz.VHF 136-174MHz |
Channel Capacity |
99 |
Channel Spacing |
5/6.25/10/12.5/20/25KHz |
Operated Voltage |
7.4V |
Battery Capacity |
1800Mah Li-ion |
Battery Life(5-5-90 duty cycle) |
About 10 hours |
Working Way |
Simplex in same channel Simplex in different channel |
Frequency Stability |
+-2.5ppm |
Operated Temperature |
-20°C to +60°C |
Antenna Impedance |
50Ω |
Dimensions |
116.2mm x 57.9mm x 35.7mm |
Transmitter | |
RF output power |
4W/1W |
Modulation |
F3E |
Spurious Emission |
65dB |
FM Noise |
45dB(W) / 42 dB(N) |
Audio Distortion |
≤5% |
Transmitting Current |
≤1.3A |
Receiver | |
Sensitivity(12Db SINAD) |
≤0.20μV |
Sensitivity |
60dB/55dB |
Intermodulation |
≥65dB |
Adjacent Channel Selectivity |
≥65dB |
Spurious Response |
≥60dB |
FM Noise |
45dB (W)/42 dB (N) |
Audio Distortion |
≤5% |

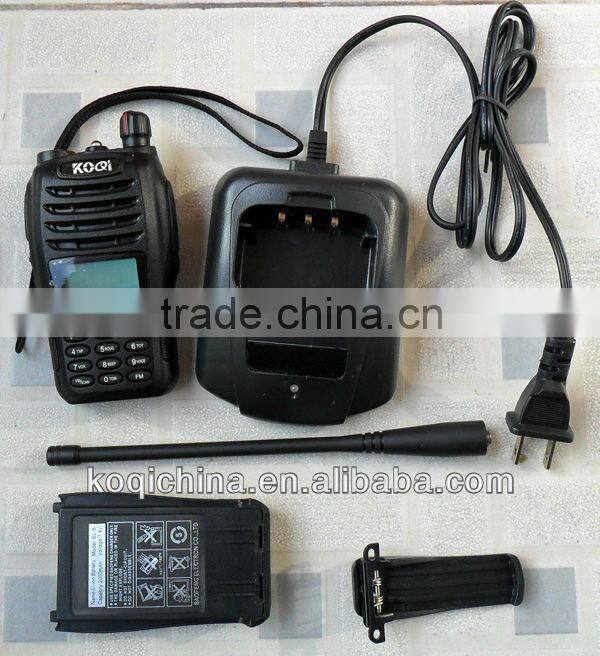

Each set packaging Including
1 pcs Radio
1 pcs charge
1 pcs battery
1 pcs antenna
1 pcs belt clip
1 pcs user's manual
Optional accessories:
Speaker Microphone
Earphone
Radio case
Delivery time: within 3-5 days via DHL. EMS, UPS, TNT, FEDEX Express
Payment: T/T .Western Union. Paypal
Warranty: 12 Months
Our factory offer OEM service, We look forwards to having an opportunity with you

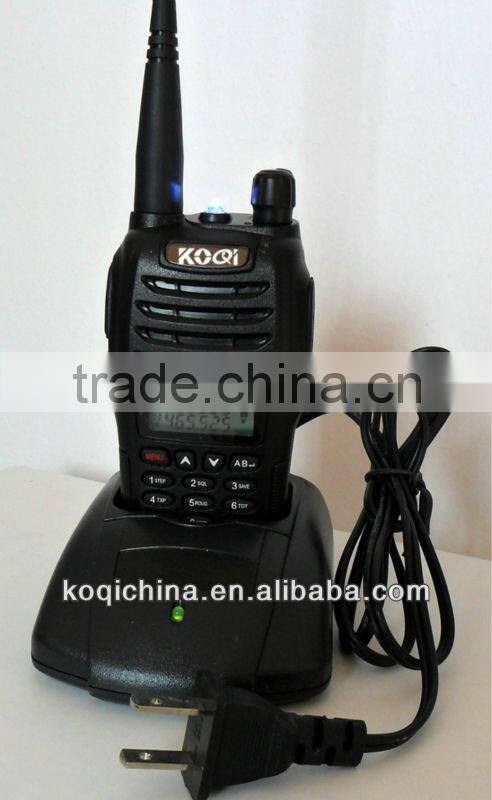

Pictures of Dual Band Radio Transceiver KQ-UVB6
If you are interested in Dual Band Radio Transceiver KQ-UVB6, please contact me anytime, I will reply to you in 24 hours. Thank you.
