Wireless Calling System

Each unit on Standard box; 5 PCS be packed in strong carton.

Wireless Calling System

K-200CD Display Screen in the hall

K-999 keyboard for kicthen cooker use

K-H3-W button for customer use

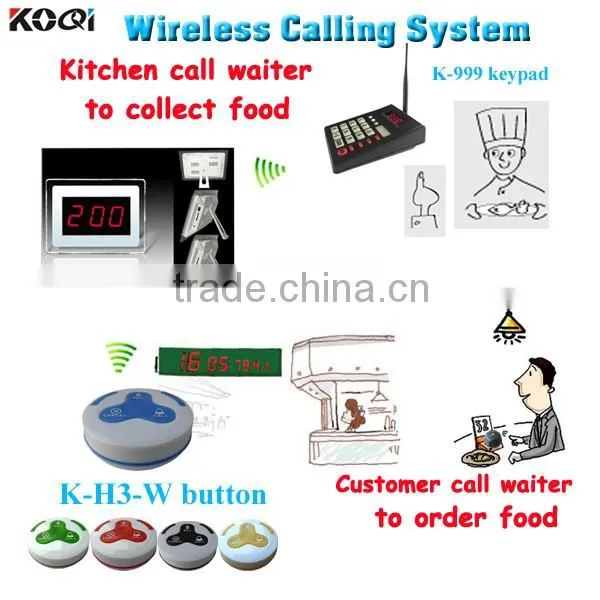

When customer need order food ,he just need to press the button on the table.The table No. will show on the screen of receiver .Then waiter will know who's calling. Then he go to this table and write down what’s they need. Waiter will take order to kitchen .When order is ready ; kitchen(chef) will put number from K-999 device .Then order No. will show on the screen of receiver  Then waiter will know which’s table’s food is ready and go to pick up the food and take it to guest.

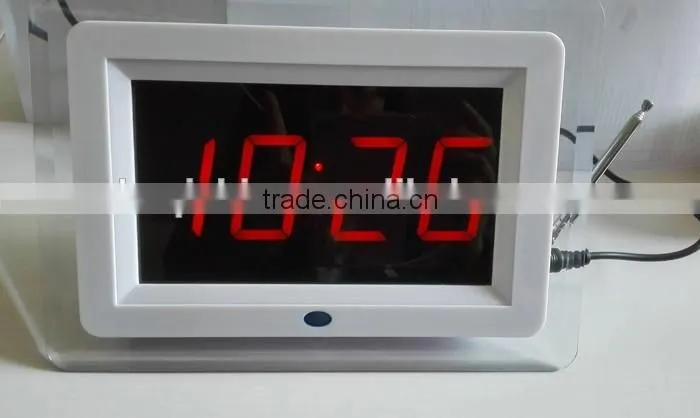

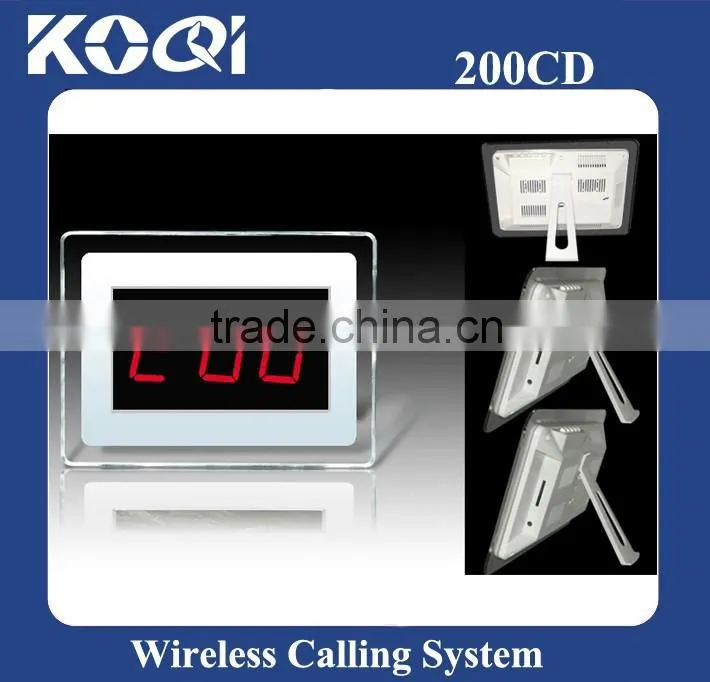

Specification of Wireless Calling System Display Receiver K-200CD:

1. With high strength ABS material cover
2. Use digital code technology and the function is steady and reliable.
3. Show 3-digit number and also can show ABCDHLPU, easy to distinguish the service area. from 001-999, A01-U99.
4. Can work with 200pcs 1-key or multi-kesy call buttons in max

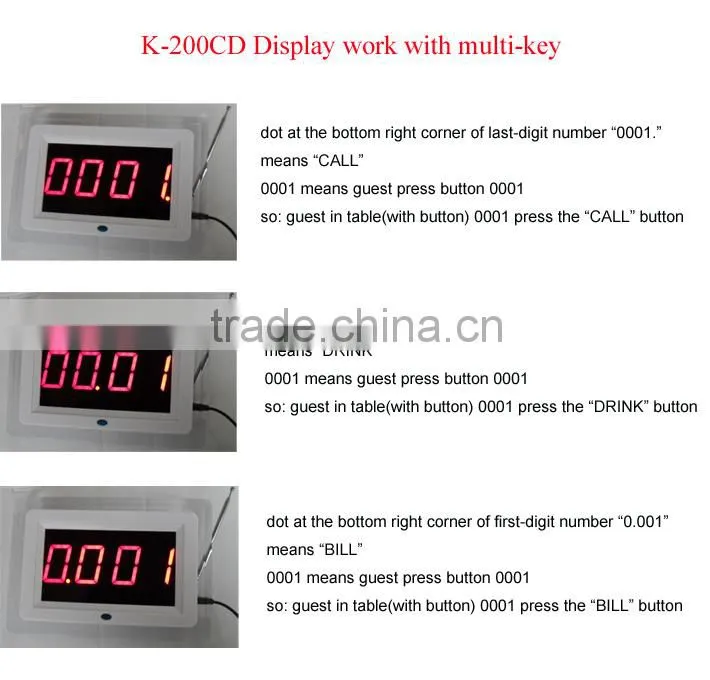

5. Can show different service type by fixed, slow flash, flash
6. Can save 10 calling information in turn, and apply in basic service places.
7. Calling Alert: sounds or music.

Technical parameters:

Working voltage: DC12V~18V
Working current: <20mA
Working Frequency: 433.92mhz
Dimension:   225*165*40mm

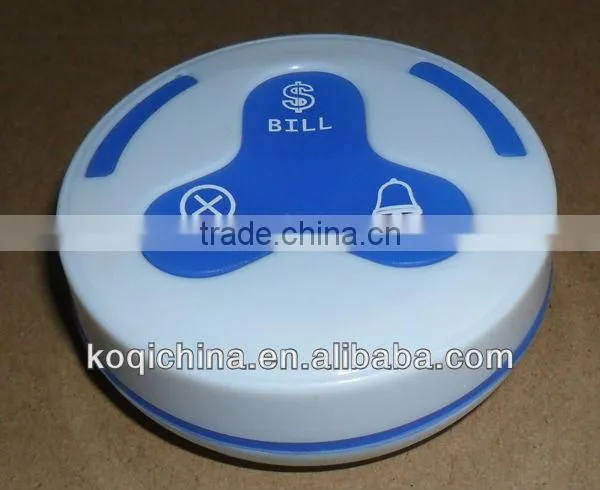

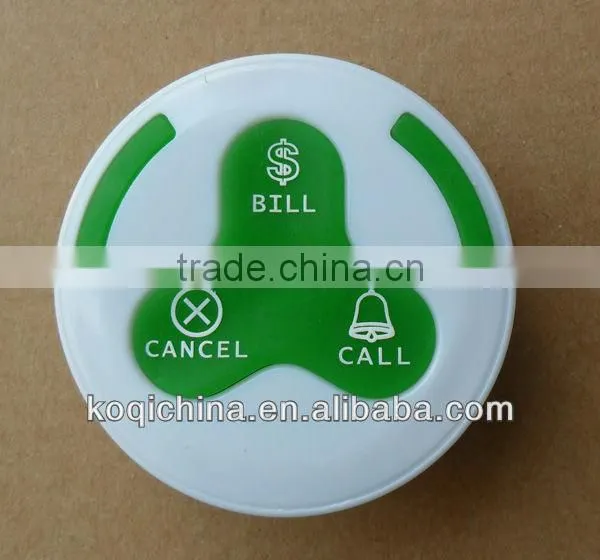

Specification of Wireless Calling System K-H3-W

1. 100% Water-proof
2. Work with our receiver to combined the wireless calling system
3. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.
4. 3-key button: Call, Bill, Cancel
5.Color:
5 colors blue;white,yellow, gray ,black for case
5 color blue ;green;yellow;red;black for silicon dioxide
Technical Parameter:
Working voltage: DC12V
Working current: ≤35mA
Use Frequency: 315MHz±75k
Transmitted Power: ≤20mW
Transmitted Distance>300m in open area
Size: 60*60*22mm

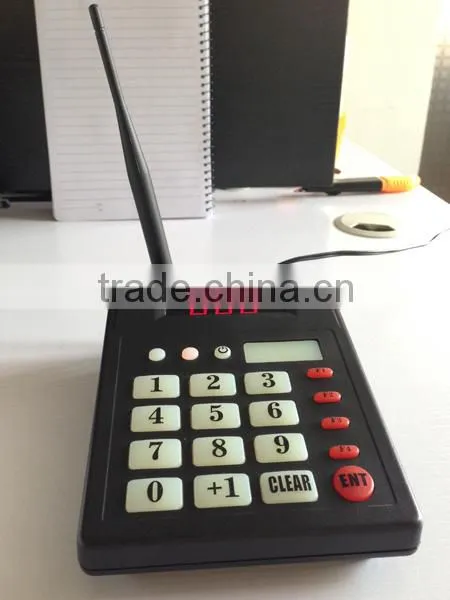

Specification of Wireless Calling System Transmitter Keypad K-999

1. With high strength ABS material cover

2. Using digital code technology and the function is steady and reliable

3. It can call 999 persons

4. With power on/off function

5. With Clear and Next function

6. Can work with K-236, K-300plus, K-302, K-402, K-402NR, K-2000, K-800, K-4-C, K-4-D, K-10 receiver

7. Technical parameters:

Signal Range: >500m in open are

Working voltage: DC12V

Working current: <20mA

Working Frequency: 433.92MHz

Dimension:160*118*60mm

Each Package include:

1x transmitter keyboard K-999

1x power plug

1x USB cable

Delivery time: sample or small order within  3 days and bulk order within one week.

Payment: T/T, Western union, Paypal, Escrow

Warranty:1 year

FAQ

Applications

Wireless Paging System can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of Wireless Calling System ?

1. Wireless receiver, installed on the count

2. Call button, installed on each table

3. Keyboard

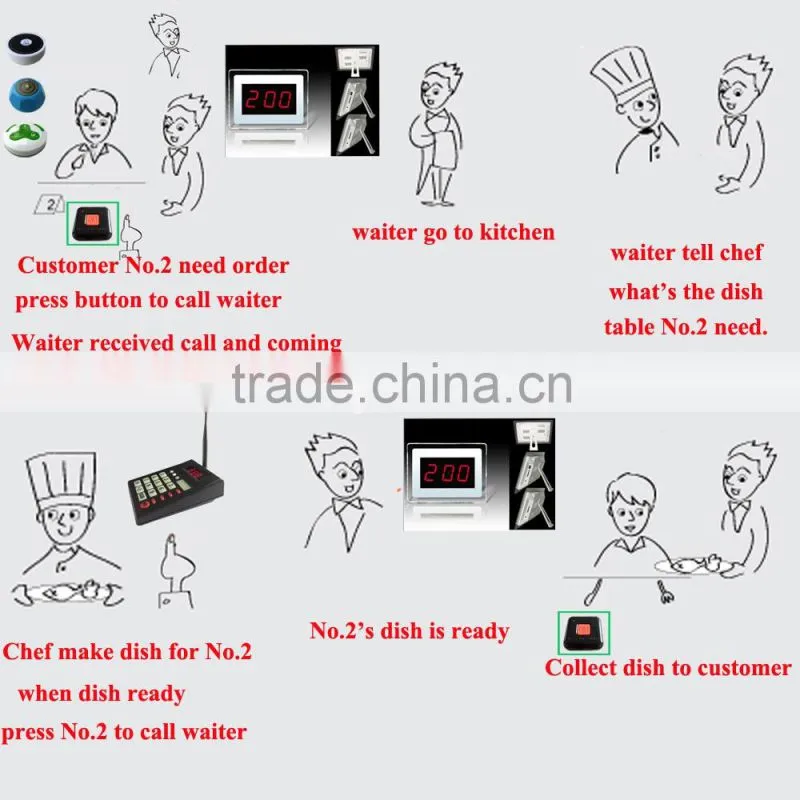

How does the Wireless Calling System Work?

1. After your customer gets seated the waiter informs them that when they require service, all they need to do is press the button sitting on their table.

2. When the customer presses the call button on their table, their table number will appear on the reciever with ringing. Waiters then head over to the table to take the order of the customer promptly and quickly.

If you are interested in Wireless Calling System , please feel free to contact me. I will reply to you in 24 hours, thanks.
